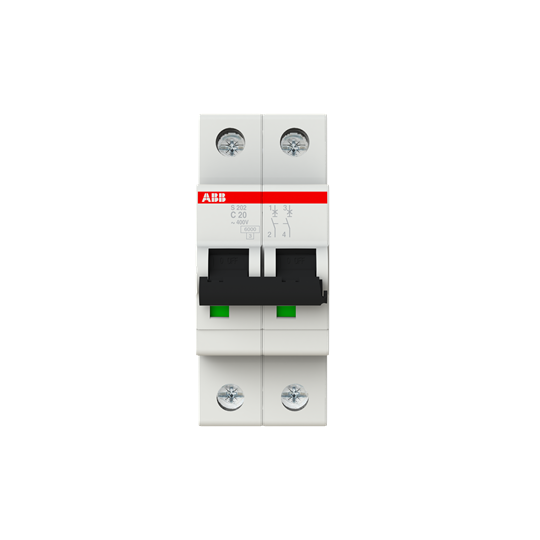

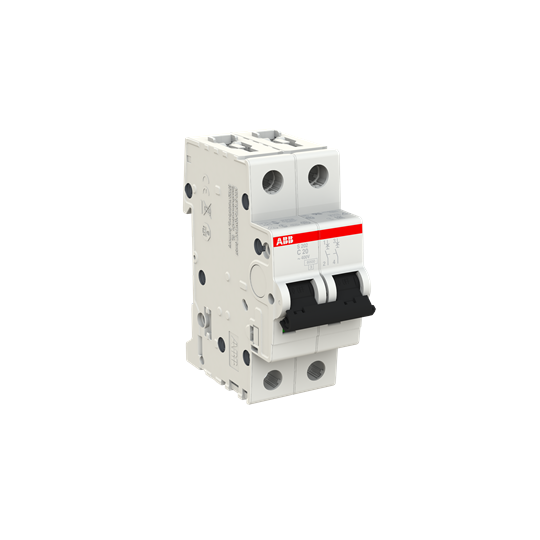

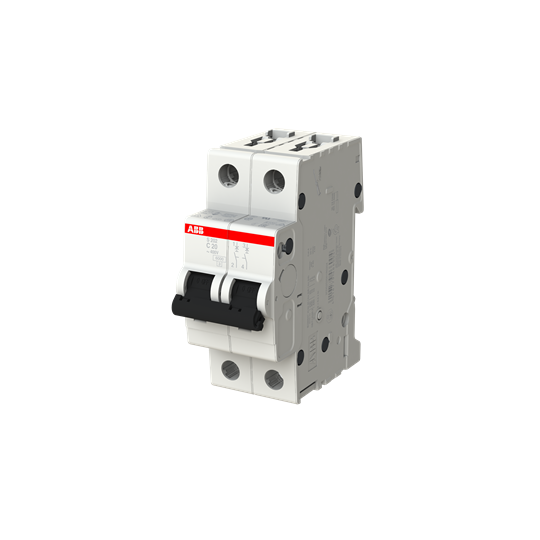

ABBLV S202-C20 MINI CIRCUIT BREAKER

Manufacturer: ABB Low Voltage | Catalog # 2CDS252001R0204 | Cooper Electric Part # 1363701
$160.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet CAD Drawing #1 Product Brochure
Miniature Circuit Breaker, Supplementary Protector, Rated Current 20 Amps, 2 Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve C, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
For Medium Magnetic Start Up Currents
Conductor Size
18-4 AWG
Current
20 Amp
Frequency
50/60 Hz
Interrupt Rating
6 kAIC
Mounting Type
DIN Rail
Number of Poles
2 Pole
Operating Temperature
55 degrees C
Standard
EN 60898-1IEC,EN 60947-2UL 1077,IEC
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Range
5 - 10 A Magnetic and 1.13 - 1.45 A Thermal
Trip Type
C-Curve, Thermal Magnetic
Type
Supplementary
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019170671
Environmental Conditions
28 Cycles with 90 - 96% at 55 C and 95 - 100% at 25 C
GTiN
00662019170671
Housing Material
Insulation Group II, RAL 7035
Product UPC
66201917067

Dimensions

Height
88 mm
Length
69 mm
Width
35 mm

Certifications & Compliance

Green Distribution CO2
0.024 kg
Green End-of-Life CO2
0.275 kg
Green Manufacturing CO2
2.549 kg
Green Total CO2
34.812 kg
Green Transport-to-DC CO2
0.201 kg
Green Use-Phase CO2
31.763 kg
