L-VIL FXP1703XL 3FT FG PINNACLE PLATFORM LADDER XL RAIL PROTOP TYPE IA 300LB RATED FIBERGLASS PLATFORM LADDER PROTOP TYPE IA 300 LB RATED

Manufacturer: Louisville Ladder | Catalog # FXP1703XL | Cooper Electric Part # 1362696
$183.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Louisville 3 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 36" extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1703XL Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Duty Rating
Type IA
Load Capacity
300 lb
Material
Fiberglass
Number of Steps
3
Rung Type
Standard
Size
3
Style
Pinnacle Pro Platform
Type
Pinnacle

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865134592
Product UPC
72886513459
Weight
23 lb

Dimensions

Closed Height
3 ft
Closed Width
24 in
Platform Height
34.146 in
Platform Width
14-3/4 in
Features

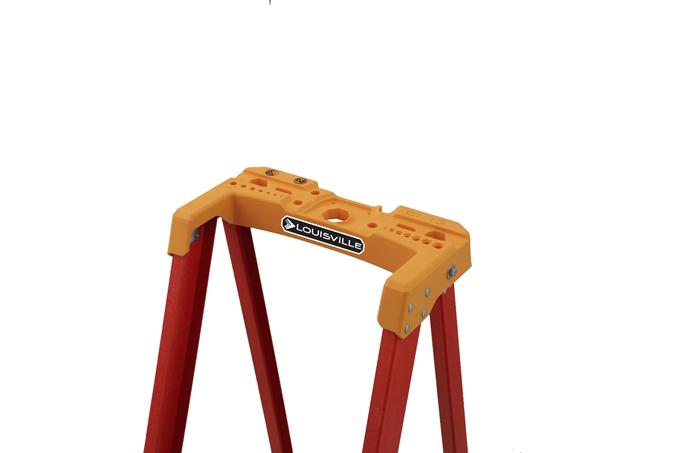

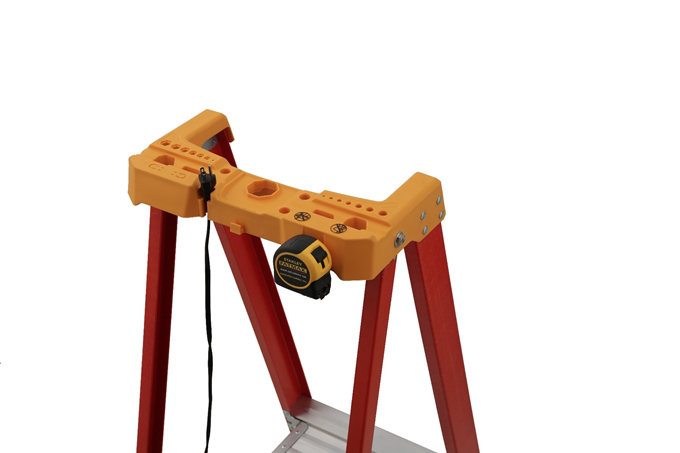

  • ProTop With Multiple Tool Slots And Magnet
  • 30% Larger Platform Area For Added Comfort And Safety
  • Extended Handrail From Top To Platform
  • Shox Impact Absorption System
  • DaBoot Slip-resistant Boot
  • Double-Rivet Step Construction
  • Wide Back Braces
  • ANSI Certified
  • OSHA Certified
