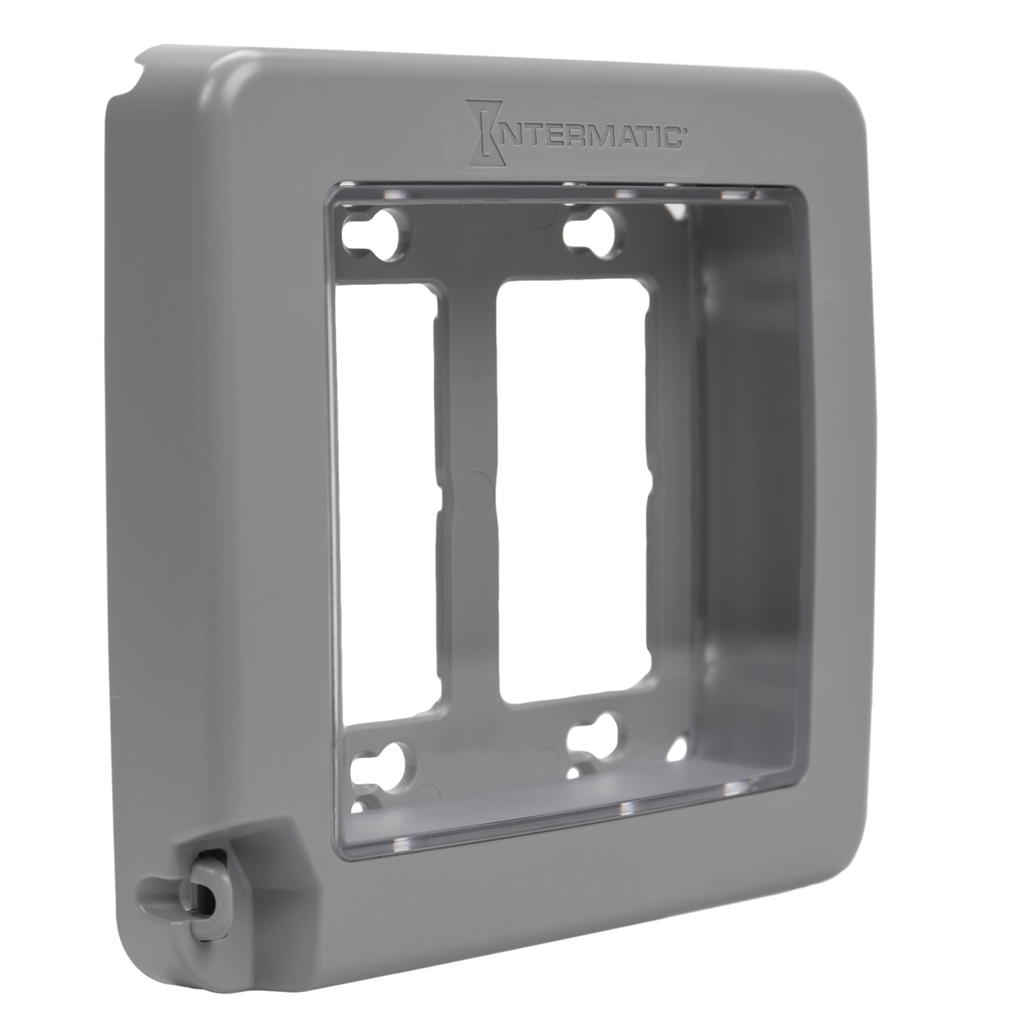

INT-MAT WP6200G Low-Profile Plastic

Manufacturer: Intermatic, Inc | Catalog # WP6200G | Cooper Electric Part # 1361142
$38.37/ea
ea
Log in or register to view your price, purchase history, and more!
Single Double
Yes No
Standard Low Profile
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Outdoor Signage, Athletic Fields, Agricultural, Residential, Commercial
Cover Material
Plastic
Material
Plastic
Mounting Type
Vertical
Number of Gangs
2 Gang
Size
1.5 x 5.5 x 5.6 in
Temperature Rating
-60 degrees F
Type
16-Configuration, Square, Low Profile, Extra-Duty

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275149960
Color
Gray/Clear
GTiN
00078275149960
Product UPC
07827514996
Shape
Square

Dimensions

Depth
1-1/2 Inch
Height
5-1/2 Inch
Length
5-1/2 Inch
Warranty Length
1 yr
Width
5.609 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 100% Paintable surface
  • Complies with 2020 NEC Article 314.15 for wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 0.19\" dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Warranty: 1-year limited
  • NEW Faster Installation, Pre-Set for GFCI, No insert required
