LEV 16651-W WH REC SGL DEC 2PO 3WI

Manufacturer: Leviton Mfg Co | Catalog # 16651-W | Cooper Electric Part # 1360054
$23.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

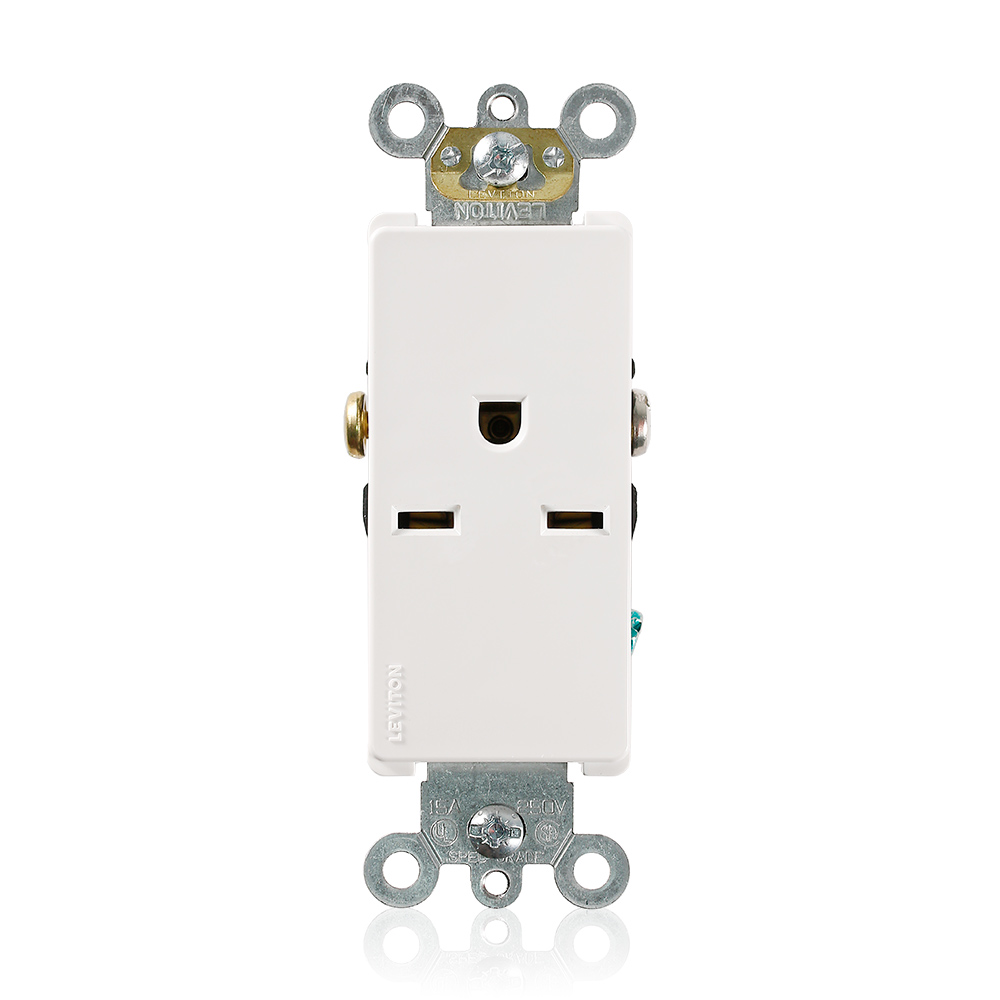

Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
15 Amp
Applications
Commercial use
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1-1/2 hp
Material
Thermoplastic
Mounting Type
Wall Box, Flush, Screw
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Single Outlet,Straight Blade
Voltage
250 Volt
Wire Count
3,3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477474662
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477474662
Product UPC
07847747466

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
UL
Country of Origin
Please Contact Customer Service
Color Variations
  • Ivory
NEMA
  • 6-15R
