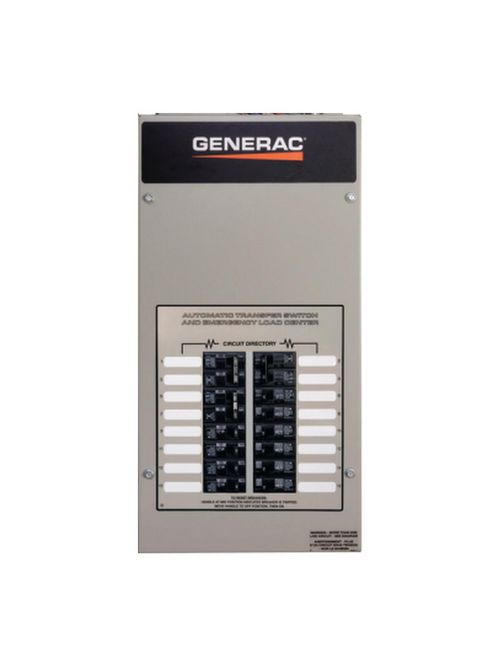

GEN RXG10EZA1 10-circuit 50 Amp ATS

Manufacturer: Generac Power Systems Inc | Catalog # RXG10EZA1 | Cooper Electric Part # 1359767
$1,084.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning
The Generac pre-wired switch is designed to operate with 9-16 kW air-cooled generators. This transfer switch has an integrated load center for picking up the emergency circuits. it is especially useful where the main service is large and only a portion of the building load will be served by the generator. It is available with a built-in 10 or 16 circuit load center to supply only those circuits that are essential during an emergency. All standard and load center transfer switches are CUL Listed and suitable for use in optional standby systems. (NEC702)

Technical Information

Amperage
50 Amp
Conductor Size
14-1/0 AWG
Connection Type
Lug
Number of Poles
2 Pole
Power Rating
12000 W
Type
Pre-Wired Automatic
Voltage
120/240 Volt
Wire Size
1/0-14 AWG Conduc-r Lug, 2/0-14 AWG Neutral Lug and Ground Lug

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471072341
GTiN
00696471072341
Housing Material
Steel
Product UPC
69647107234
Weight
75 lb

Dimensions

Height
27-1/2 Inch
Warranty Length
5 yr
Width
35 in

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
USA
Features
  • 10-circuit 50 Amp ATS - NEMA 1 CUL
  • All pre-wired switches are housed in a steel NEMA 1 enclosure, with electrostatically applied and baked powder paint
  • The heavy duty generac contactor is a UL recognized device, designed for years of service
  • The controller at the generator handles all the timing, sensing, and exercising functions
  • Multi listed for use with 1 in. standard, tandem, GFCI and AFCI breakers from Siemens, Murray, Eaton and Square D for the most flexible and cost effective install
