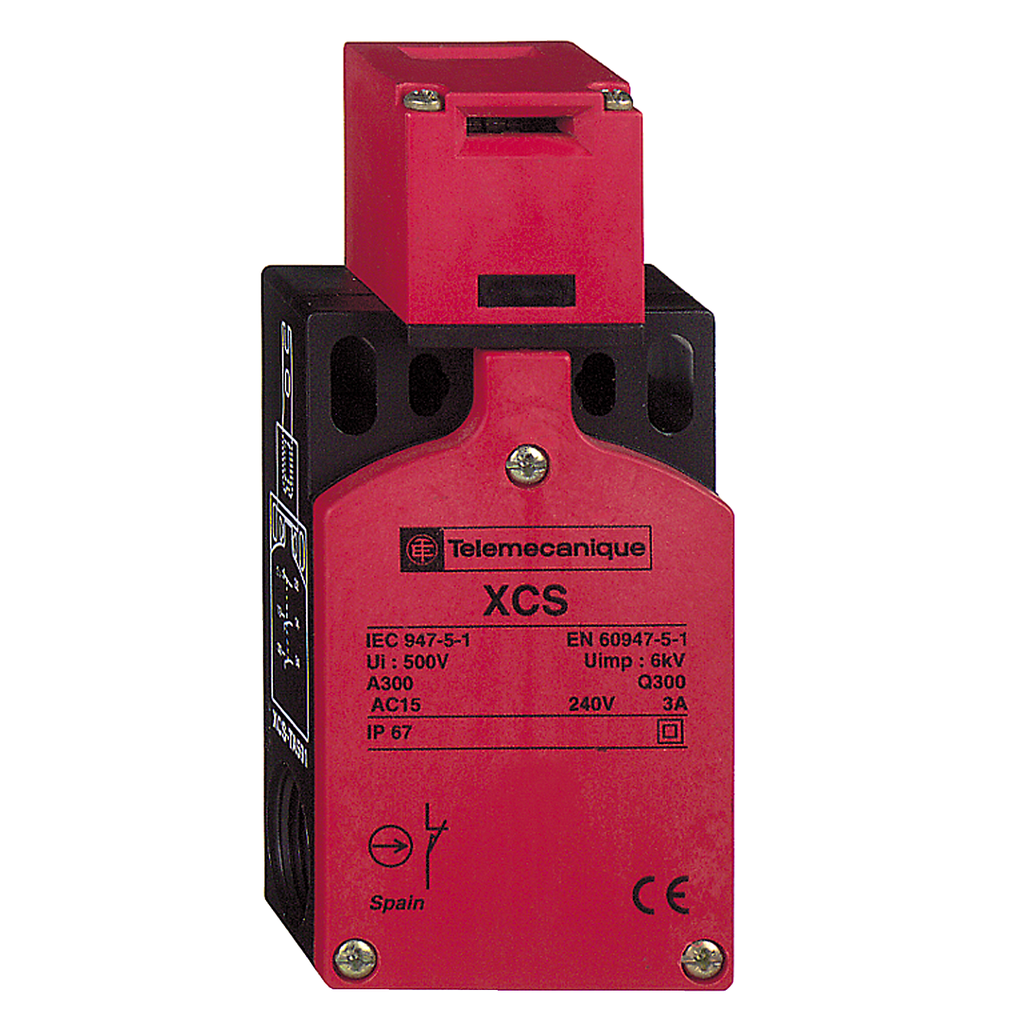

Product image for TES XCSTA591 Safety switch, TES Safety switches XCS, plastic XCSTA, 1 NC + 2 NO, slow break, 1 entry tapped Pg 11
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCSTA591 Safety switch, TES Safety switches XCS, plastic XCSTA, 1 NC + 2 NO, slow break, 1 entry tapped Pg 11

Manufacturer: TES Electric | Catalog # XCSTA591 | Cooper Electric Part # 1357181
$80.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x Pg 11 cable gland entries, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Technical Information

Action
Slow-break, break before make
Applications
KEY OPERATED TURRET HEAD
Body Material
PA (polyamide)
Cable Entry
2 entries tapped Pg 11
Contact Configuration
1 NC + 2 NO
Head Type
Key operated turret head
Material
Plastic
Net Weight
0.16 kg
Number of Poles
3 Pole
Operating Cycles
10 cyc/mn For Maximum Durability
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
TERMINAL 1 X 0.5...2 X 1.5 MMA WITH OR WITHOUT CABLE END
Type
Safety switch
Voltage
6 A 120 Volt, AC-15, A300 EN/IEC 60947-5-1-3 A 240 Volt, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSTA

General Product Info

12-Digit UPC
389110786036
GTiN
03389110786033
Product UPC
78590183929
Weight
0.35 lb

Dimensions

Chain Cable Diameter
7-10 mm
Depth
30 mm
Height
115-115 mm
Warranty Length
18 mth
Width
52 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
