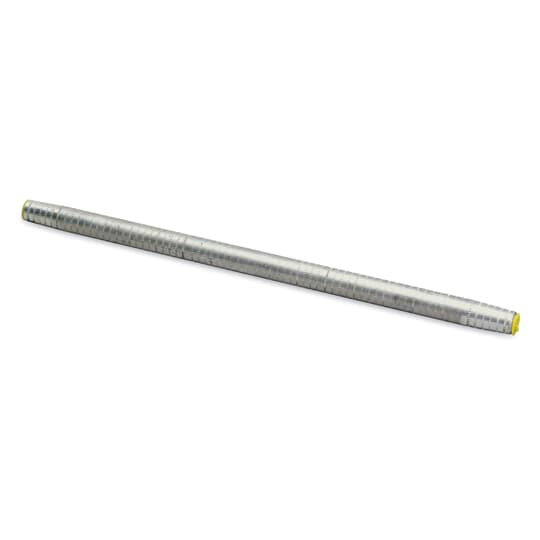

Product image for Blackburn RC2BB Tension Splice
Image thumbnail 0

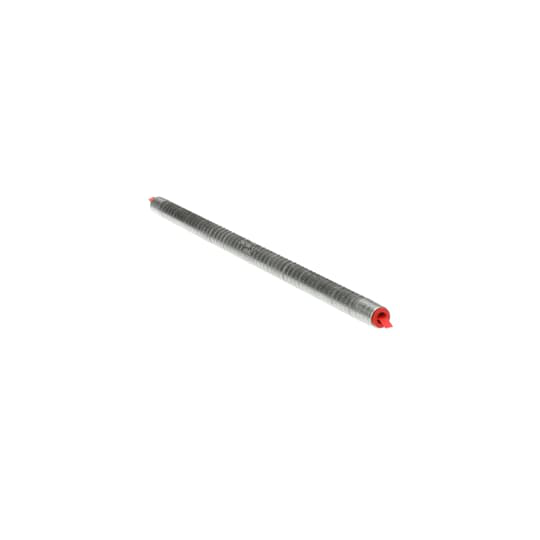

Image thumbnail 1
Image thumbnail 2

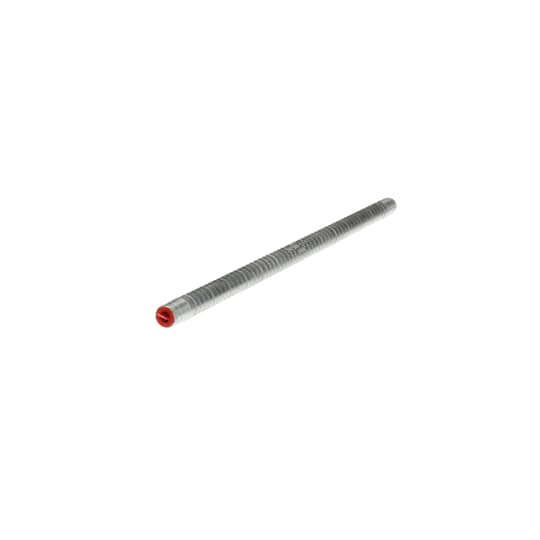

Image thumbnail 3

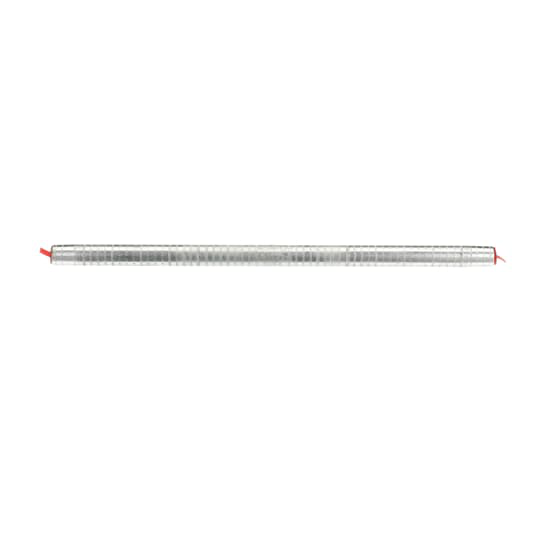

Image thumbnail 4
Email

Blackburn RC2BB Tension Splice

Manufacturer: Blackburn / Thomas & Betts | Catalog # RC2BB | Cooper Electric Part # 1356735
$48.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Aluminum Compression Connector Sleeve Conductor (STR) 2 ACSR, 2 AAAC, 2 5005, 2 AAC MECH DIES: 5/8 - 1, W-245, 635, BG HYDR DIES: B30EA, B24EA, 245, 687 Single, Full Tension Sleeve

Technical Information

Applications
Distribution Compression Connector
Conductor Size
2-6/1 AWG, 7/1 AWG ACSR, 7/2 AWG AAAC, 7/2 AWG AAC
Conductor Type
ACSR, AAAC, AAC
Connection Type
Compression
Connector Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
13-5/8 inch
TC Connection
Compression
Type
Full Tens

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786051175
GTiN
00783786051175
Product UPC
78378605117

Dimensions

Length
13-5/8 Inch
Features
  • Standards compliant. Meets ANSI C119.4 requirements - withstands 95 percent of conductor rated breaking strength.
  • Internal end chamfer enables easy conductor insertion and prevents sharp edge contact with conductor.
  • External end taper provides conductor stress relief, ease of stringing and corona protection.
  • Center stop ensures proper conductor positioning.
Notes
  • OD58 Dies are interchangable with those listed for O-52.
