3M 7000133396 3M™ Scotchlok™ Heat S

Manufacturer: 3M | Catalog # 7000133396 | Cooper Electric Part # 1356681
$2.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

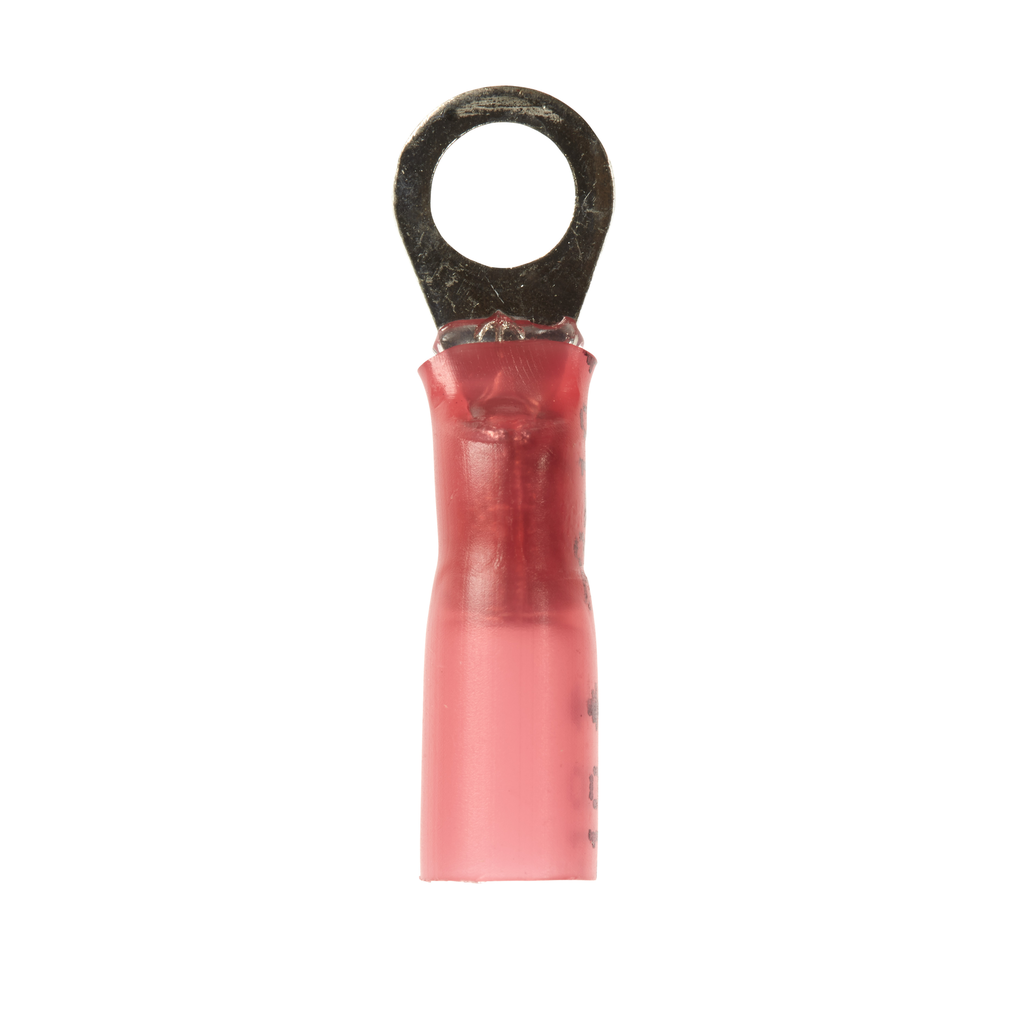

3M™ Scotchlok™ Ring Tongue with heat shrink insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified.

Technical Information

Barrel Type
Brazed
Conductor Size
22-18 AWG
Insulation Material
Heat Shrink
Material
Heat Shrink
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
10
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Bell End

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589144
Color
Red
GTiN
00051128589144
Product UPC
05112858914

Dimensions

Length
1 Inch
Overall Length
1.0 in
Thickness
0.03 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
