STI CD401 FIRESTOP DEVICE

Manufacturer: Specified Technologies Inc | Catalog # CD401 | Cooper Electric Part # 1356633
$27.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

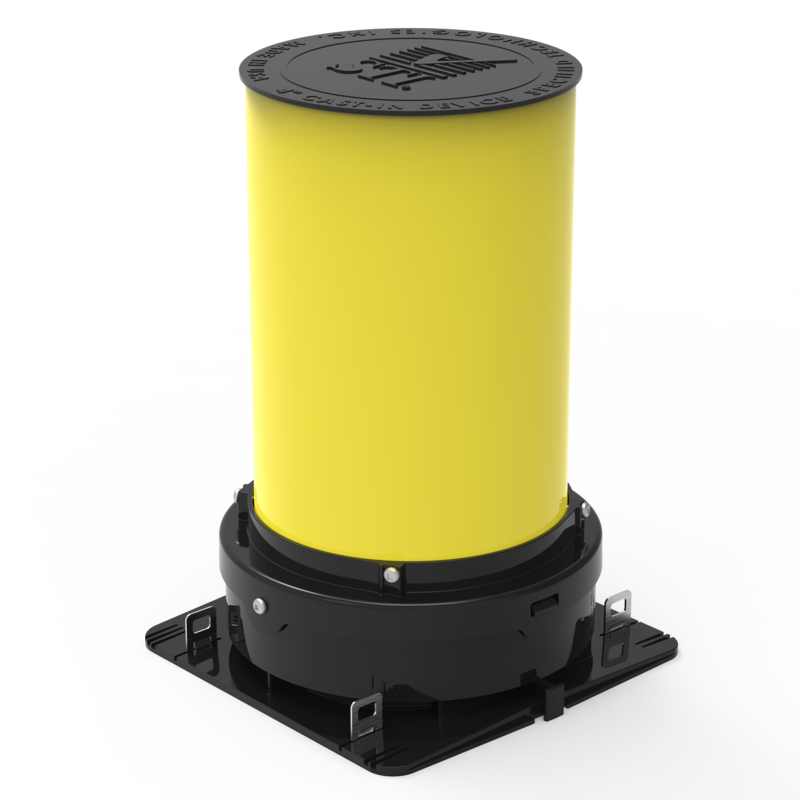

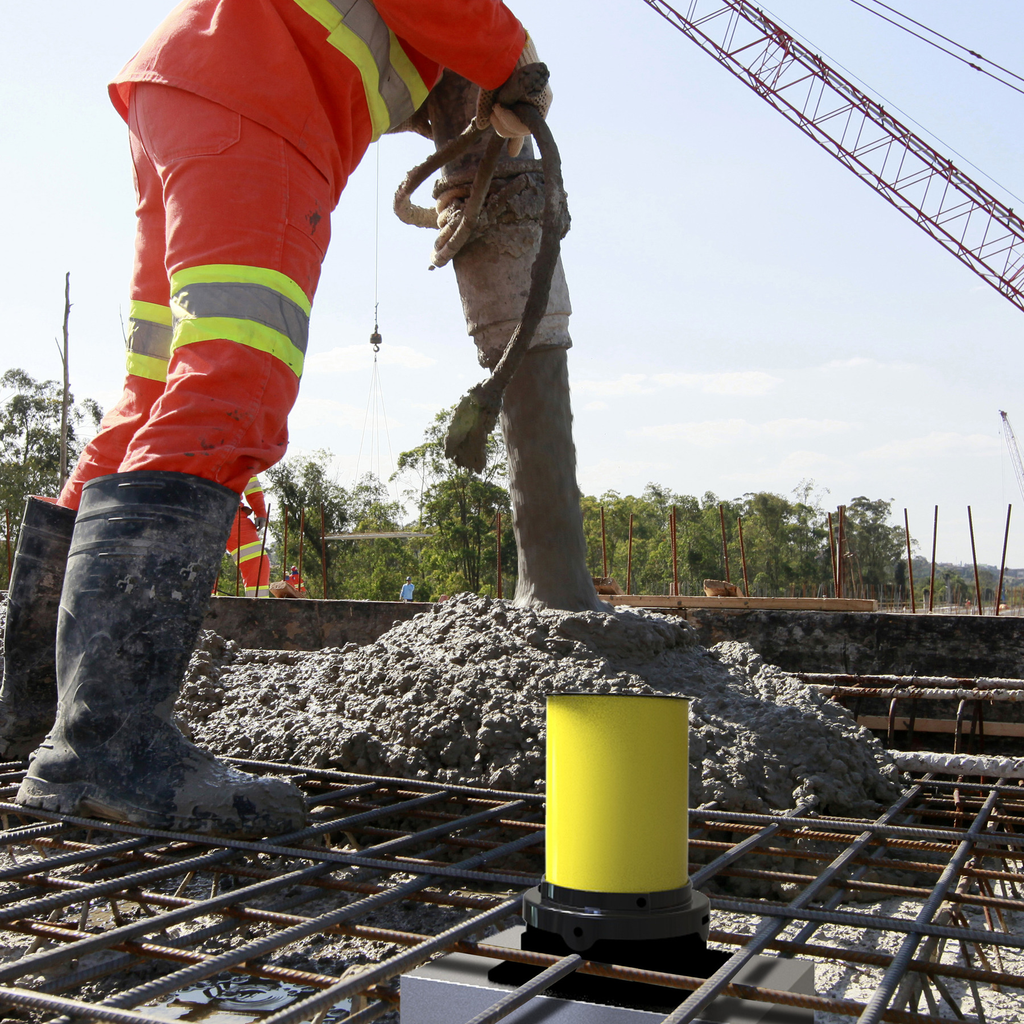

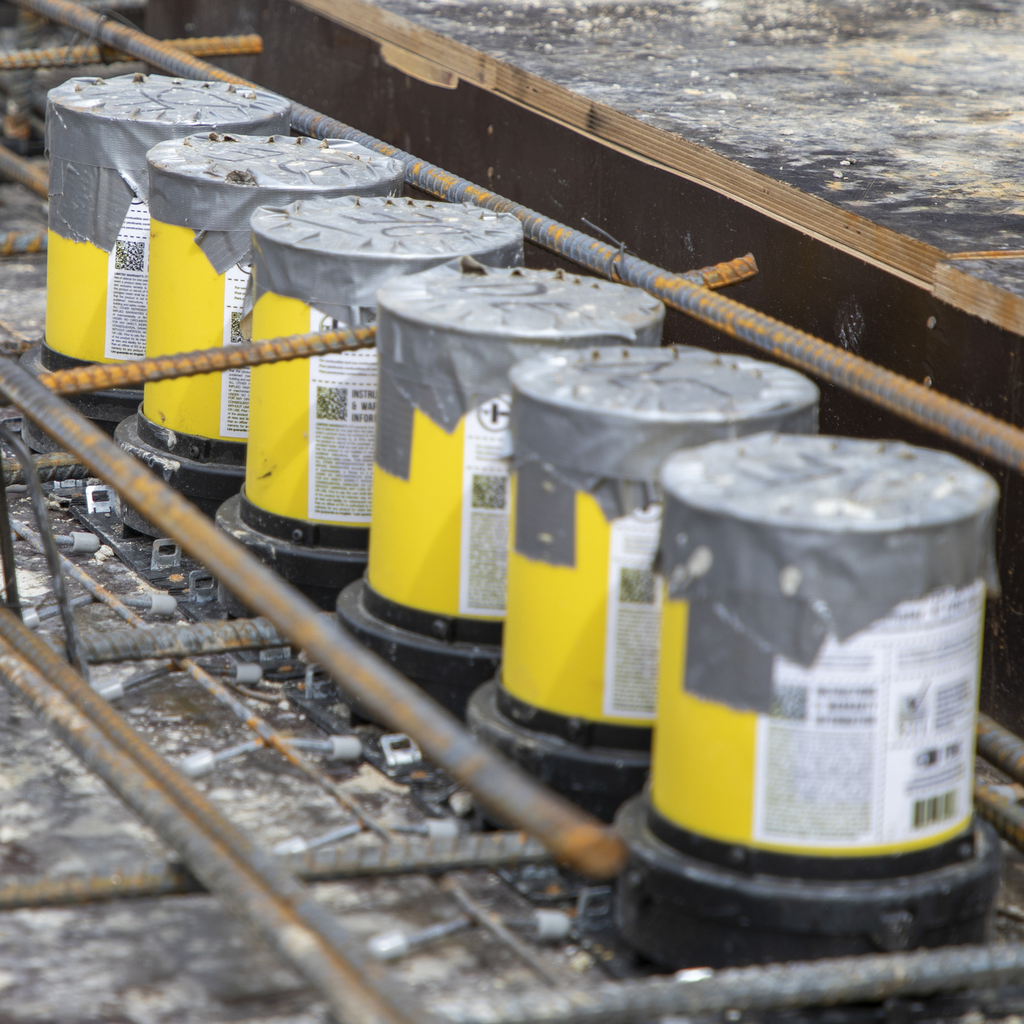

Eliminate coring and firestop before the concrete pour with SpecSeal CID Cast-In Firestop Devices. SpecSeal Cast-In Devices are a sleeve, concrete core and firestop rolled into a single device. 4 in. (102 mm) Trade Size Cast-In Firestop Device . For Maximum 10 in. (254 mm) Thick Concrete

Technical Information

Material
Polyethylene,Polypropylene
Type
Sleeve Device

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573344088
Color
Black,Yellow
Product UPC
73057334408
Weight
1.84 lb

Dimensions

Height
10 Inch
Length
6-3/4 Inch
Width
6.75 in

Certifications and Compliance

Country of Origin
USA
Properties
  • Finished Product
  • Intumescent Low VOC
  • No Expiration
  • Smoke Barrier
  • Water Resistant
Features
  • The firestop system shall be a single component, molded plastic sleeve supplied with a fully encapsulated, tamper-proof integral firestop system and smoke sealing gasket. The device shall be installed in accordance with the manufacturers written instructions. The device shall also be certified by Underwriters Laboratories Inc. (UL) as a through-penetration firestop device when tested to ASTM E814 (UL1479) and CAN/ULC-S115 for up to a three hour rating.
  • Tested for combustible and non-combustible penetrants., Variety of accessories available for any field condition., Incorporates built in smoke and water resistant seal., Usable in concrete floors as thin as 2-1/2 in.
  • Saves money by eliminating core drilling
  • Saves time. No firestopping step required
  • Provides pre-installed fire and smoke sealing
  • Provides added protection against transient water
  • Adapts to a wide variety of construction conditions
  • Pipes can be installed from top or bottom

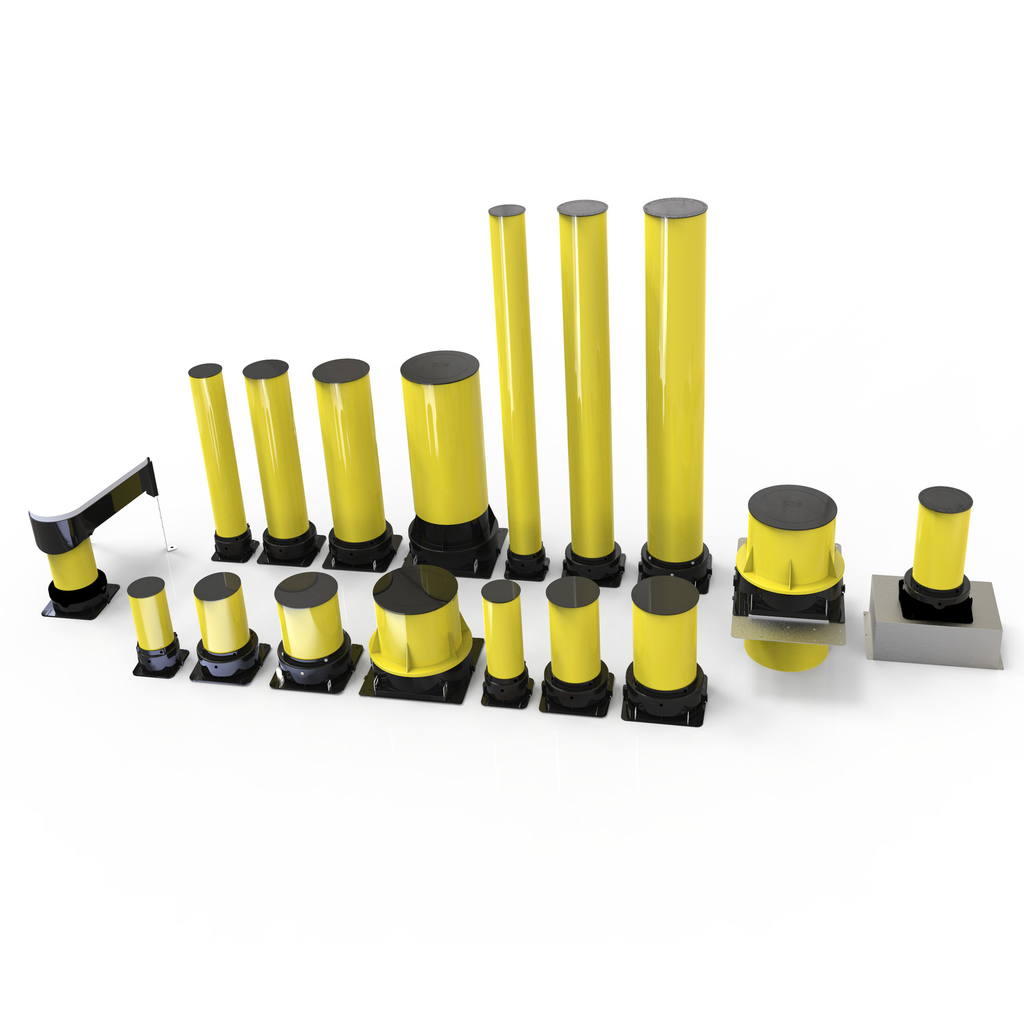

  • Four heights for a greater range of concrete depth
Standards and Certifications
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: No
  • UL Certified Firestop: UL Certified
  • FBC System Compatible: Yes
Construction Type

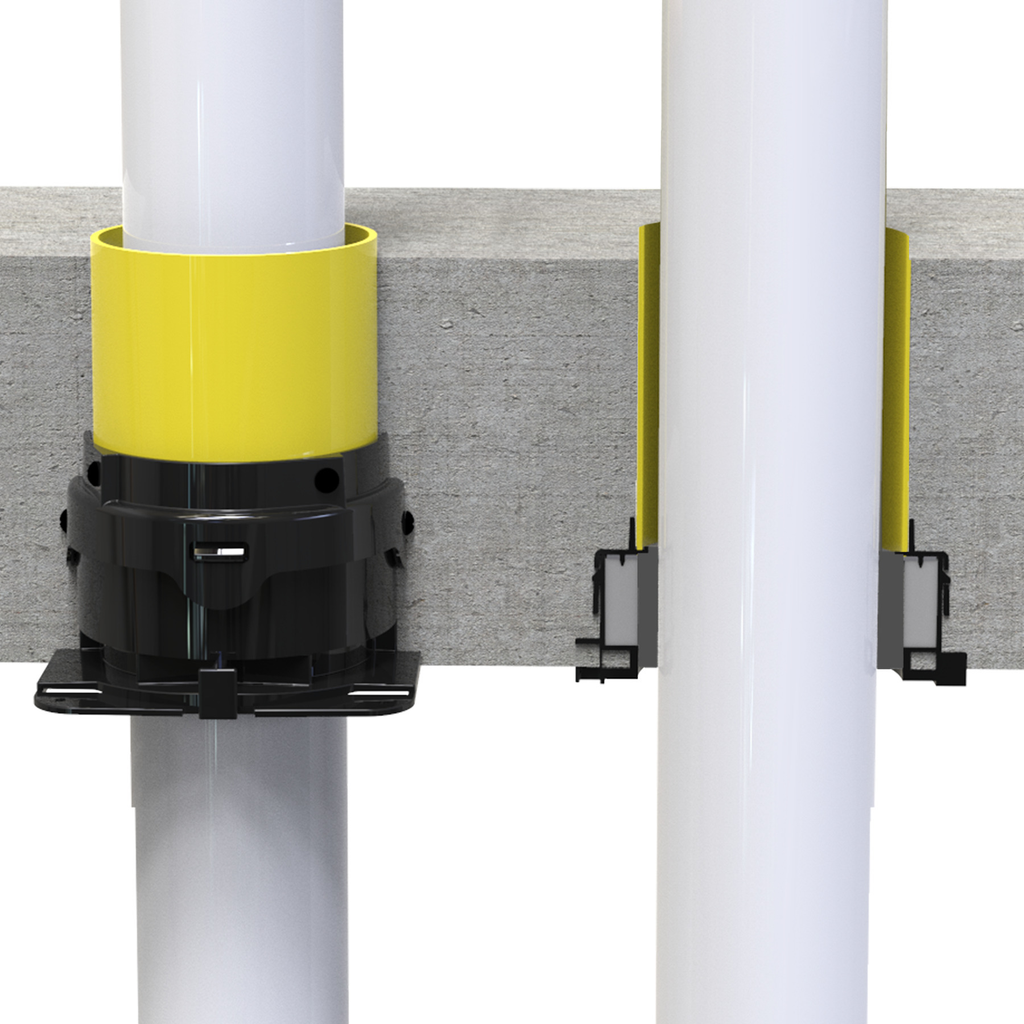

  • SpecSeal Cast-In Firestop Devices are engineered for use in concrete floors to form firestopped openings for various through penetrating items including plastic or metal pipes, cables, and insulated pipes. Used in Concrete Constructions
Applications
  • Blank Openings
  • Cables Duct
  • Metal Pipe. Multi Penetration
  • Plastic Pipe
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • SpecSeal Cast-In Firestop Devices are engineered for use in concrete floors to form firestopped openings for various through penetrating items including plastic or metal pipes, cables, and insulated pipes.
