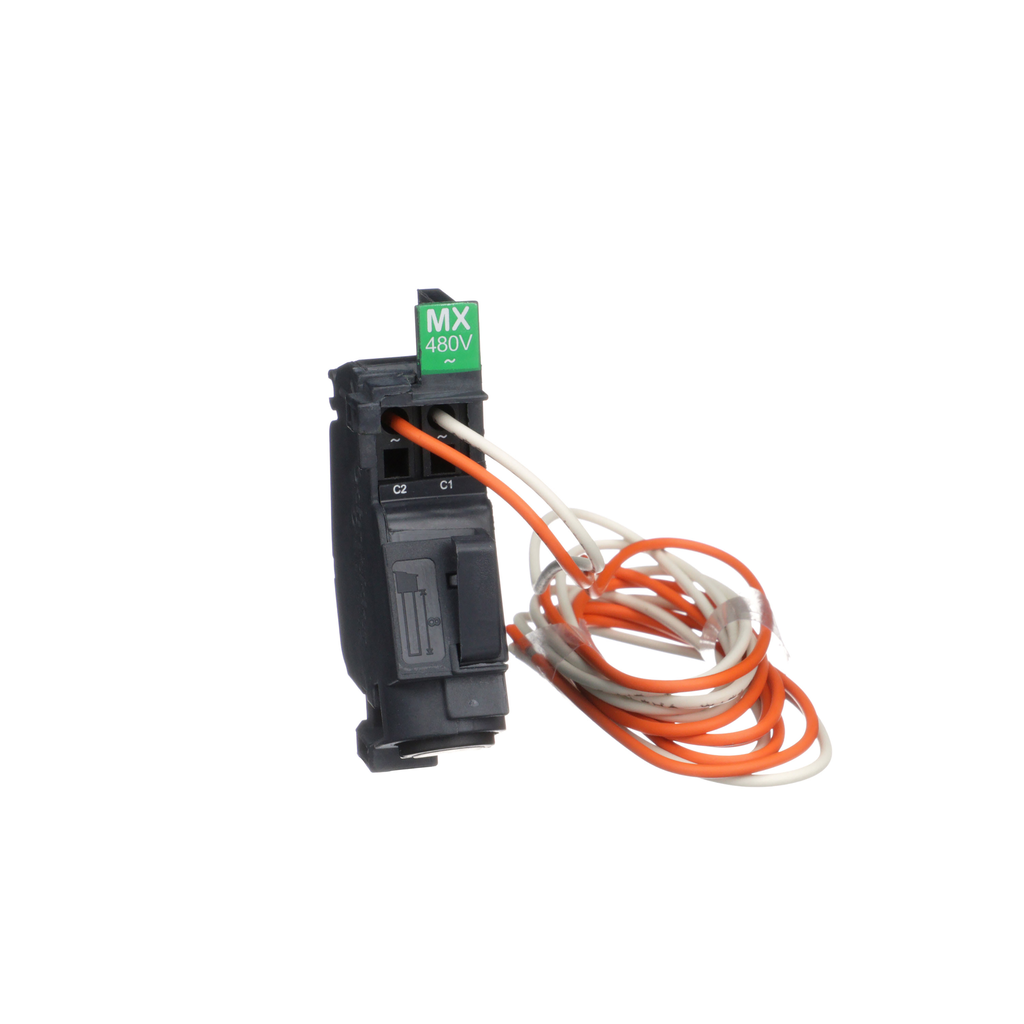

Square D LV426866 Pre-Wired Shunt Trip Release

Manufacturer: Square-D / Schneider | Catalog # LV426866 | Cooper Electric Part # 1356553
$1,074.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 380/415 VAC 50 Hz or 440/480 VAC 60 Hz rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Technical Information

Actuator
N/A
Applications
SHUNT TRIP (MX)
Enclosure
N/A
Frame
N/A
Mounting Type
Clip-On
Operating Temperature
N/A
Reset Type
N/A
Strip Length
8 mm
TC Connection
N/A
Trip Range
N/A
Trip Type
N/A
Type
ACCESSORY
Voltage
480 VAC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
606485413221
GTiN
03606485413228
Product UPC
60648541322

Dimensions

Cable Length
3.28 ft
Length
1 m

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
