SQD XB4BD912R10K Complete potentiom

Manufacturer: Square-D / Schneider | Catalog # XB4BD912R10K | Cooper Electric Part # 1356303
$108.45/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
1 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

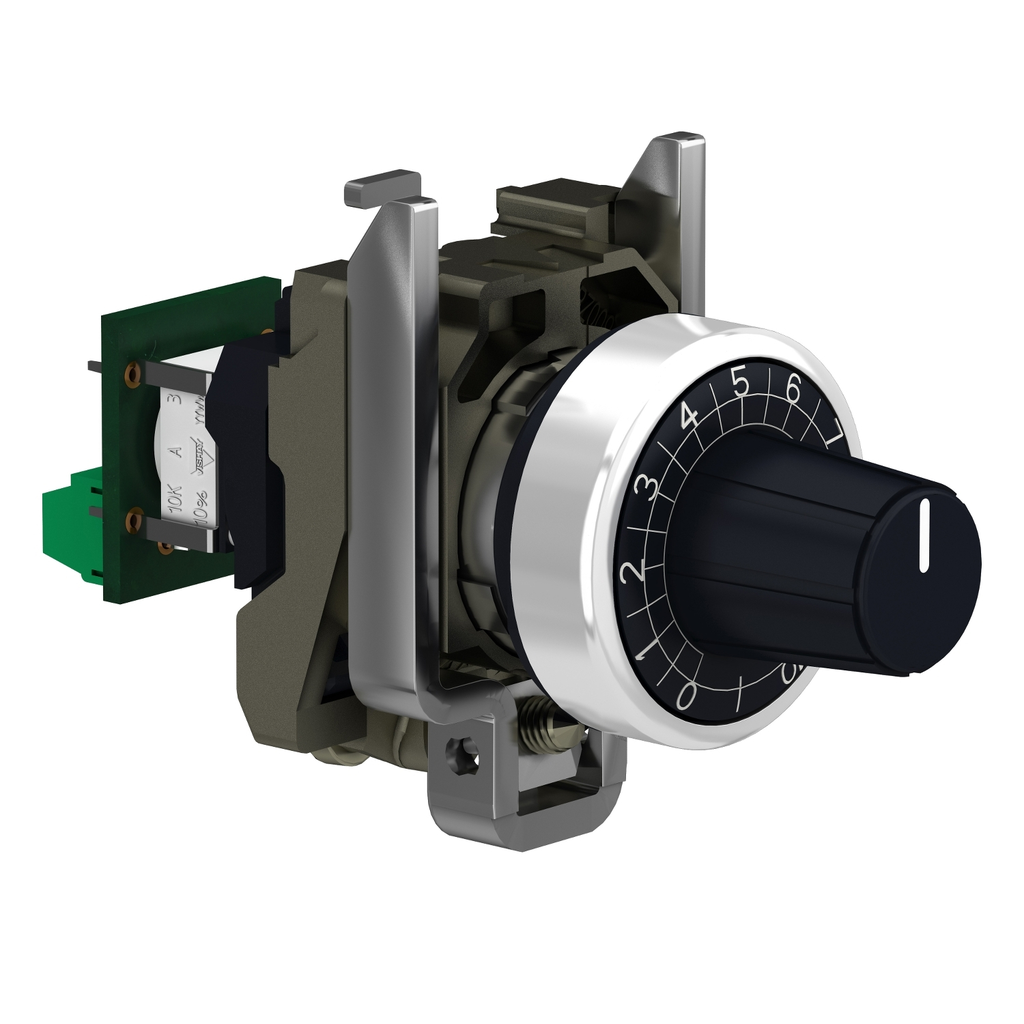

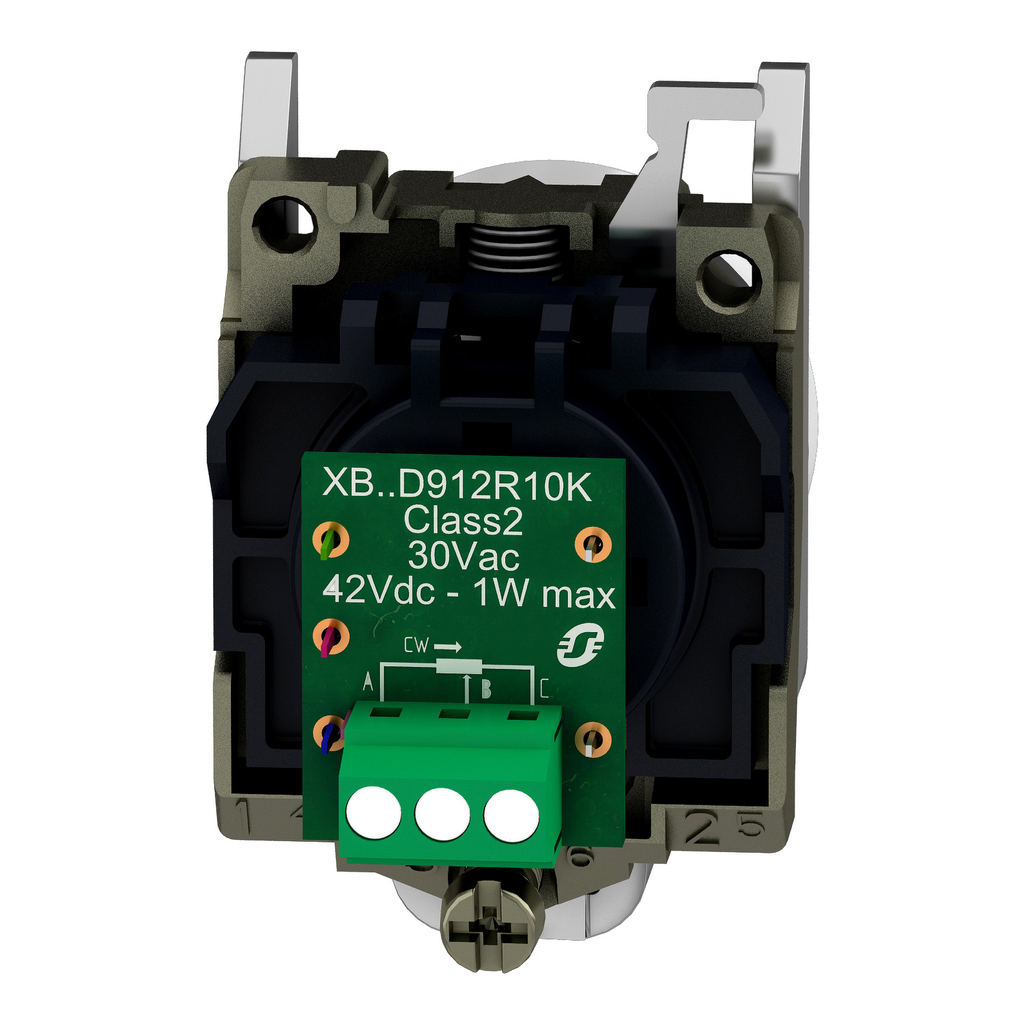

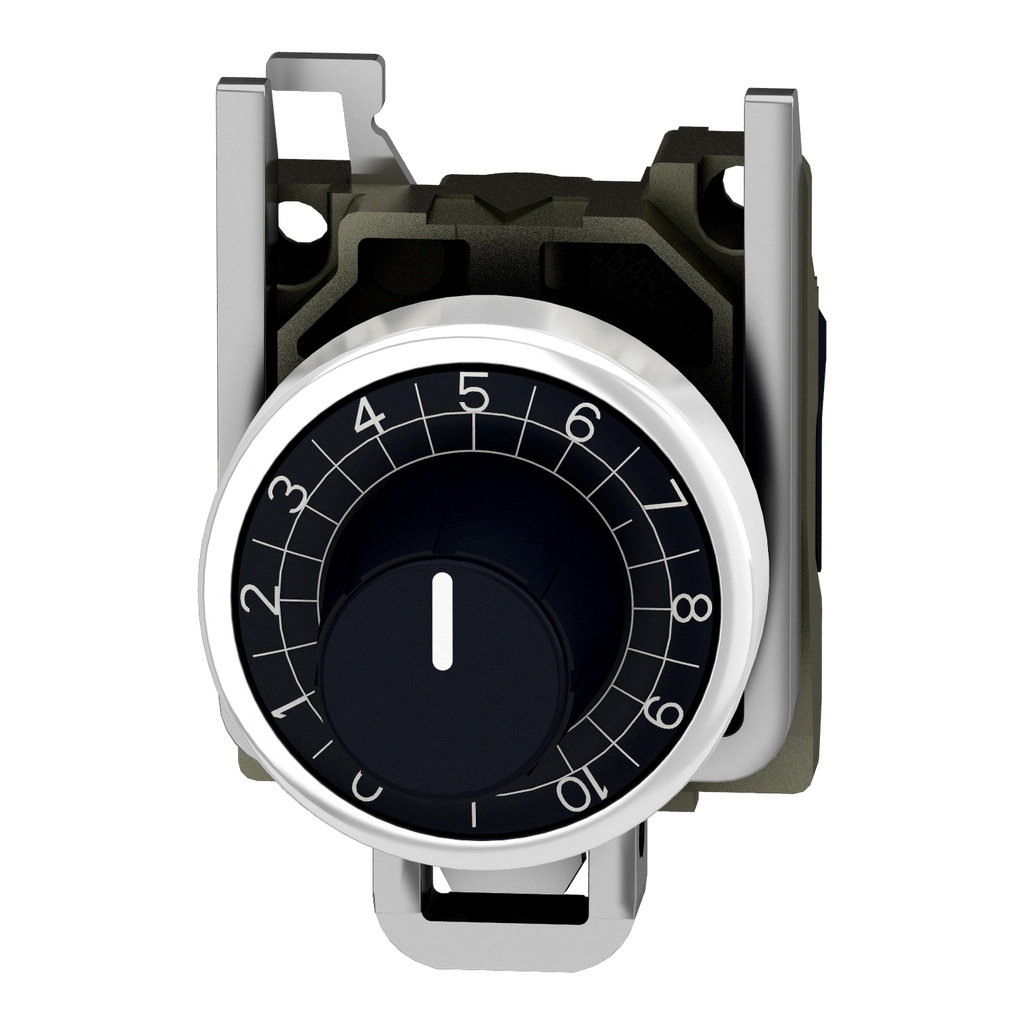

This Harmony XB4 potentiometer has a resistance of 10k?. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.

Technical Information

Bezel Material
Chromium Plated Metal
Head Type
Standard
Material
Cermet
Net Weight
0.095 kg
Rated Power
1 W
Standard
CSA C22.2 No 14,IEC 60947-1,UL 508
Storage Temperature
-40-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480985013
GTiN
03606480985010
Product UPC
78590153029
Weight
0.095 kg

Dimensions

Height
47 mm
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cross Sell Products
  • NSYS3D4420
  • XAPD1201
  • XB4FA31
Spare Part Products
  • ZB4BD912
