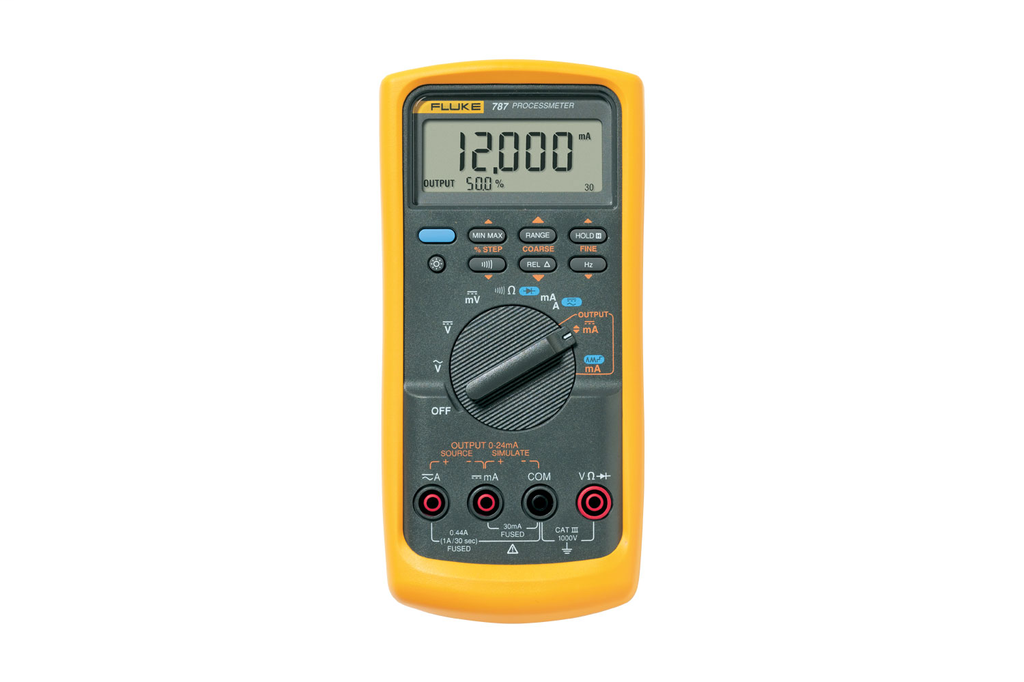

Fluke FLUKE-787 1000 VAC/VDC 30 mA Process Meter

Manufacturer: Fluke | Catalog # FLUKE-787 | Cooper Electric Part # 135547
$968.16/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Fluke 787 ProcessMeter.. Double your power. A maintenance and calibration tool that will be at home in every instrumentation technician's tool box, the Fluke 787 ProcessMeter. combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop current with 0.05 accuracy and 1 microamp resolution.

Technical Information

Accuracy
0.1% Rdg + 1 LSD (VDC) V
Amperage
0-1 Amp
Applications
Measuring electrical parameters and supplying steady or ramping current to test process instruments
Enclosure
Hard plastic
Enclosure Material
Hard Plastic
Frequency
19.999 kHZ
Operating Temperature
-20 To 55 degrees C
Resistance
To 40 MO Ohm
Storage Temperature
-40 To 60 degrees C
Type
Digital Multimeter
Voltage
0-1000 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969048323
GTiN
00095969048323
Product UPC
09596904832
Weight
369 g

Dimensions

Warranty Length
3 yr
Key Features
  • DMM and a loop calibrator in one rugged, handheld tool
  • Provides a precision 1000 V, 440 mA True-RMS digital multimeter designed to meet 1000 volt IEC 1010 CAT III standards
  • Features a clear LCD with backlight; 4,000 counts (30,000 counts for DC current)
  • Performs frequency measurements to 20 kHz
Product Overview
  • Fluke 787 ProcessMeter doubles your capabilities but not your cost
  • The Fluke 787 ProcessMeter combines a DMM and a Loop Calibrator in one rugged, handheld tool, for about what you would expect to pay for a loop calibrator alone. It's a maintenance and calibration tool that will be at home in every instrumentation technician's tool box. Based on the trusted Fluke 87 DMM, the 787 adds the ability to measure, source, and simulate dc loop current with 1 microamp resolution and 0.05% accuracy. It puts a complete solution for troubleshooting and calibrating current loop applications in the palm of your hand so you can get more information, faster and easier.
  • So if you're tired of having to track down a calibrator, lugging around two tools, and switching back and forth, get the convenient solution for doubling your power. The 787 ProcessMeter from Fluke.
  • Want a built in 24-Volt loop supply and 250 ? HART resistor? Consider the Fluke 789.
Includes
  • AC70A Alligator Clips
  • C81Y Protective Yellow Holster with Flex-Stand™
  • One 9V Alkaline Battery
  • Quick Reference Guide
  • TL75 Safety-Designed Test lead Set
Other Useful Features
  • Provides Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
  • Displays simultaneous mA and % of scale readout
  • Provides 20 mA DC current source/loop calibrator/simulator
  • Manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
  • Externally accessible battery for easy battery changes
  • 1000 V overload protection on V, ohms, frequency
  • 150 V overload protection on mA, backed up by 440 mA 1000V fuse
