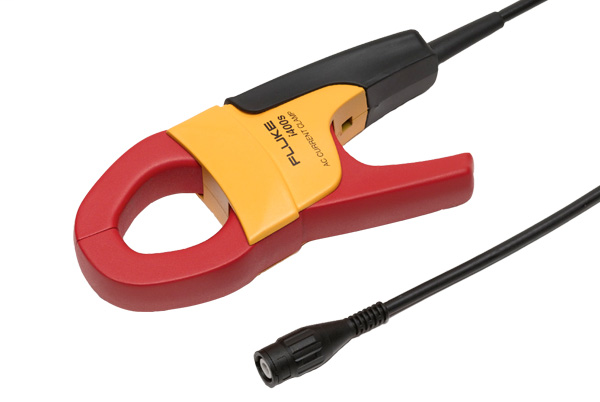

Product image for Fluke I400S 400 Amp AC Current Clamp
Email

Fluke I400S 400 Amp AC Current Clamp

Manufacturer: Fluke | Catalog # I400S | Cooper Electric Part # 135541
$412.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Current Clamp, Ac; Ac Current Range 0.5 To 40/5 To 400 Ampere; Frequency Response 5 Hz To 10 Khz; Maximum Conductor Diameter 1.25 Inch; Output Level 10 / 1 Millivolt/ampere; 8.2 Ft Cable With Bnc/banana Adapter Connection; Accuracy 2 Percent

Technical Information

Accuracy
2 %
Amperage
1000 Amp
Applications
Measure current in conjunction with your scope or power quality meter
Enclosure
Hard plastic
Enclosure Material
Plastic
Type
Current Clamp

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969268585
Color
Black,Red,Yellow
GTiN
00095969268585
Product UPC
09596926858
Weight
114 g

Dimensions

Diameter
1-1/4 Inch
Length
12.91 Inch
Warranty Length
1 yr
Compatible Products
  • Fluke 110 Plus
  • Fluke 114
  • Fluke 117
  • Fluke 123
  • Fluke 123/S
  • Fluke 124
  • Fluke 124/S
  • Fluke 434 II Basic
  • Fluke 434 Series II
  • Fluke 435 Series II Basic
  • Fluke 435 Series II
Features
  • High safety AC Current Clamp with BNC output
  • Companion to your scope or power quality meter to measure up to 400 A AC
  • Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
  • Specially designed to offer maximum utility in a compact shape
  • Take accurate current readings without breaking the circuit
  • Soft non-slippery overmold handle
  • Optional PM9081/001 BNC/Banana adapter for DMM's
  • Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
  • Max. conductor Ø 32 mm
Overview
  • Fluke current clamps extend the current ranges of digital multimeters, power quality analyzers, and portable oscilloscopes and are available for both AC and AC/DC environments. The Fluke i400s is specially designed to offer maximum utility in a compact shape and is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating.
