LEV O4C20-MDW WH MLTTECH CEIL MNT 2

Manufacturer: Leviton Mfg Co | Catalog # O4C20-MDW | Cooper Electric Part # 1354730
$269.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

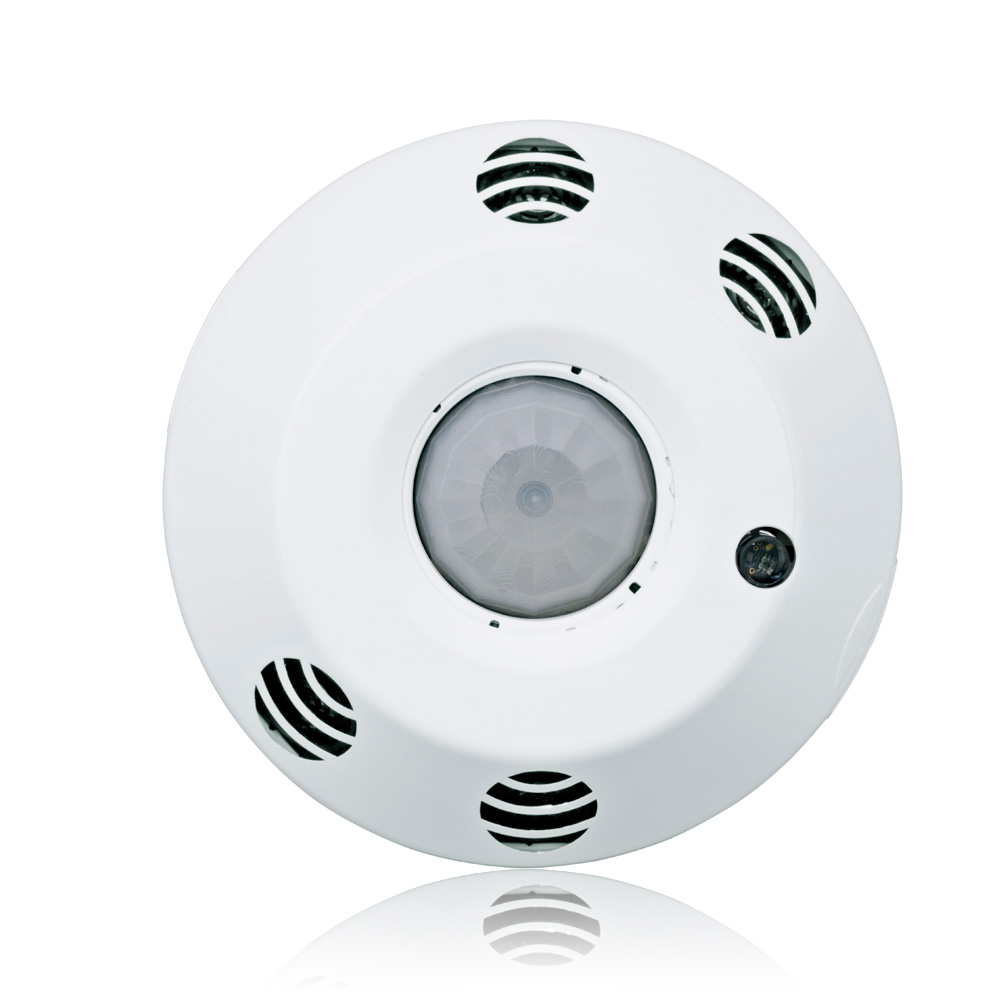

Vacancy Sensor, Provolt™ lighting control, 2 Pole, Line Voltage, 8'-12' Ceiling, Multi-Technology, 2000 sq ft, Ambient Light Override, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC & Title 20/24 Compliant. Color: White.

Technical Information

Amperage
60-30 mA
Applications
For Commercial
Coverage
2000 sq-ft
Frequency
50/60 Hz
Grade
Commercial
Lens Type
Extended Range Black
Mounting Type
Ceiling
Number of Poles
2 Pole
Operating Temperature
0 degrees
Sensor Type
Passive Infrared/Ultrasonic
Size
2.39 in
Standard
UL 924 Listed
Temperature Rating
32 - 104 degrees F
Type
Multi-Technology, Line Voltage, Dual Relay
Voltage
120-277 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Provolt

General Product Info

12-Digit UPC
078477642702
Color
White
GTiN
00078477642702
Product UPC
07847764270

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
  • Vacancy Sensing Time Outs (Delayed OFF Timer, Exclusive Walk-through Feature, False Detection Timer: (M/T) PIR scans for movement and shuts lights off after 31 minutes of vacancy preventing false triggers from HVAC systems (U/S), Time delay and saved settings are protected during power outages and will return to the last known state
  • Output short circuit protection
  • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
  • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
  • Test Mode for simplified commissioning
  • Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
  • Industry-exclusive fail-safe circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
  • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
  • Lenses on PIR models are easily replaceable and color-coded red (mid range) for contractors and end-users to easily identify lenses from the ground
  • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays (Red - Blinks when infrared is detecting motion and solid during device malfunction, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed, Green - Blinks when U/S is detected)
