Burndy YAV6CL Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-5 Flex/ AN-6 Flex, 1/4" Stud, Short Barrel, Tin Plated

Manufacturer: Burndy | Catalog # YAV6CL | Cooper Electric Part # 1353778
$1.90 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-5 Flex/ AN-6 Flex, 1/4" Stud, Short Barrel, Tin Plated.

Technical Information

Applications
For use with 0.50 inch FM8 conduit bodies. Seals and protects.
Barrel Type
Straight, Seamless
Cable Size
5, 6 AWG Flex
Conductor Size
6 AWG
Connection Type
Ring Terminal
Die Code
39
Material
Copper
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Strip Length
1/2 in
Stud Size
0.25 in
Type
Ring Tongue

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810025598
Color
Black,White
Finish
Electro-Tin Plated
GTiN
00781810025598
Product UPC
78181002559

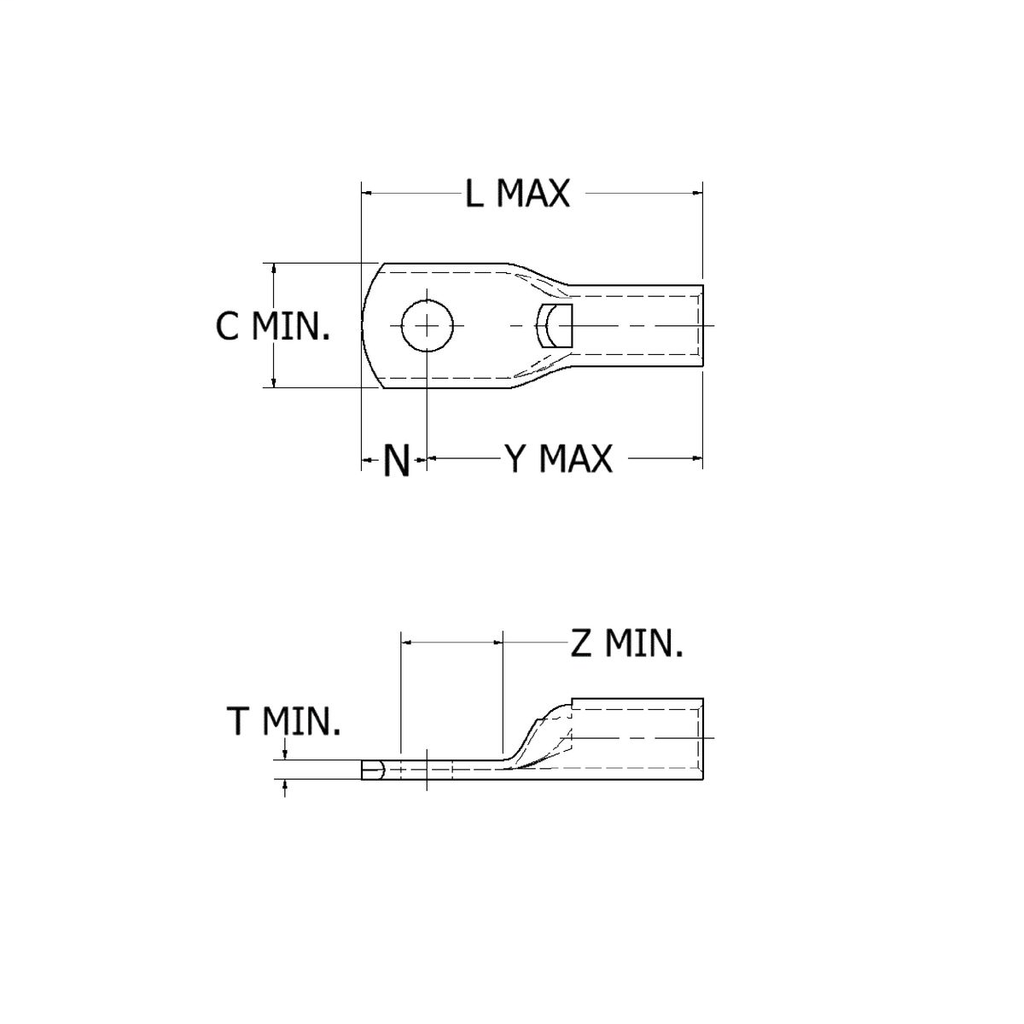

Dimensions

Height
0.3 Inch
Hole Size
7 mm
Length
1.31 Inch
Overall Length
1.31 in
Width
0.48 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
  • Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
  • Double thick tongue structurally a very strong terminal tongue
  • Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
  • Internally bevelled barrel for easy cable entry, especially for flexible conductors
  • Inspection hole provides easy visual check for proper conductor insertion
  • Electro-tin plated for a long lasting durable corrosion resistance
