BUR KPA8CUPRK Scrulug POS Qty1=5pcs

Manufacturer: Burndy | Catalog # KPA8CUPRK | Cooper Electric Part # 1353696
$9.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Alloy Scrulug Terminal,Conductor Range (Main/Primary): 14 AWG Solid - 6 AWG Stranded,Installation Torque:35 IN-LB.

Technical Information

Applications
For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks
Conductor Size
10 AWG
Material
Copper
Number of Holes
1 Hole
Number of Screws
1
Plated?
No
Plating Type
Unplated
Screw Type
Slot
Stud Size
#10
Temperature Rating
194
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Burndy
Sub Brand
SCRULUG

General Product Info

12-Digit UPC
781810359969
Finish
Copper
GTiN
00781810359969
Product UPC
78181035996

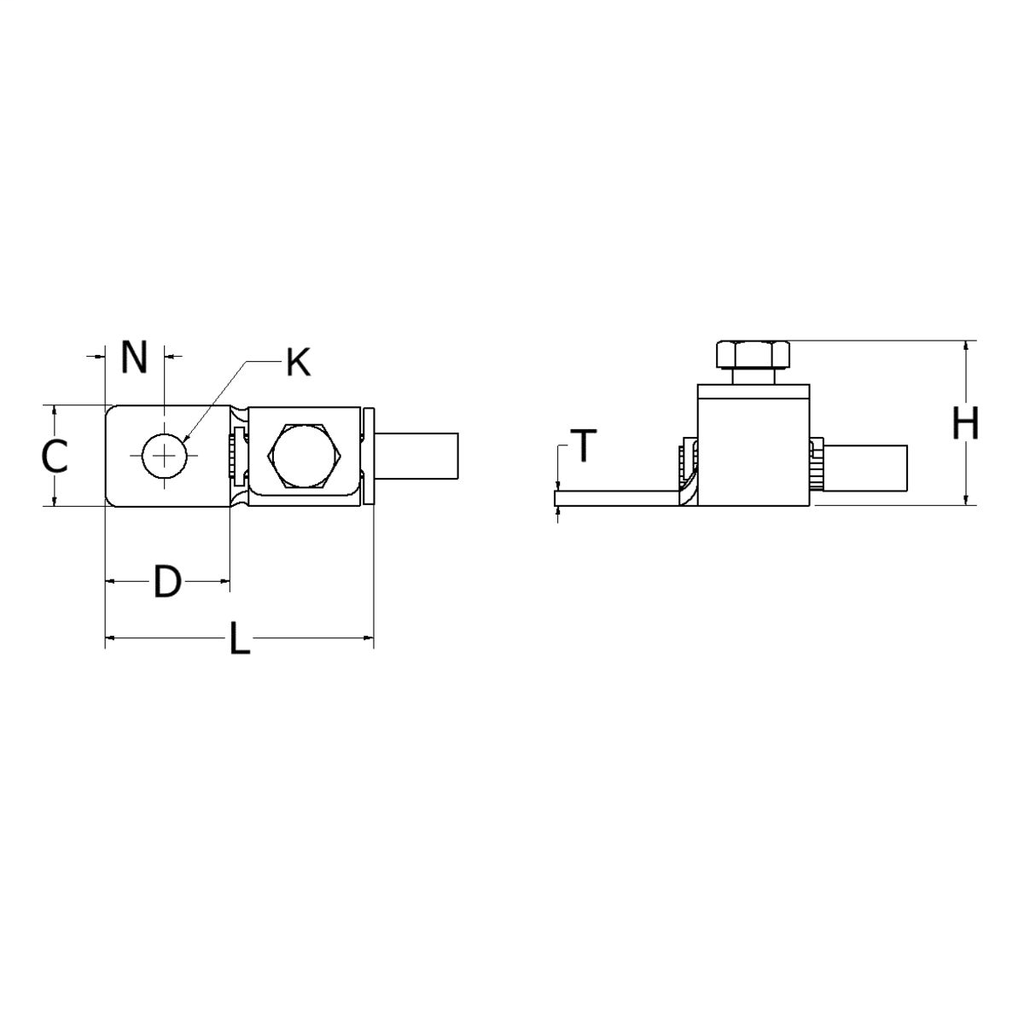

Dimensions

Height
0.81 Inch
Hole Size
5 mm
Length
1.04 Inch
Pad Width
0.38 in
Thickness
4/57 in
Width
0 mm

Certifications and Compliance

Buy American Compliant
Y
CSA
No
Features
  • Features: High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Plain Copper Finish, One Piece Design, Superior Torque And Pull Out Performance, Convenient Range Taking Design, Reduces Catalog Numbers, One Catalog Number Accommodates several Conductor Sizes, High Conductivity Copper Alloy, Long Lasting, Reliable Contact, Compact Design, Easy To Use, Slot Robertson Screw, Hex Head, Hex Socket Bolt, No Special Installation Tools Required, Eliminates Over-Torquing/Potential Conductor Damage, Width: 0.38 IN Pad, Thickness: 07 IN, Installation Torque: 35 IN-LB, Stud Size: #10, Height: 0.81 IN, Number Of Screws: 1, Dimension N: 0.24 IN, Package: Clamshell, Wire Strip Length: 15/32 IN, Length: 11 IN, Dimension D: 0.51 IN, Set Screw Type: Slot Robertson
