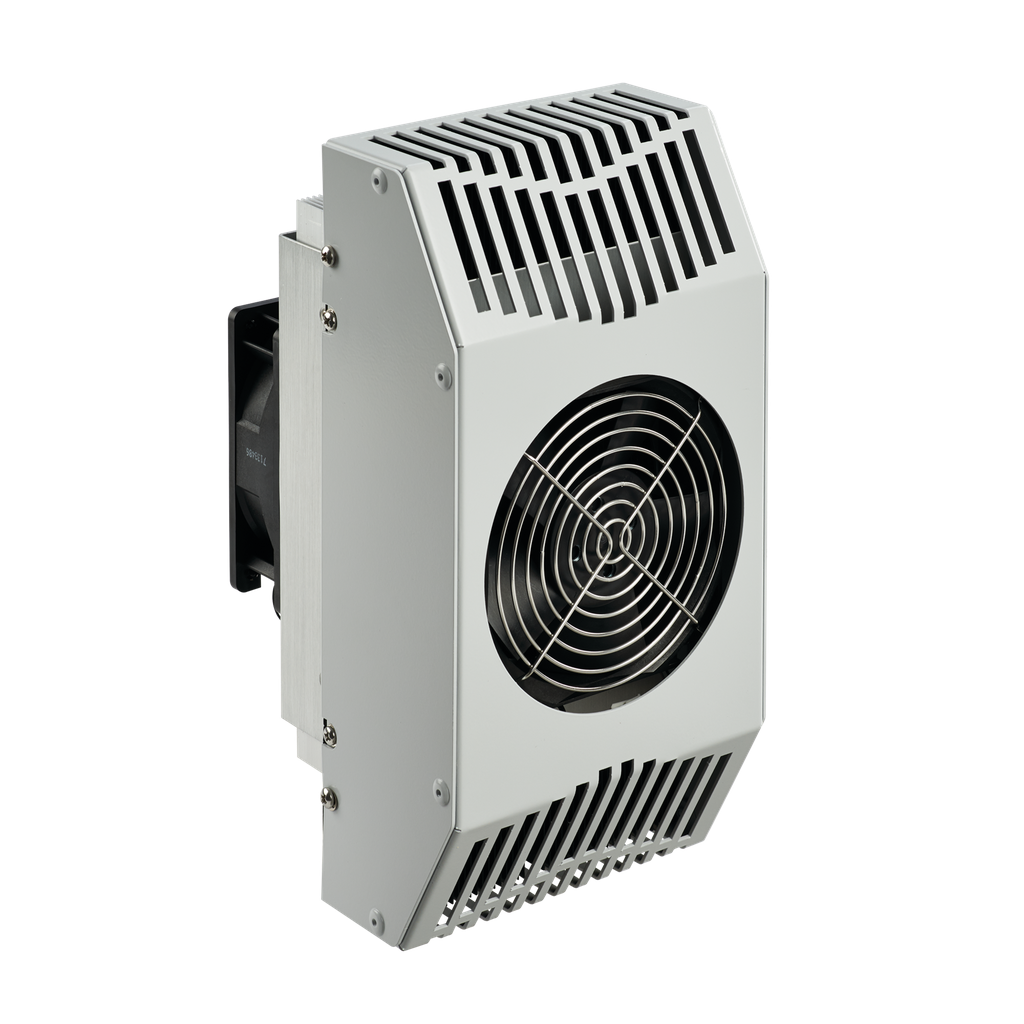

Product image for Hoffman TE121048010 100 Watt 48 V TEC w Shroud
Email

Hoffman TE121048010 100 Watt 48 V TEC w Shroud

Manufacturer: Hoffman | Catalog # TE121048010 | Cooper Electric Part # 1353448
$1,982.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Thermoelectric Coolers minimize downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow for cooling of small indoor and outdoor enclosures. No condensers, compressors or filters are required making it a reliable solution for demanding low-maintenance environments and low noise.

Technical Information

Applications
The McLean Thermoelectric cooler minimizes downtime and component loss by removing heat around critical components within an enclosure. These compact, low-profile coolers using the Peltier effect allow you to cool small indoor and outdoor enclosures. No
BTU Hour
321 BTU
Color Coding
RAL 7035
Enclosure Type
NEMA 3R, 4, 4X, 12, IP65
Material
Steel
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Operating Temperature
-40 to 131 deg F
Operating Voltage
48 VDC
Power Consumption
94 W
Power Rating
94 W
Standard
CE,IP 65,UR, CUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453
Temperature Rating
-40 to 131 degrees F
Type
Thermoelectric Coolers
Voltage
48
Wattage
94 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510210717
Color
RAL 7035 Light Gray
Finish
Powder Coated
GTiN
00783510210717
Housing Material
Mild Steel
Product UPC
78351021071
Weight
14.8 lb

Dimensions

Depth
7.43 Inch
Height
10 Inch
Length
16-1/2 Inch
Thickness
1.52 mm
Width
10.00 in
Features
  • Operates on the Peltier effect for cooling or heating
  • Contains no refrigerant, making it earth friendly
  • Filterless design reduces maintenance requirements
  • Compressor-free air conditioning for demanding indoor and outdoor applications
  • Prewired with simple terminal block for easy wiring connections
  • Shrouded and unshrouded models included in standard packages
  • Operating temperature range -40 C (-40 F) to 55 C (131 F)
  • Partial recess mount
  • DC Powered operation for 24V and 48V applications
  • Low profile design allows for mounting vertically and horizontally on any enclosure to avoid interference with internal components
