Caddy UTS200 Universal Tray Support, EG, 8.8"

Manufacturer: Erico, Inc | Catalog # UTS200 | Cooper Electric Part # 1353246
$2,520.13/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

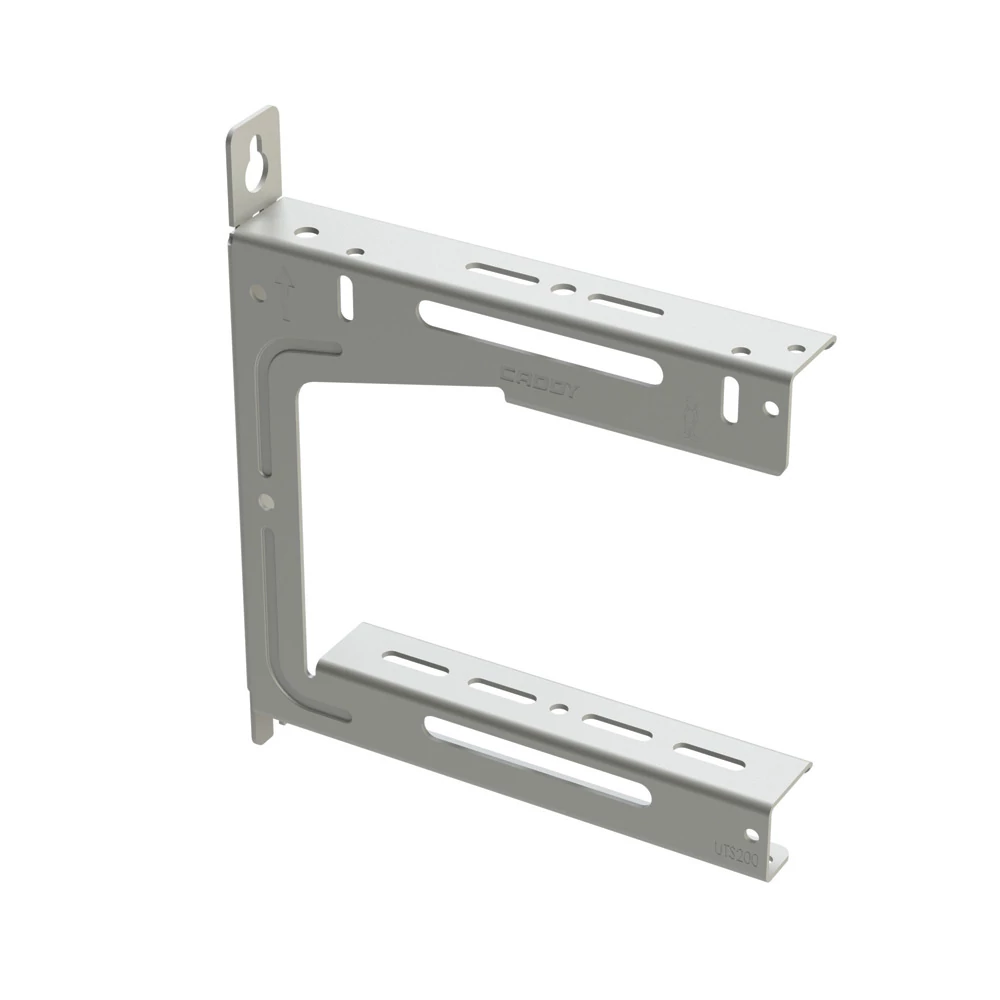

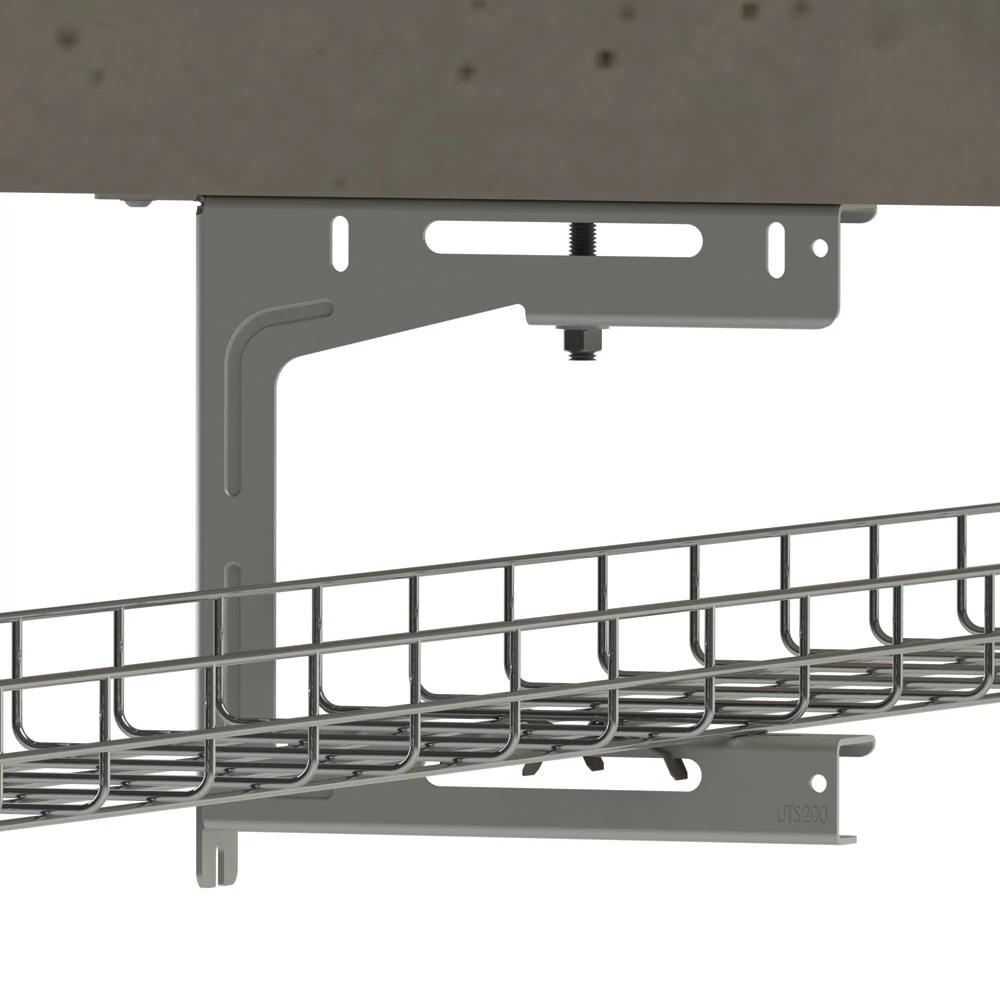

Universal Tray Supports are the perfect solution for supporting cable trays while maintaining accessibility to cables after the installation is completed. Universal Tray Supports are different from labor-intensive traditional methods fabricated with ceiling brackets, strut channels, cantilever arms, and various hardware. Universal Tray Supports can be attached to ceiling, wall, threaded rod, or cable hanging systems to support all possible project requirements and additional cable capacity.

Technical Information

Applications
For Electrical, Datacom
Material
Steel
Mounting Type
Wall
Size
6 in
Type
Cable/Conduit

Packaging

Standard Packaging Qty
20 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856922483
Finish
Electro Galvanized
GTiN
00782856922483
Product UPC
78285692248
Weight
1.25 kg

Dimensions

Hole Size
0.33 in

Certifications and Compliance

Certifications
DIN 4102-12 AbP P-MPA-E-17-008 (Germany)
Features
  • Universal design to accommodate various cable tray hanging methods including ceiling, wall, threaded rod, or cable hanging systems
  • C-shape maintains accessibility to cables after installation is completed

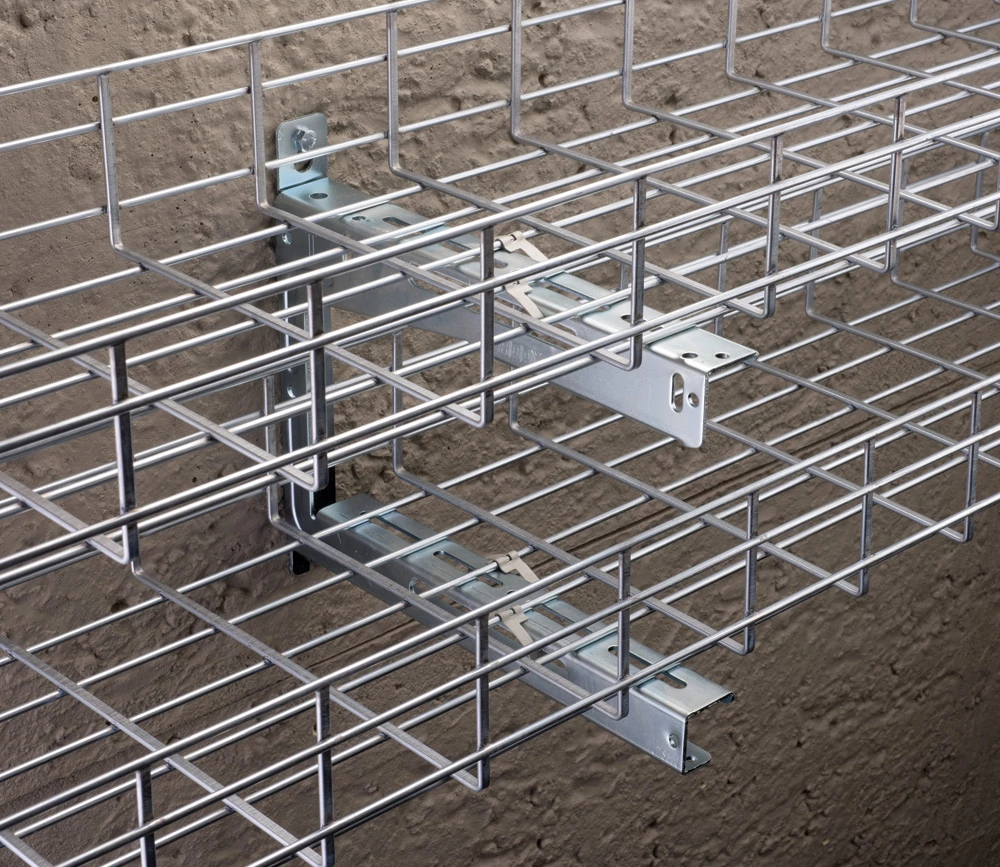

  • Strut profile on both arms allow for two runs of cable trays per bracket
  • Top tab can be bent allowing for extra wide cable trays to be installed when two brackets are fastened back-to-back

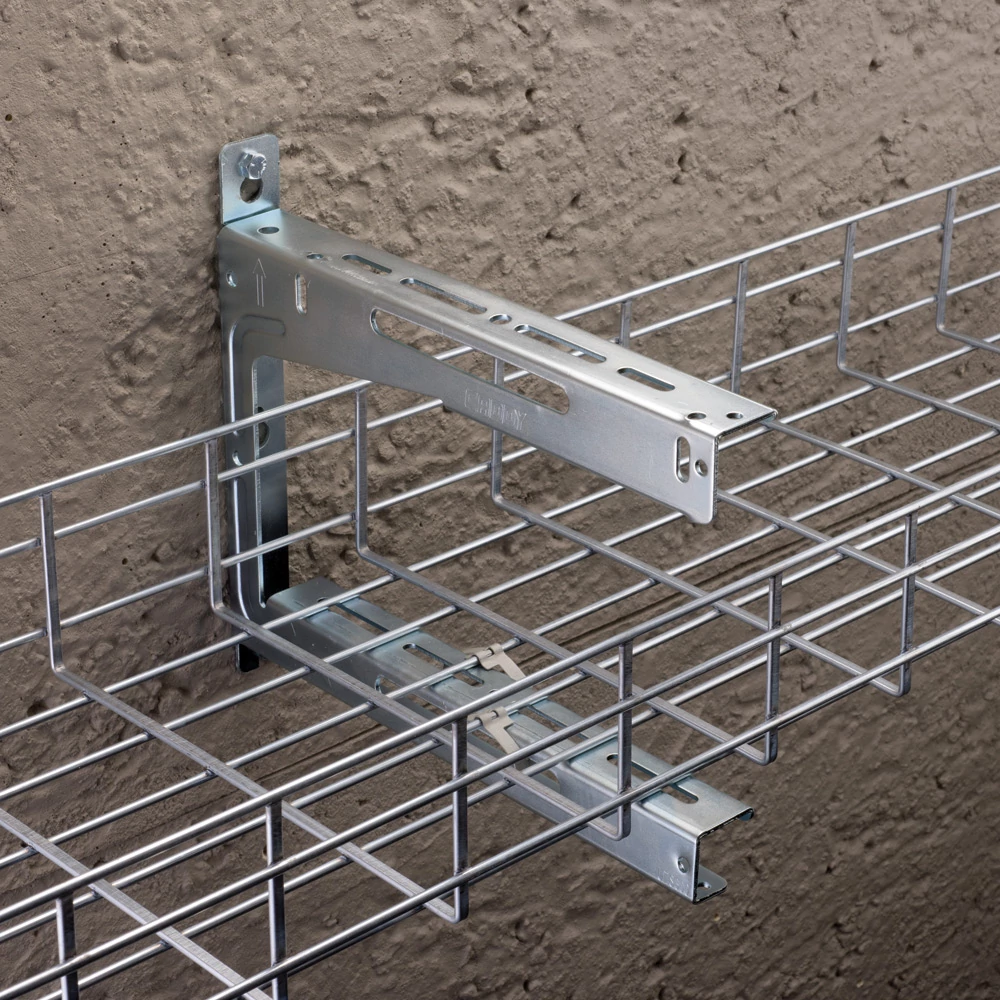

  • Key holes provided for wall mount applications
  • Works with the KBT Wire Basket Tray Clip for securing wire basket cable tray or J-bolts for securing cable ladder
Certifications
  • DIN 4102-12 abP DIN 4102-12
