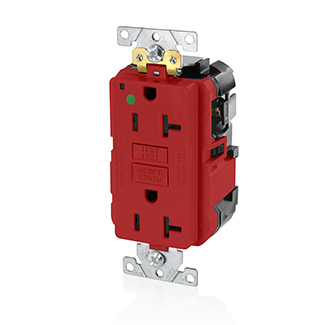

Product image for LEV MN789-HGR LEVLOK GFCI HG 20A 12
Image thumbnail 0
Image thumbnail 1
Email

LEV MN789-HGR LEVLOK GFCI HG 20A 12

Manufacturer: Leviton Mfg Co | Catalog # MN789-HGR | Cooper Electric Part # 1352090
$37.26 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Lev-Lok Duplex Receptacle, SmartlockPro, GFCI Receptacle, Hospital Grade, With Feed-Through, Modular Terminals, Steel Strap – RED

Technical Information

Amperage
20 Amp
Applications
Hospital
AT Rated Voltage
1 hp
Body Material
Polycarbonate
Clip Material
Brass
Contact Material
Brass
Dielectric
1250 V
Face Material
PBT
Flamability Class
Rated V-0 Per UL94
Grounding
Self Grounding GFCI Ground Fault
Horsepower
1 hp
Insulation Material
Brass
Material
Solid filter w/Granular Powder
NEMA
WD-1,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35 to 66 degrees C
Rated Insulation Voltage
1250 V
Screw Material
Brass,Plated Steel
Screw Type
Brass,Plated Steel
Short Circuit Current
2 kA
Standard
UL
Temperature Rise
Max 30C At 250 Cycles OL At 200 Pct Rated Current
Termination Type
Modular Terminals
Trip Class
Class A, 5mA Plus Or Minus 1mA
Trip Point
5mA Plus Or Minus 1mA
Type
GFCI Receptacle
Voltage
125 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477659571
Color
Red
GTiN
00078477659571
Product UPC
07847765957

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
