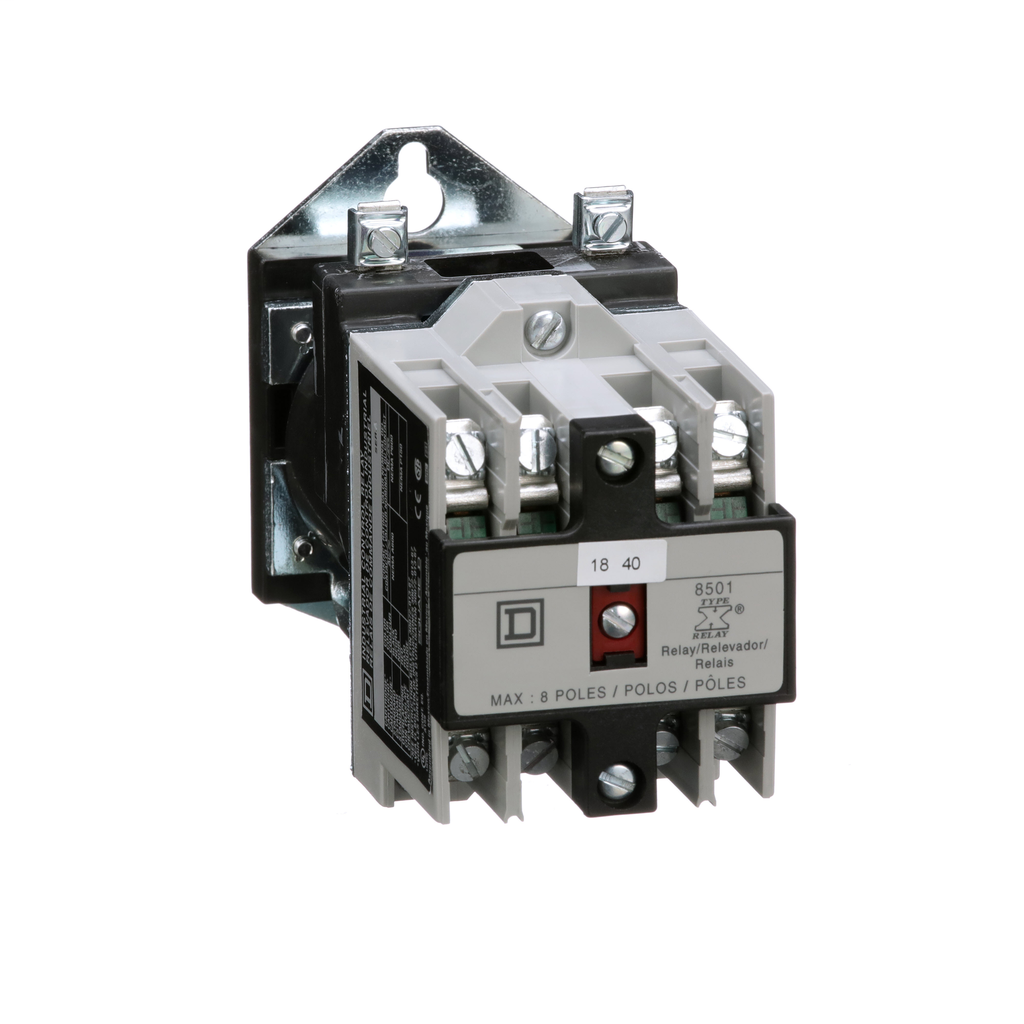

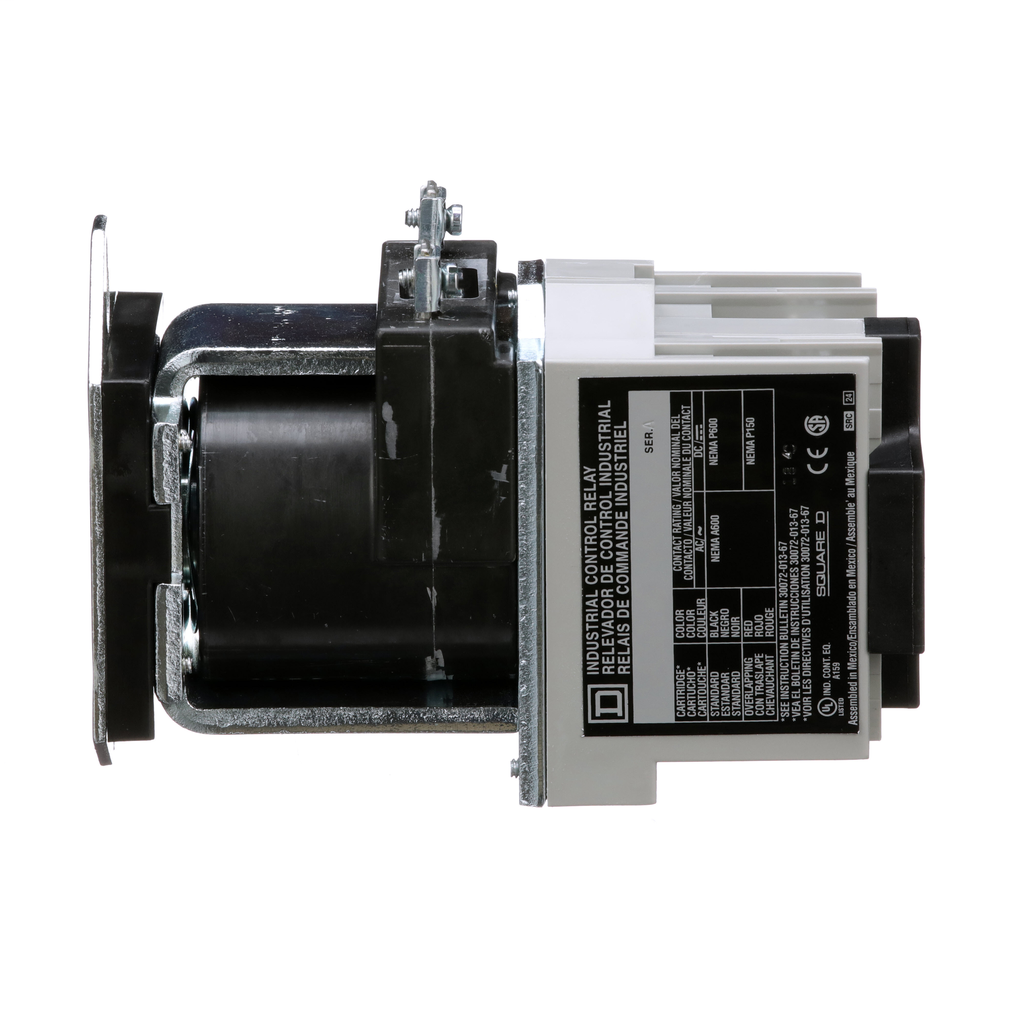

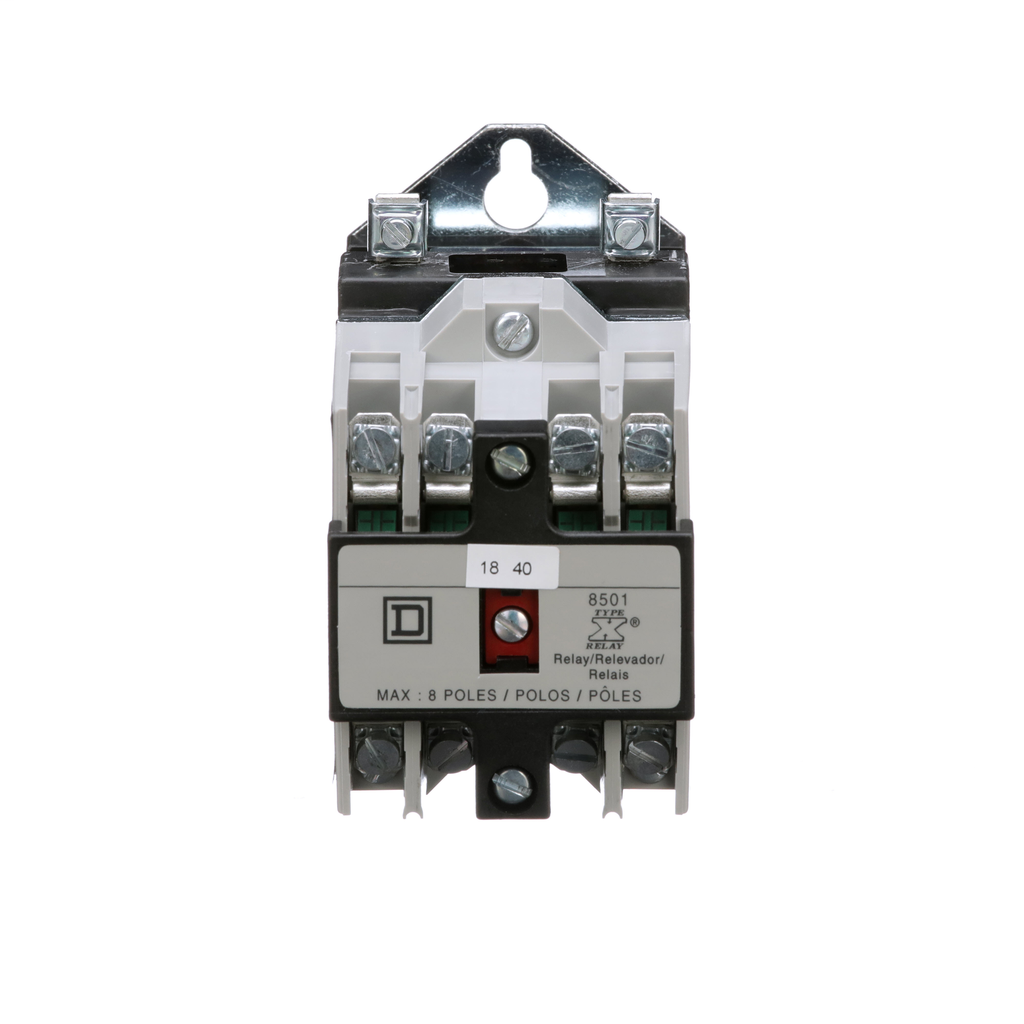

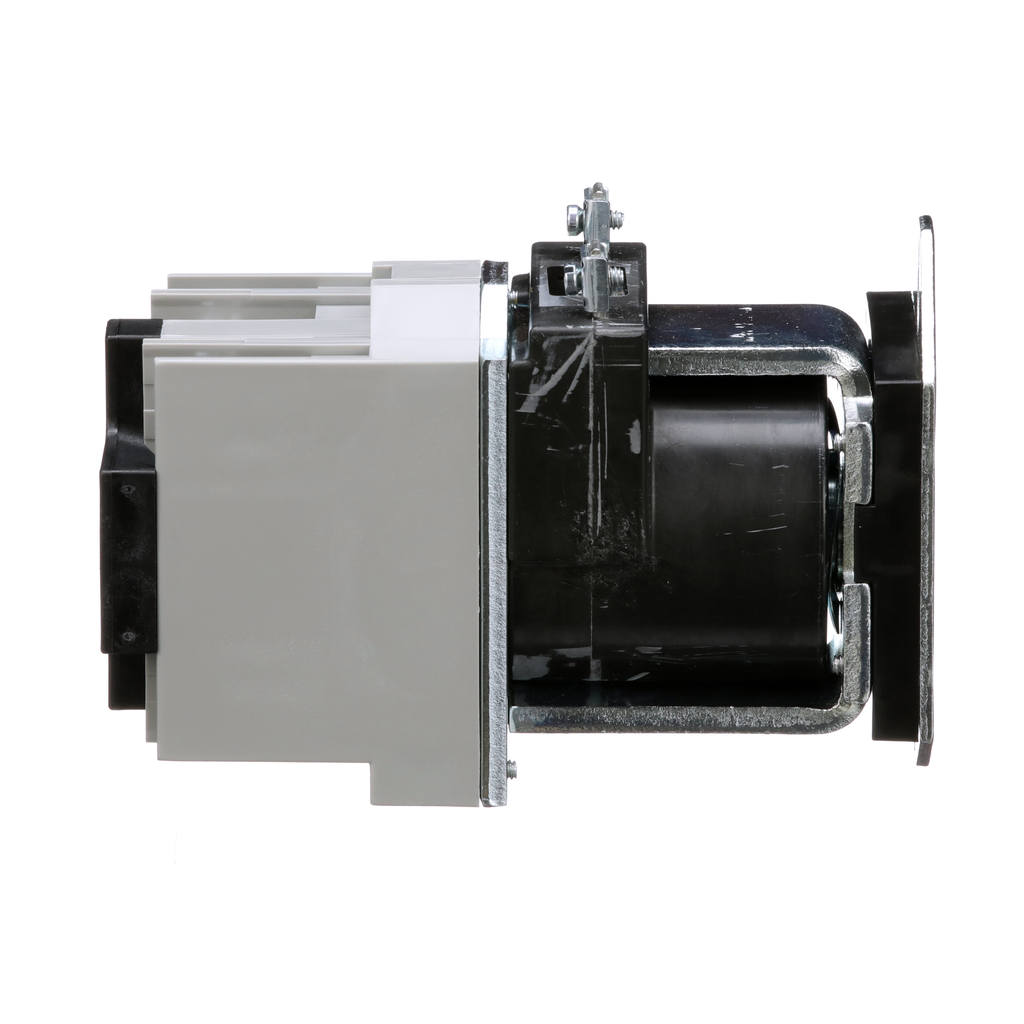

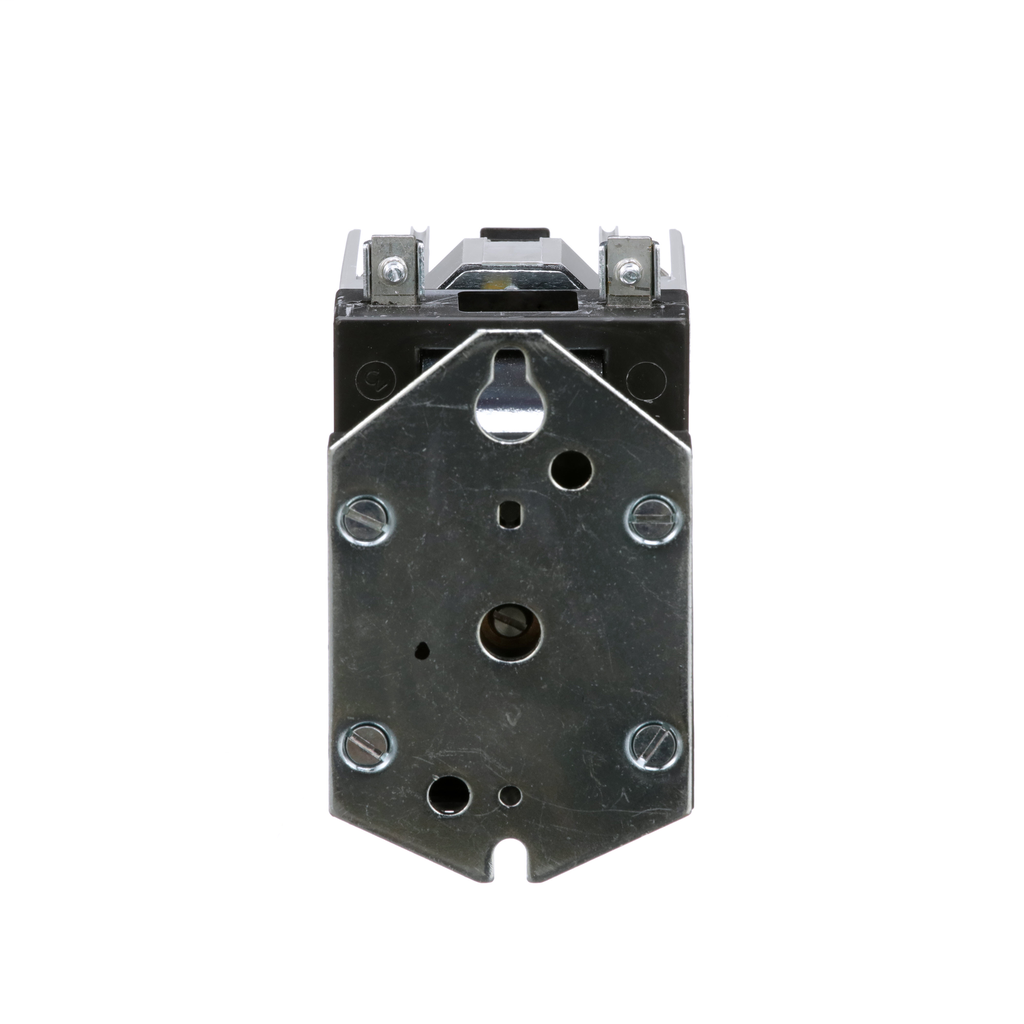

Square D 8501XDO22V56 48 VDC 10/5 Amp 4-Pole 2NO 2NC Panel Mount DC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XDO22V56 | Cooper Electric Part # 1349833
$337.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D® 8501 Type X relays combine a rugged, heavy-duty design with modular construction for greater design flexibility.

Technical Information

Amperage
5-10 Amp
Contact Configuration
2 NO + 2 NC 4 STANDARD CONTACT CARTRIDGES
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Mounting Type
Panel
Number of Poles
4 Pole
Operating Temperature
-40-160 Adegrees F
Size
2.23 IN,3.56 IN,5.17 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
CONTROL,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901017790
GTiN
00785901017790
Product UPC
78590101779

Dimensions

Depth
5.17 Inch
Height
3.56 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
