3M 211(BX) 3M Scotchlok IDC Butt/Trim Out Connector 211 Box

Manufacturer: 3M | Catalog # 211(BX) | Cooper Electric Part # 1349764
$64.10/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure

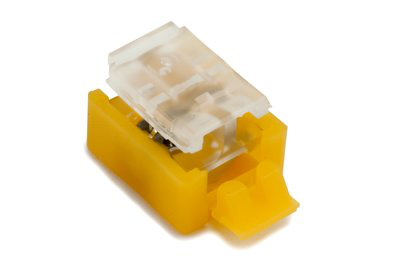

The 211 trim-out connector is a moisture-resistant, self-stripping insulation displacement connector with a built-in cut-off blade and a test port.Wires are positioned in the connector from the sides, allowing the 211 connector to be used without interrupting service. The 211 connector, may also be used for standard two-wire butt type splicing operations. For interruption free butt splice replacement. Choose any one of the 3M Scotchlok Crimping Tools E-9 to use with the 211 connector.

Technical Information

Conductor Size
26-19 AWG
Connection Type
Butt Trim-out/ 2 Conductor
Wire Size
26-19 AWG

Manufacturer Information

Brand
3M Communication Technologies

General Product Info

12-Digit UPC
051115261855
GTiN
00051115261855
Product Type
Connector
Product UPC
05111526185
Overview
  • Equipped with a built-in, cut-off blade and a test port
  • 3M™ Scotchlok™ IDC Butt/Trim Out Connector is a moisture-resistant, self-stripping, insulation displacement connector. This connector is designed for interruption-free butt splice replacement. It withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C).
  • 3M™ Scotchlok™ IDC Butt/Trim Out Connector is incorporated with a built-in, cut-off blade and a test port. The wires are positioned in the connector from the sides that allow the connector to be used without any interruption. The corrosion-resistant connector is used for standard 2-wire butt-type splicing operations. This connector is perfect for use on PIC cable where moisture resistance is not required.
  • Wires are positioned in the connector from the sides for interruption-free service
  • Used for standard 2-wire, butt-type splicing operations
  • 0.082-in O.D. insulation
  • Accommodates 26 to 19 AWG conductor sizes
  • Durable polypropylene construction
  • Withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C)
  • 100/box, 10 boxes/case
