Blackburn WR219 Compression Connctor

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR219 | Cooper Electric Part # 1348607
$17.01/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

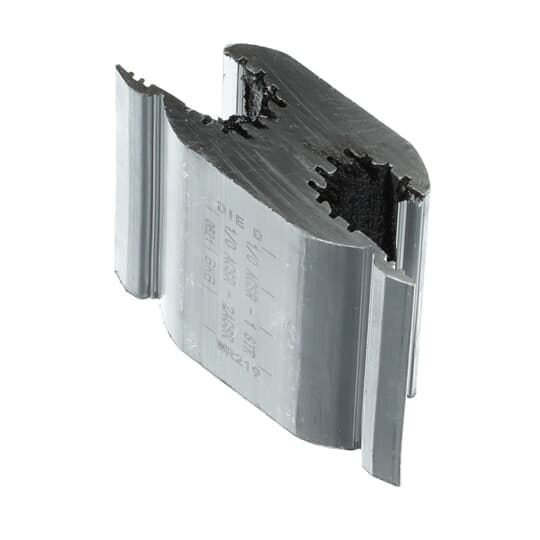

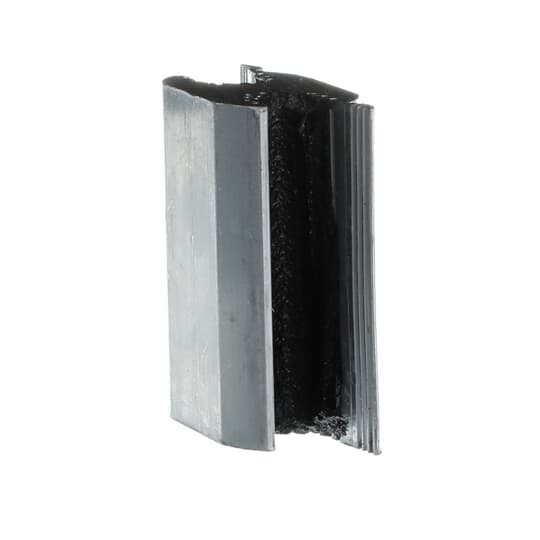

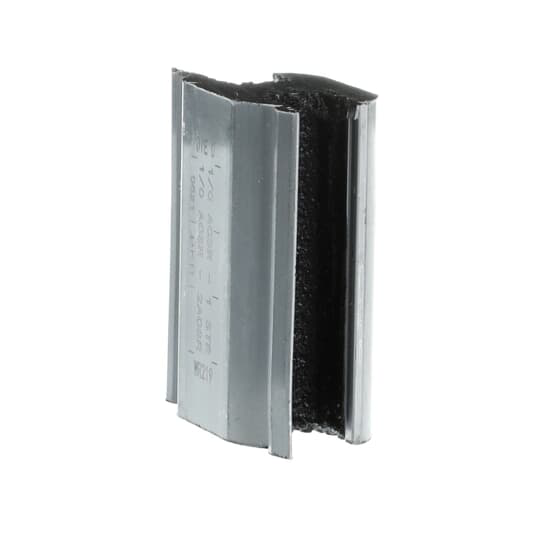

Aluminum Wide Range H-Type Compression Connector Main: 1/0 - 1 ACSR, 1/0 - 1 Str., Tap: 1/0 - 2 ACSR, 1/0 - 1 Str., Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 1-7/8 inch
TC Connection
Compression
Temperature Rating
Up to 90 degrees C
Type
Short
Wire Size
Main: 1/0-1 ACSR or 1/0-1 STR ; Tap: 1/0-2 ACSR or 1/0-1 STR AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100125
Environmental Conditions
All Seasons / Conditions
Finish
Tin Plated
GTiN
00783786100125
Product UPC
78378610012
Used With
Round Conductors, Solid Cores, Stranded Conductors

Dimensions

Length
1-7/8 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • Enables excellent connector contact without distorting the conductor's shape.
  • RUS accepted and complies with ANSI C119.4
