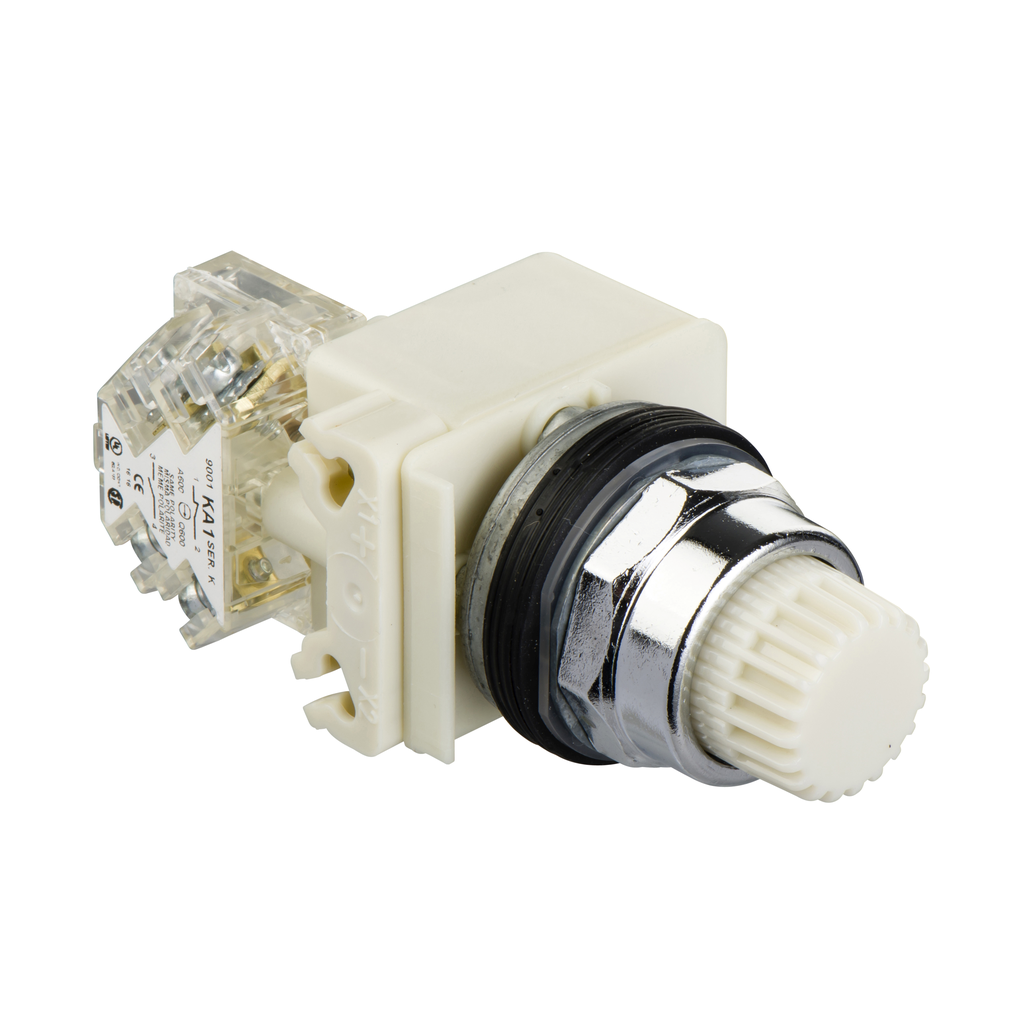

Product image for SQD 9001K2L35WH13 Illuminated push-
Image thumbnail 0
Image thumbnail 1
Email

SQD 9001K2L35WH13 Illuminated push-

Manufacturer: Square-D / Schneider | Catalog # 9001K2L35WH13 | Cooper Electric Part # 1346561
$276.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This Harmony 9001K, modular illuminated projecting white push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Action
Standard
Actuator
SPRING RETURN,WHITE PROJECTING, UNMARKED
Amperage
10 Amp
Bezel Material
Metal
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4
Indicator
BA 9S,INCANDESCENT
Light Source
incandescent
Net Weight
0.166 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MMA IEC 60947-1
Type
Illuminated push-button
Voltage
24...28 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901831334
Color
White
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901831334
Product UPC
78590183133
Weight
0.37 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
