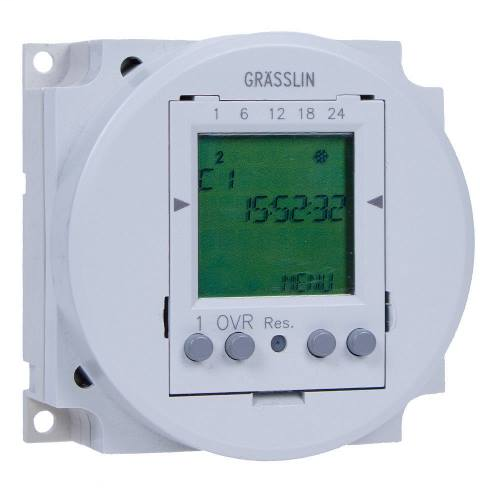

Image thumbnail 1
Image thumbnail 2

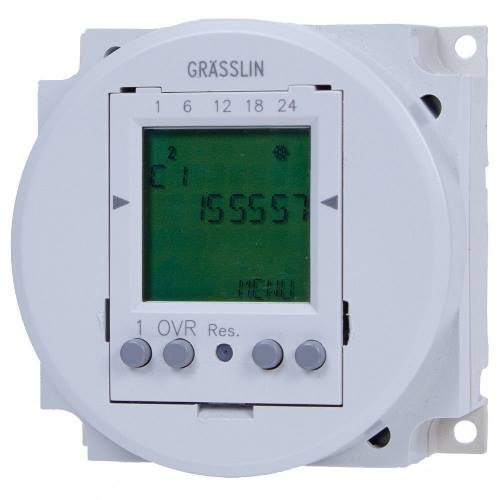

Image thumbnail 3
Email

INT-MAT FM1D50-240U DGTL TMR,50 ST

Manufacturer: Intermatic, Inc | Catalog # FM1D50-240U | Cooper Electric Part # 1346244
$291.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The FM1D50 Series Electronic Time-Based Controls enable switching of ventilation, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one channel time switches are programmable for 24-hour or 7-day schedules. They are intended for panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail models (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Technical Information

Action
SPDT
Applications
HVACR, Pumps, Lighting, Industrial, Commercial, Fans, Heaters, Machinery
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Frequency
50/60 Hz
Input Voltage
240 V
Max Operating Temperature
131 degrees F
Min Operating Temperature
-13 degrees F
Mounting Type
Panel
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
4 VA
Size
2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Standard
CULus Recognized E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Type
One Channel Electronic
Voltage
240 VAC
Wattage
1000 Watt

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275116269
GTiN
00078275116269
Product UPC
07827511626

Dimensions

Depth
52 mm
Height
60.1 mm
Width
60.1 mm
Features
  • 24-Hour or 7-day applications
  • 50 Setpoint programs
  • Two preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Seven available languages: English, German, French,Italian, Spanish, Portuguese, and Dutch
  • Auto Daylight Saving Time feature
  • A & E Models come with clear dust cover
Applications
  • Generator Exercising
  • Scheduling Occupied/Unoccupied Ventilation System Operation
  • Parts Washer
  • Commercial Refrigeration
  • Pump Control
  • Motor Control
  • Fan Control
  • HVAC Control Circuits
  • Photovoltaic Control
  • Landscape Lighting
  • Security Gates
