Square D ZB6ZB35B 16 mm 12 to 24 VAC/VDC 1NO 1NC Green Illuminated Push Button Contact Block

Manufacturer: Square-D / Schneider | Catalog # ZB6ZB35B | Cooper Electric Part # 1343320
$25.87/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

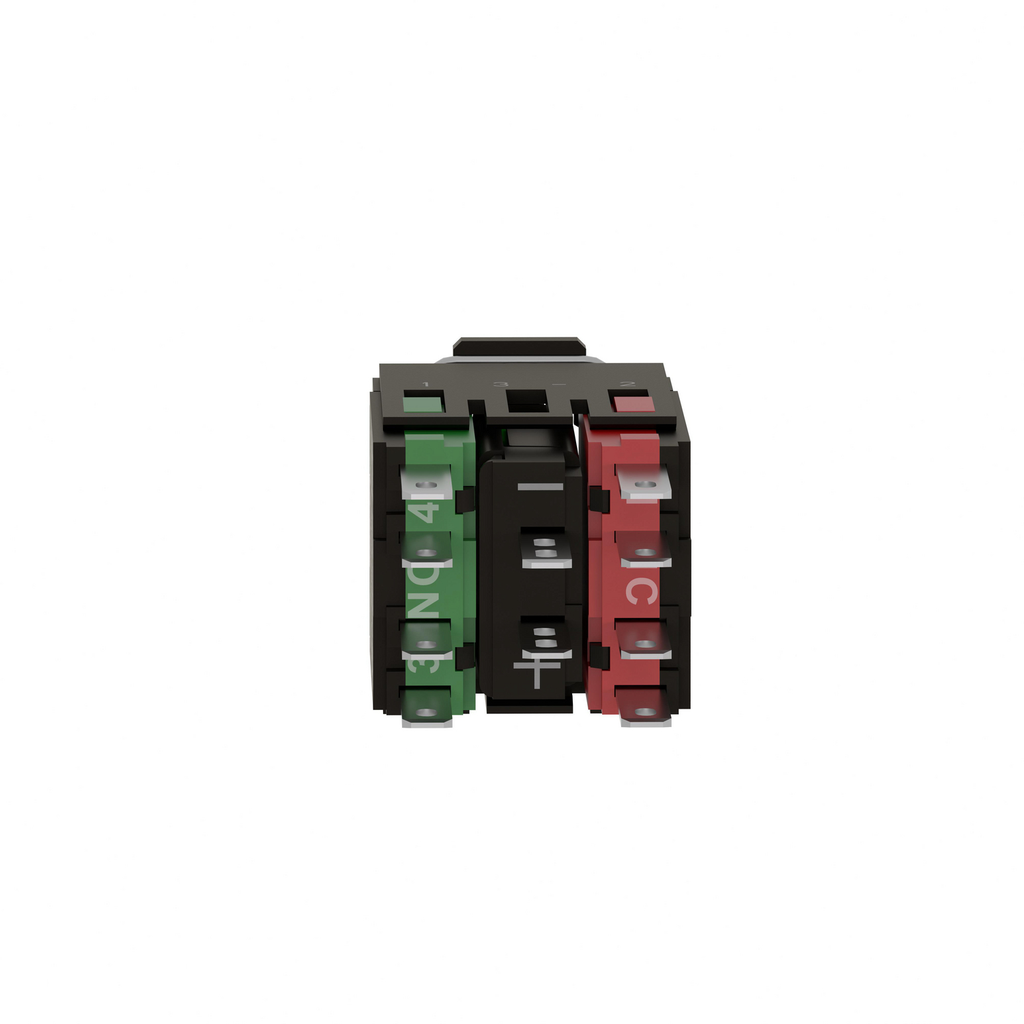

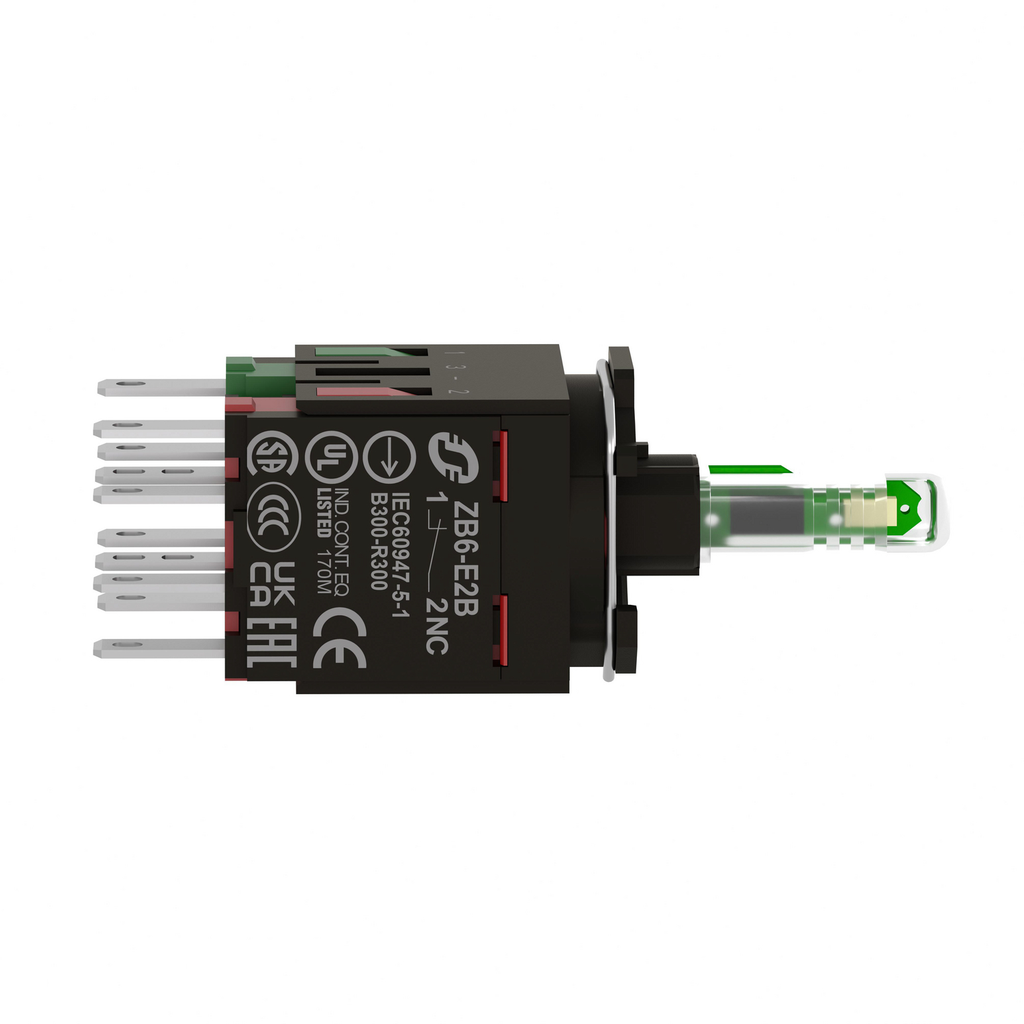

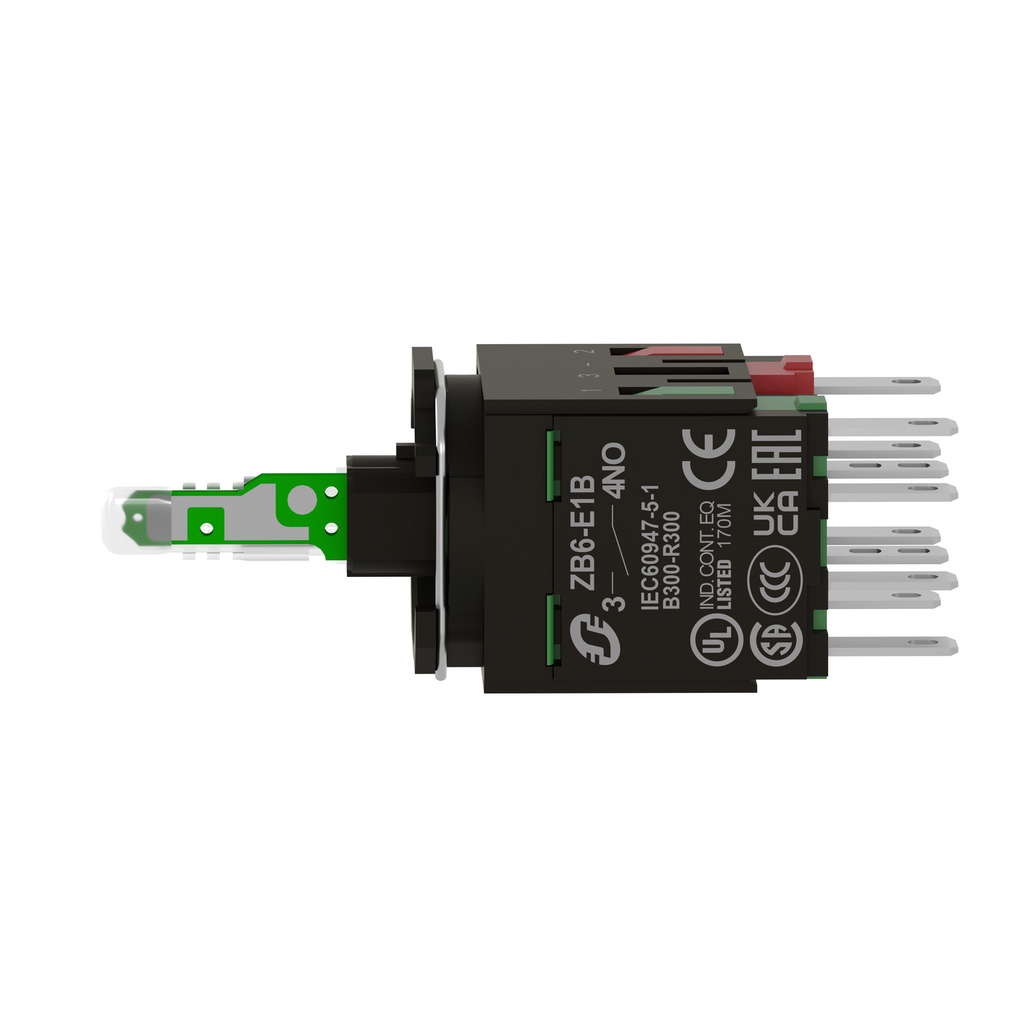

This Harmony ZB6ZB35B is a green light block with body/fixing collar and integral LED 12V to 24V, 1 NO + 1 NC. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Technical Information

Action
Slow-break
Amperage
3 Amp 120 V, AC-15, B300-1.5 Amp 240 V, AC-15, B300-0.1 Amp 250 V, DC-13, R300-0.22 Amp 125 V, DC-13, R300
Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Contact Rating
B300 - R300
Current
15 mA
Indicator
LED,GREEN,INTEGRAL LED
Light Source
LED
Net Weight
0.009 kg
Operating Force
1.6 N
Operating Temperature
-25-70 Adegrees C
Size
18 MM,24 MM,51 MM
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTOR 2.8 X 0.5 MM
Type
Complete body for illuminated push-button
Voltage
12...24 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB6

General Product Info

12-Digit UPC
785901367147
Color
Green
GTiN
03389110784442
Product UPC
78590136714
Weight
0.009 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
24 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB6DW3
  • ZB6CW3
  • ZB6AW3
  • ZB6AE3
  • ZB6AF3
  • ZB6CF3
