LEV DT830-IG OR DEC DUP TR HG IG RE

Manufacturer: Leviton Mfg Co | Catalog # DT830-IG | Cooper Electric Part # 1343110
$41.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

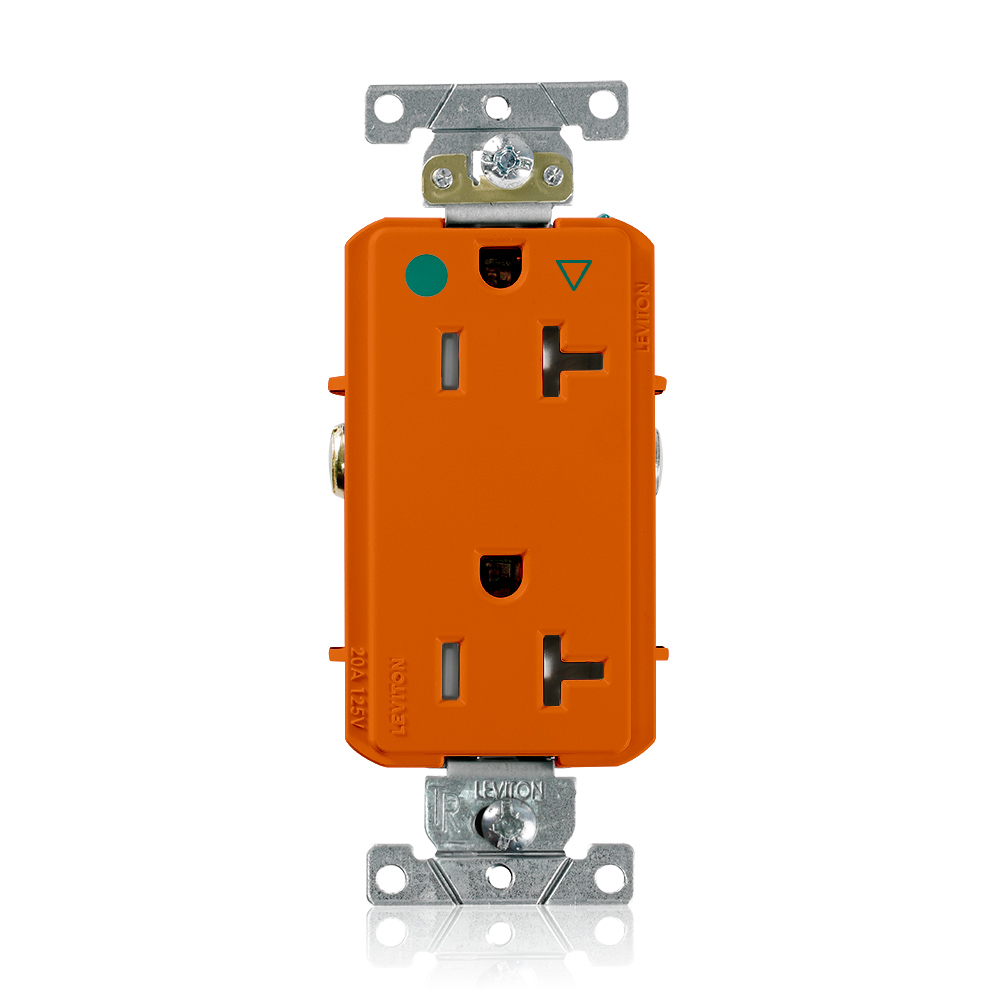

Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Orange

Technical Information

Amperage
20 Amp
Applications
Hospital
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Hospital
Grounding
Self-Grounding,Self-Grounding
Horsepower
1 hp
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
75 degrees C
Standard
C,US UL
Temperature Rise
30 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Voltage
125 Volt
Wire Count
3,3
Wire Type
Stranded or Solid

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477895658
Color
Orange
GTiN
00078477895658
Product UPC
07847789565

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • MX321216
  • MX324598
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8684771
  • US8777674
Color Variations
  • Brown
