Thomas & Betts RA18-8FS 22 to 16 AWG #8 Stud Red Electrotinned Copper Nylon Insulated Fork Terminal Lug

Manufacturer: ABB | Thomas & Betts | Catalog # RA18-8FS | Cooper Electric Part # 134094
$391.01/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

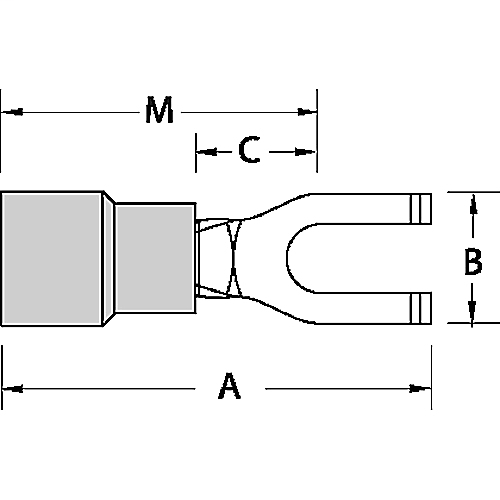

Nylon Insulated Fork Terminal with Flanged Tongue, Length .89 Inches, Width .31 Inches, Maximum Insulation .136, Bolt Hole #8, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated, 100 Pack

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Flanged Tongue, Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803906
Color
Red
Finish
Electro Tin Plated
GTiN
05414363157601
Product UPC
78621080390

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.1 in
Certifications
  • UL
  • CSA
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
