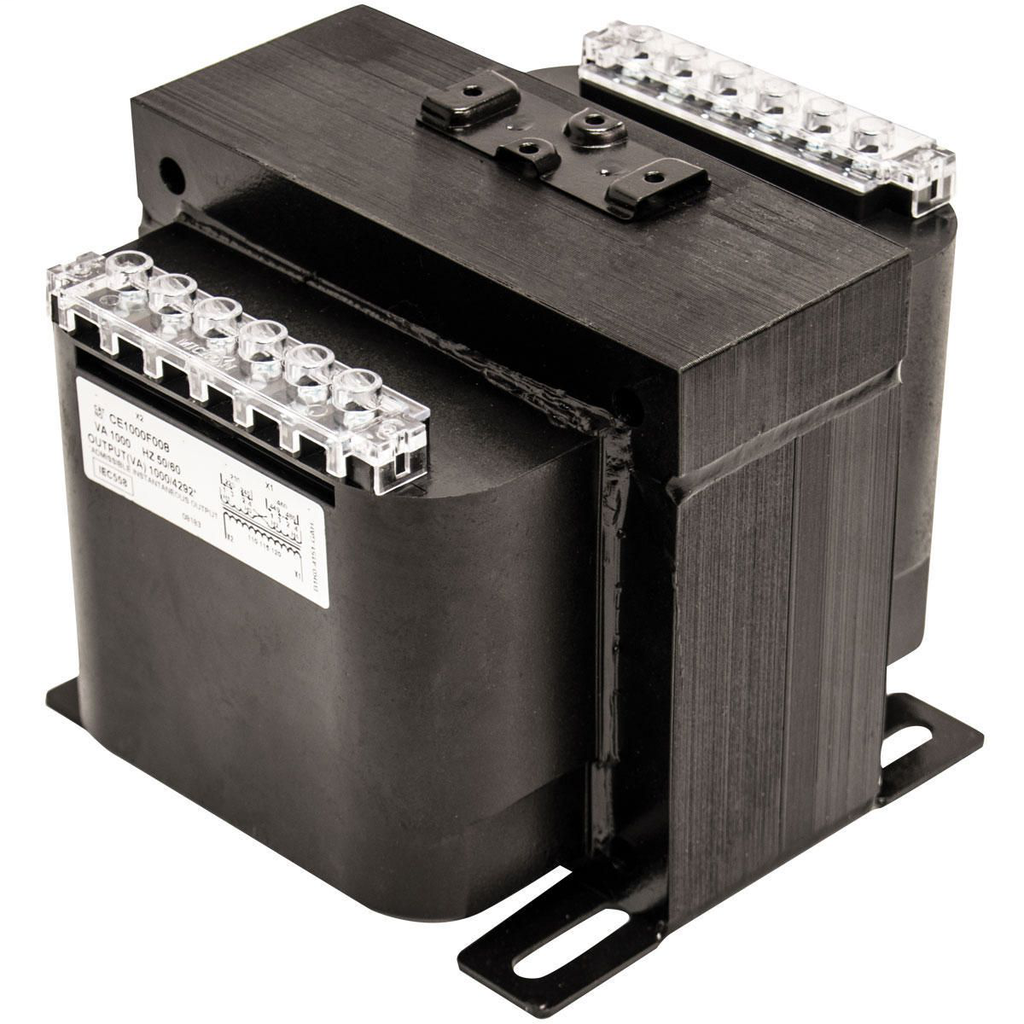

Product image for ACME CE1000F007 ICT 1KVA 208-600 -
Email

ACME CE1000F007 ICT 1KVA 208-600 -

Manufacturer: Acme Electric | Catalog # CE1000F007 | Cooper Electric Part # 1338413
$471.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Acme.s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits. The transformer.s windings and internal terminations are sealed within an epoxy encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme.s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.

Technical Information

Applications
Open Core & Coil
Frequency
50 Hz
Max Output Current
11.76,10.99,1.53,10.1,10,9.09,8.7,8.33,8,7.69
Number of Phases
1 Phase
Primary Voltage
208 V
Secondary Voltage
100 V
Standard
CSA 22.2 No 66.1,CSA 22.2 No 66.2,UL 5085-1,UL 5085-2
Temperature Rating
115 C
Type
Non-Reversing
Wattage
1000 Watt

Manufacturer Information

Brand
Acme Electric Company
Sub Brand
Industrial Control

General Product Info

12-Digit UPC
047503005958
Construction
Encapsulated
GTiN
00047503005958
Product UPC
04750300595
Weight
27.9 lb

Dimensions

Height
7 Inch
Length
5-1/2 Inch
Width
6.38 in

Certifications and Compliance

CE Compliant
EN61558-2-2,EN61558-2-2
Country of Origin
USA
Features
  • Secondary fuse clips factory installed, where applicable
  • Twenty year limited warranty
  • UL Listed and CSA Certified or cUL
  • Epoxy encapsulated design protects core & coil assembly from potentially damaging contaminants
  • CE Marked
