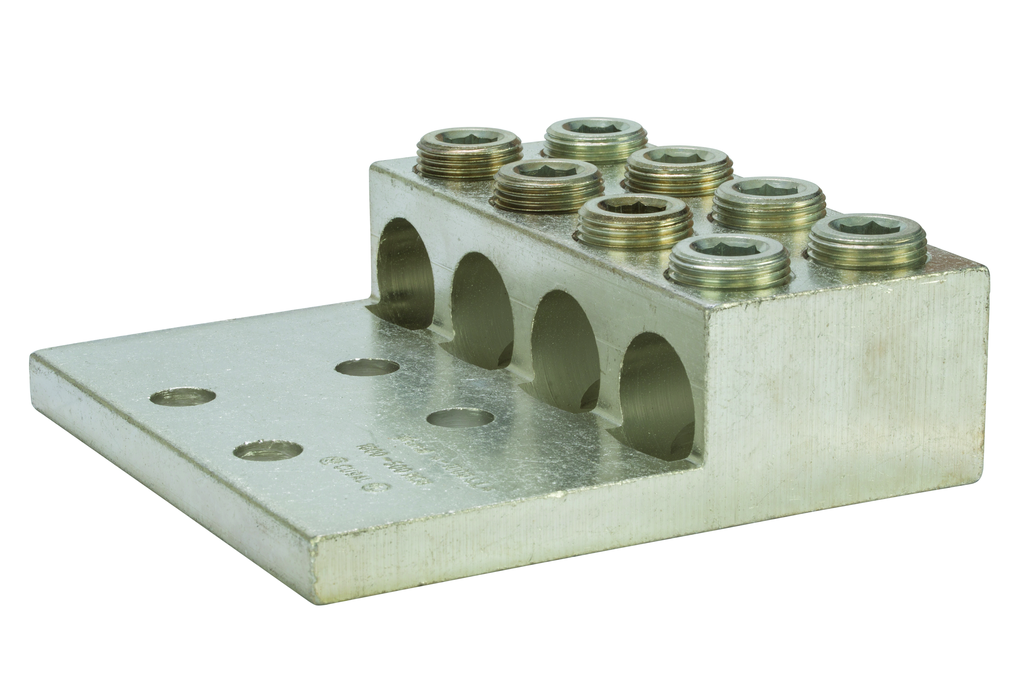

Product image for NSI 4-1000LL4 Dble Screw Lug(4)1000
Email

NSI 4-1000LL4 Dble Screw Lug(4)1000

Manufacturer: NSi | Catalog # 4-1000LL4 | Cooper Electric Part # 1338161
$261.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
4 Port Double Set Screw Panelboard Lug 1000 MCM - 500 MCM Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
9/16 IN
Conductor Size
500-1000 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
4
Number of Conductors
4
Number of Poles
1 Pole
Number of Ports
4
Standard
CULUS
Temperature Rating
90 degrees C
Type
Panelboard Lug
Voltage
600 Volt
Wire Size
500-1000 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001788
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001788
Product UPC
66238100178

Dimensions

Height
1.88 Inch
Length
6.18 Inch
Warranty Length
1 yr
Width
6.19 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
Features
  • Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection
  • Made of 6061T-6 aluminum alloy
  • Tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.758 inch
