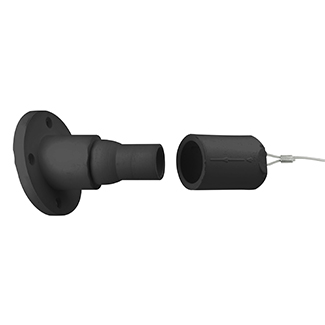

Product image for LEV 22R26-E 22 SERIES FEMALE RECEP
Email

LEV 22R26-E 22 SERIES FEMALE RECEP

Manufacturer: Leviton Mfg Co | Catalog # 22R26-E | Cooper Electric Part # 1337528
$757.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
22 Series Ball Nose In-Line Threaded Female Panel Receptacle, 15-Degree, Cam-Type, Cable Range 250-750MCM, 690Amp . BLACK, includes protective cap

Technical Information

Amperage
690 Amp
Applications
Commercial
Connection Type
Threaded Stud
Contact Material
Brass
Material
Neoprene
Max Current
690 A
Max Voltage
600 V
Mounting Type
Panel
Number of Poles
1 Pole
Size
4.50 Dia x 7.61 L IN
TC Connection
Threaded Stud
Temperature Rating
-60 To 135 degrees C
Type
Single Pole Cam Receptacle
Voltage
600 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477153116
Color
Black
Environmental Conditions
Flammability (Rated HB Per UL94)
Gender
Female
GTiN
00078477153116
Product UPC
07847715311

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • The 22 Series Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside. Our latching connector series has been tested to meet Navy specs, including intermateability with competition. They provide heavy duty, completely insulated connectors that are vibration resistant. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency. Contacts can be retrofitted to existing locations and power distribution systems. Male contacts provide 40% more surface contact with the female vs. competitive products, ensuring greater conductivity while preventing burnout.
