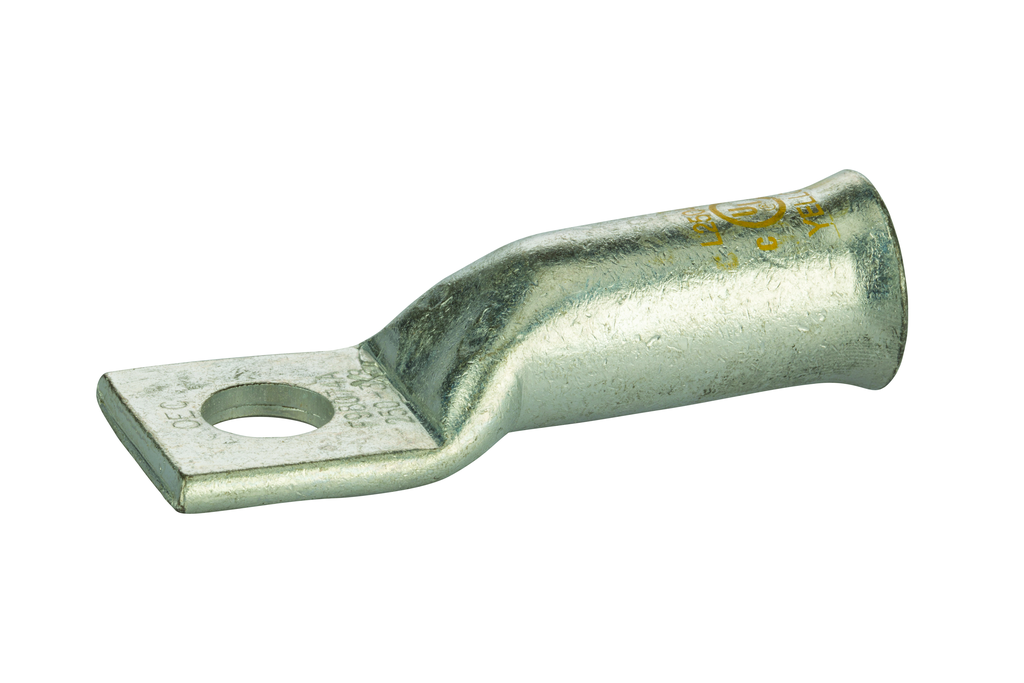

Product image for NSI L25048B 1/2 Inch 250 MCM Yellow Copper Belled End Long Barrel 1-Hole Compression Lug
Email

NSI L25048B 1/2 Inch 250 MCM Yellow Copper Belled End Long Barrel 1-Hole Compression Lug

Manufacturer: NSi | Catalog # L25048B | Cooper Electric Part # 1337044
$2,118.50/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 250 MCM - 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Cable Size
250 MCM
Material
Copper
Max Temperature
194 degrees F
Mounting Type
1/2 Mounting Hole
Number of Holes
1 Hole
Size
L=3.03 - W=1.09 - OD=.752 - ID=.594
Standard
UL486
Stud Size
1/2 in
Type
Long Barrel - One Hole - Belled End
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381337078
Color
Yellow
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381337078
Product UPC
66238133707

Dimensions

Height
0.88 Inch
Length
3.03 Inch
Warranty Length
1 yr
Width
1.09 in

Certifications and Compliance

Country of Origin
India
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A
Features
  • Connector end has a gentle, continuous flare to ensure ease of cable insertion of flexible and extra-flexible cables such as locomotive, welding, mining cable and more
  • The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement
  • Tin-plated for corrosion resistance
  • Wire connector rated for 35kV max
  • Class B/C compressed, concentric, and compact copper conductor only
Additional Notes
  • EXPANDED WIRE RANGE when installed with NSI N12ID dieless compression tool. UL Listed with other tools: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 87
