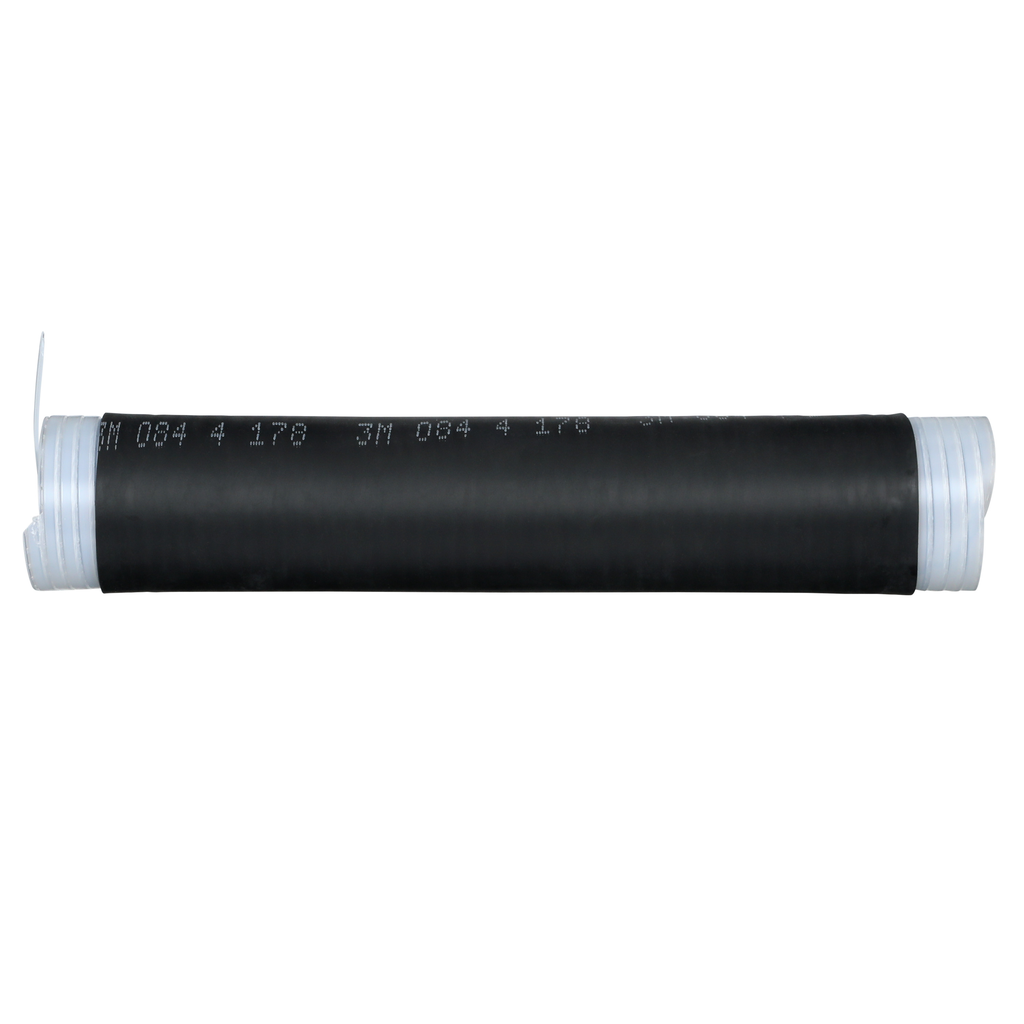

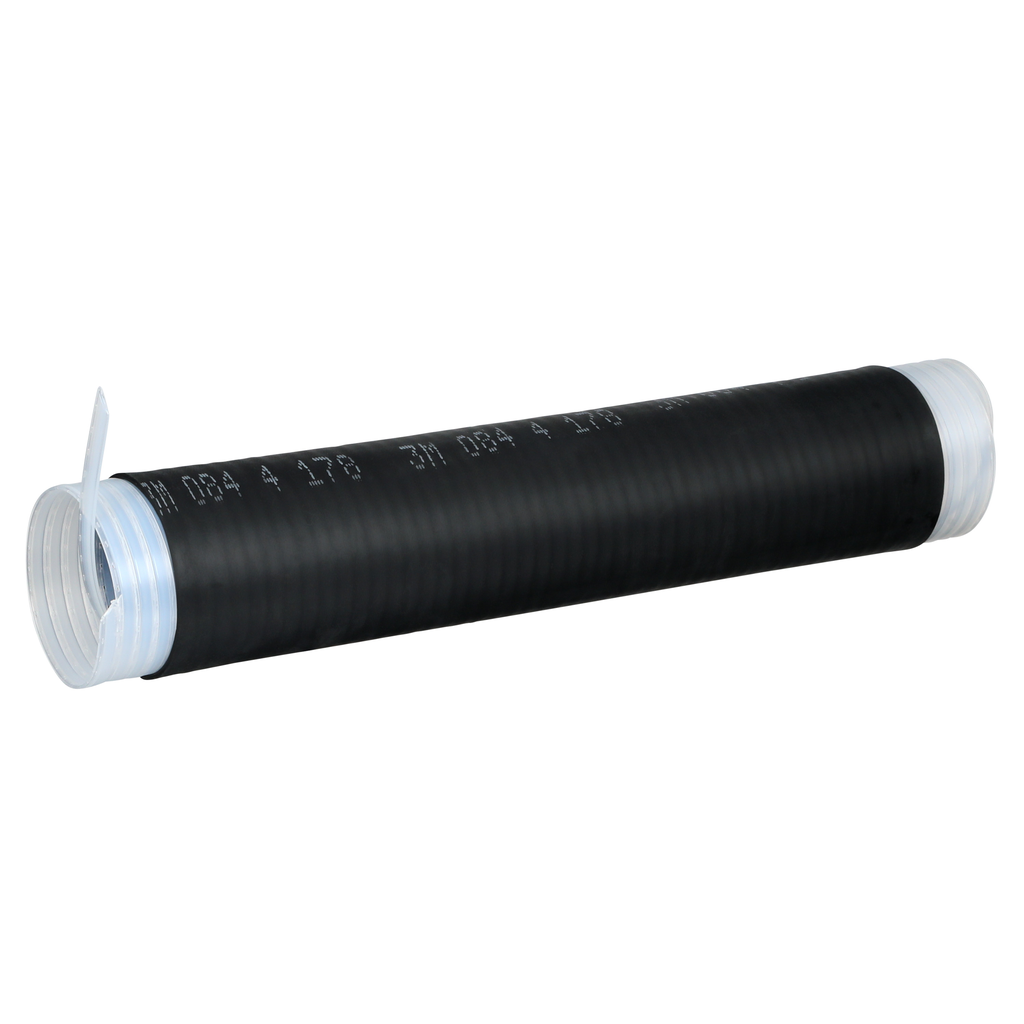

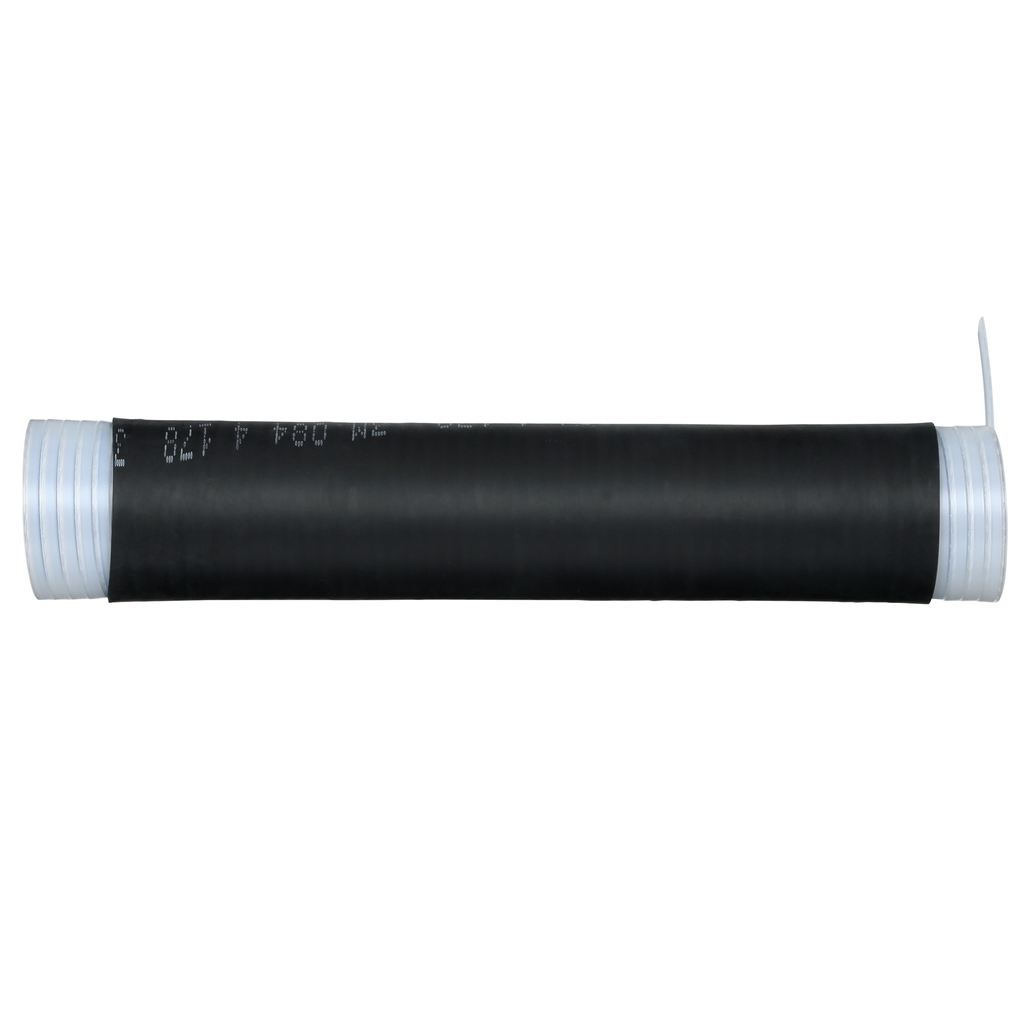

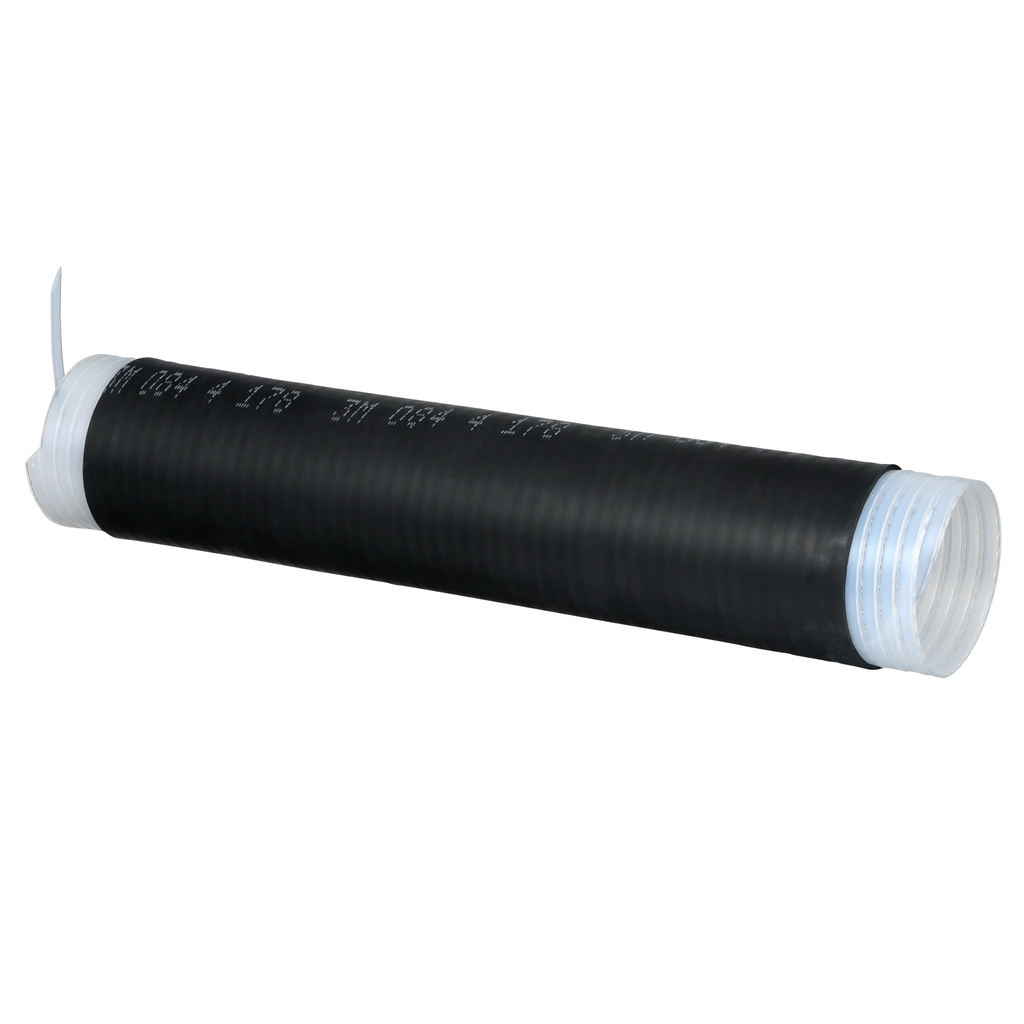

3M 8429-15 Cold Shrink Connector Insulators

Manufacturer: 3M | Catalog # 7010418000 | Cooper Electric Part # 1336795
$221.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.

Technical Information

Conductor Size
1000 kcmil
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Splice Type
Cold Shrink
Voltage
1 kV

Packaging

Units Per Case
10

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007441984
Color
Black
GTiN
00054007441984
Product Type
Splice
Product UPC
05400744198

Dimensions

Overall Length
381.0 mm

Certifications and Compliance

Country of Origin
USA
Features
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Covers a wide range of cable cross sections
  • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
