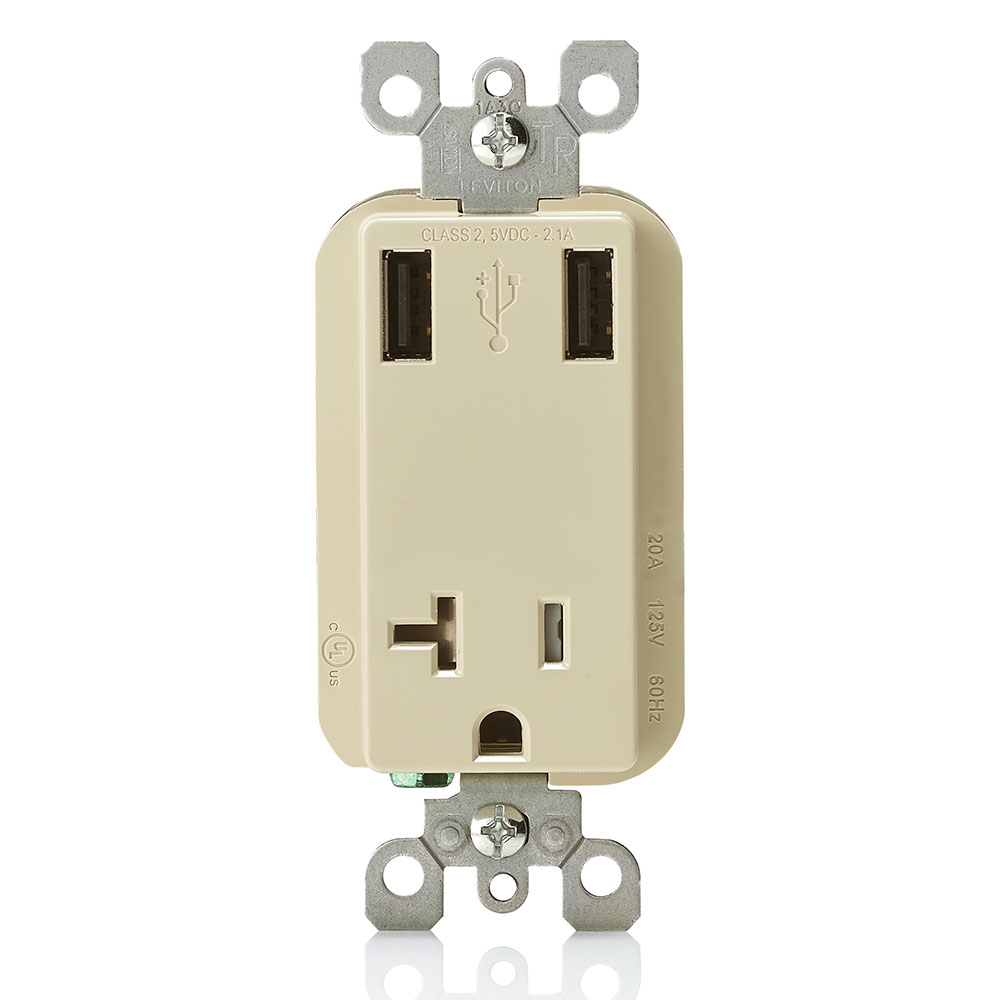

LEV T5830-I 20A USB RECEPTACLE

Manufacturer: Leviton Mfg Co | Catalog # T5830-I | Cooper Electric Part # 1336523
$14.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
The Leviton USB Charger/Tamper-Resistant Receptacle offers a ground-breaking 2.1A of charging power and a 20A-125V Tamper-Resistant Receptacle. This state-of-the-art device has the ability to charge up to two electronic devices simultaneously utilizing the USB Ports, leaving the receptacle free for additional power needs. The USB Ports are Type A, 2.0 and are controlled by a smart chip which recognizes and optimizes the charging power of your device. This means you can spend less time charging your device and more time enjoying it! Our USB Charger/Tamper-Resistant Receptacle is ideal for charging tablets, smart and mobile phones, e-readers and much more.

Technical Information

Amperage
20 Amp
Applications
For Residential use
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
125 V
Cover Material
Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1 hp
Material
Steel
Mounting Type
Wallplate
NEMA
5-20R
Number of Poles
2 Pole
Operating Temperature
-10 degrees C
Standard
NEC,UL Listed (498)
TC Connection
Back Wired;Side Wired
Terminal Size
14-12 AWG
Termination Type
Back,Side
Torque
12-14 lb-in
Type
Receptacle with USB Charger
Voltage
125 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477631904
Color
Ivory
GTiN
00078477631904
Product Type
Outlet/USB Combo
Product UPC
07847763190

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
CULus
Country of Origin
China
Features
  • The 20A USB Receptacle is perfect for commercial applications such as hotels, airport cafes, restaurants, office cubicles, college dorm rooms, as well as residential applications kitchens, bedrooms and home offices.
  • Smart chip designed for recognizing and optimizing the charging requirements of your device.
  • Strategic Placement of ports positioned vertically provides more space for maneuvering and reduces stress on USB cables.
  • USB Ports with a combined power of 2.1A.
  • More charging capacity means better charging capability.
  • High Power Port is ideal for charging Tablets and other high draw devices.
  • Compact Design fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other standard Leviton devices.
  • Back and Side Wired for easy installation.
  • Tamper-Resistant 2011 NEC® Compliant shutter mechanism blocks access to contacts from most foreign objects for improved safety.
  • UL Listed.
  • Compatible with USB 3.0, 2.0, 1.1 devices
  • SMART - Built-in smart chip recognizes the individual devices charging requirement to optimize the charge
  • POWERFUL Two high-powered charging ports with 2.1A of charging power
  • CONVENIENT No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlet free for additional power needs
  • EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.
