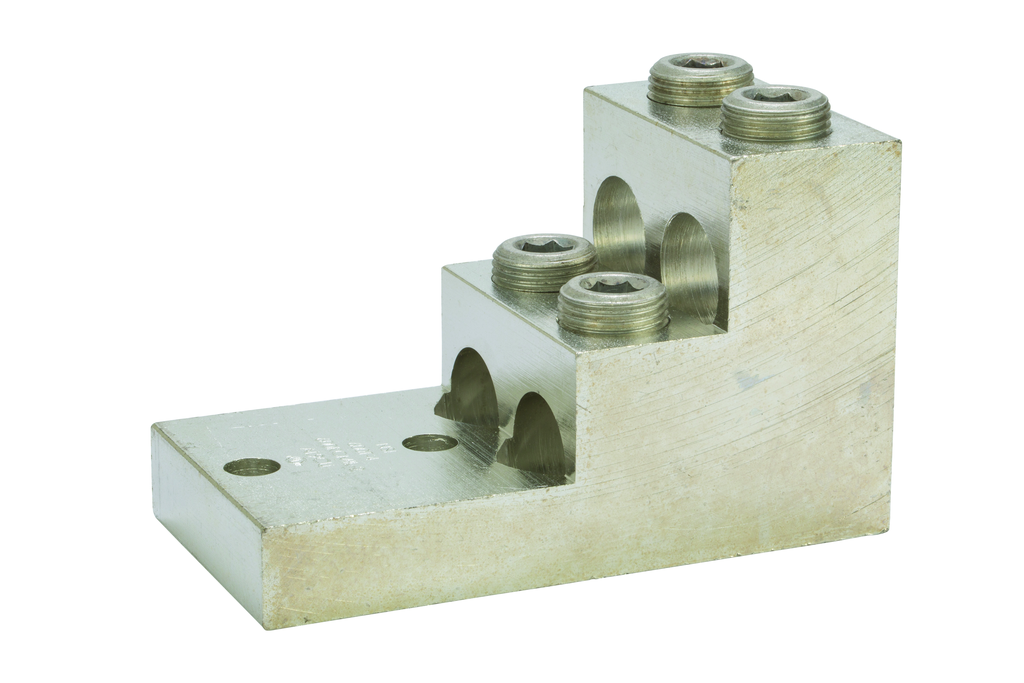

Product image for NSI 600T-4 13/32 Inch 2 AWG to 600 MCM Tinned Aluminum 4-Conductor Stacked Lug
Email

NSI 600T-4 13/32 Inch 2 AWG to 600 MCM Tinned Aluminum 4-Conductor Stacked Lug

Manufacturer: NSi | Catalog # 600T-4 | Cooper Electric Part # 13364
$87.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
4 Port Stacked Lug 600 MCM - 2 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
3/8 IN
Conductor Size
2 AWG
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
4
Number of Poles
1 Pole
Number of Ports
4
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Stacked Lug
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001849
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001849
Product UPC
66238100184

Dimensions

Height
3 Inch
Length
4.91 Inch
Warranty Length
1 yr
Width
2.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
Features
  • Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
