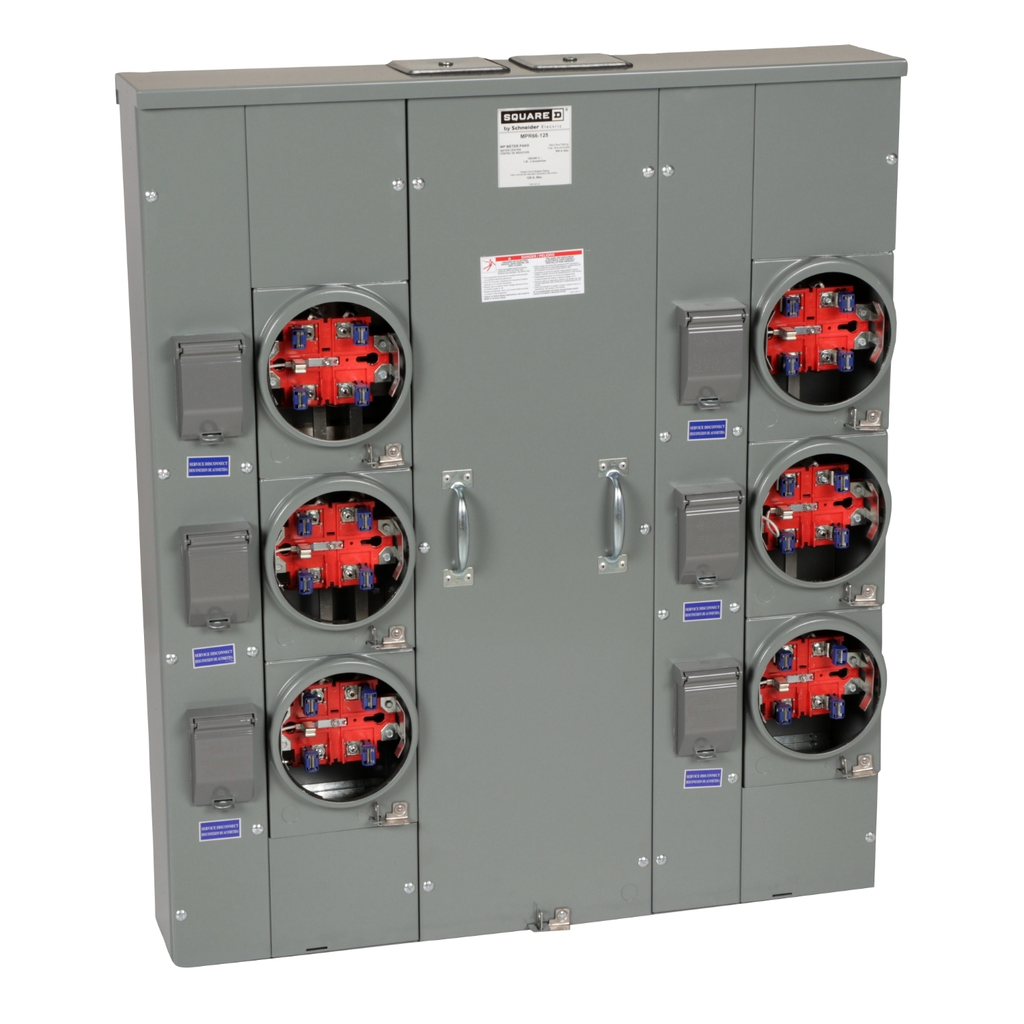

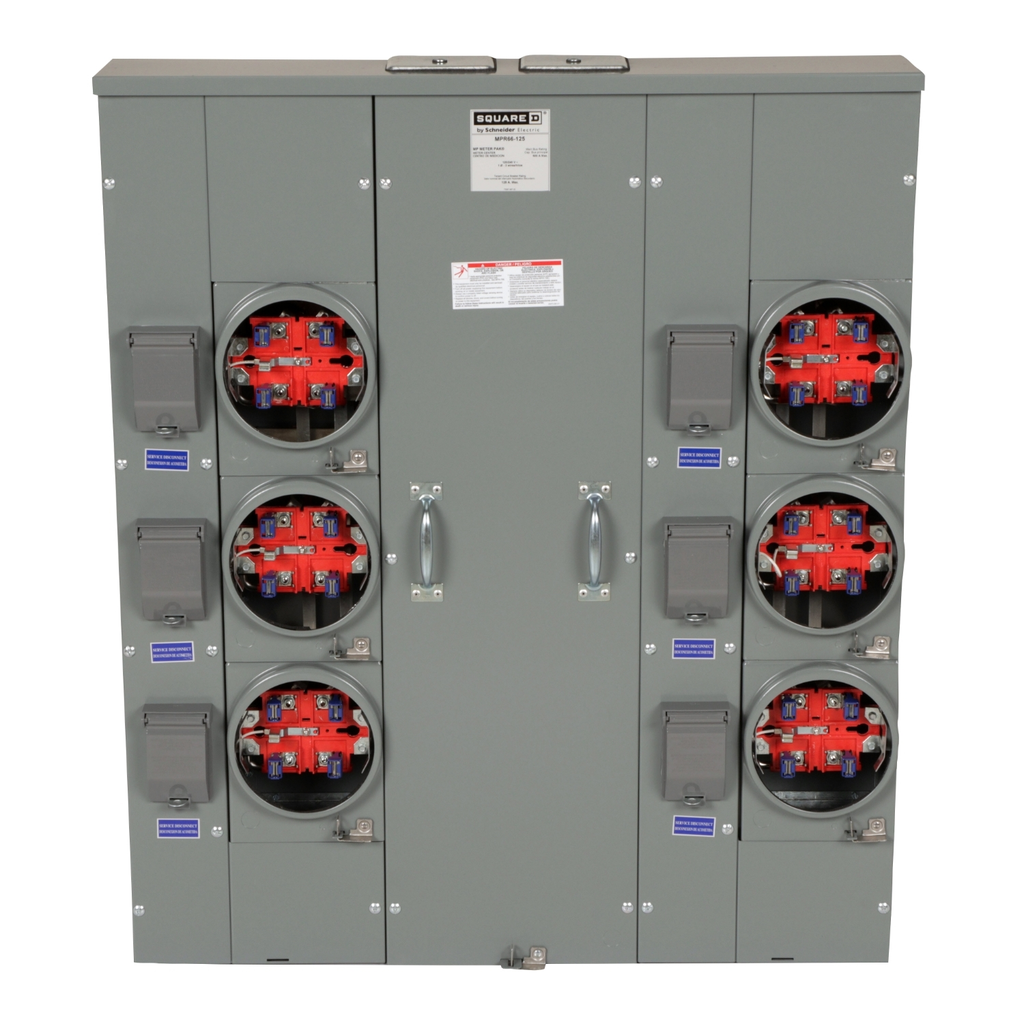

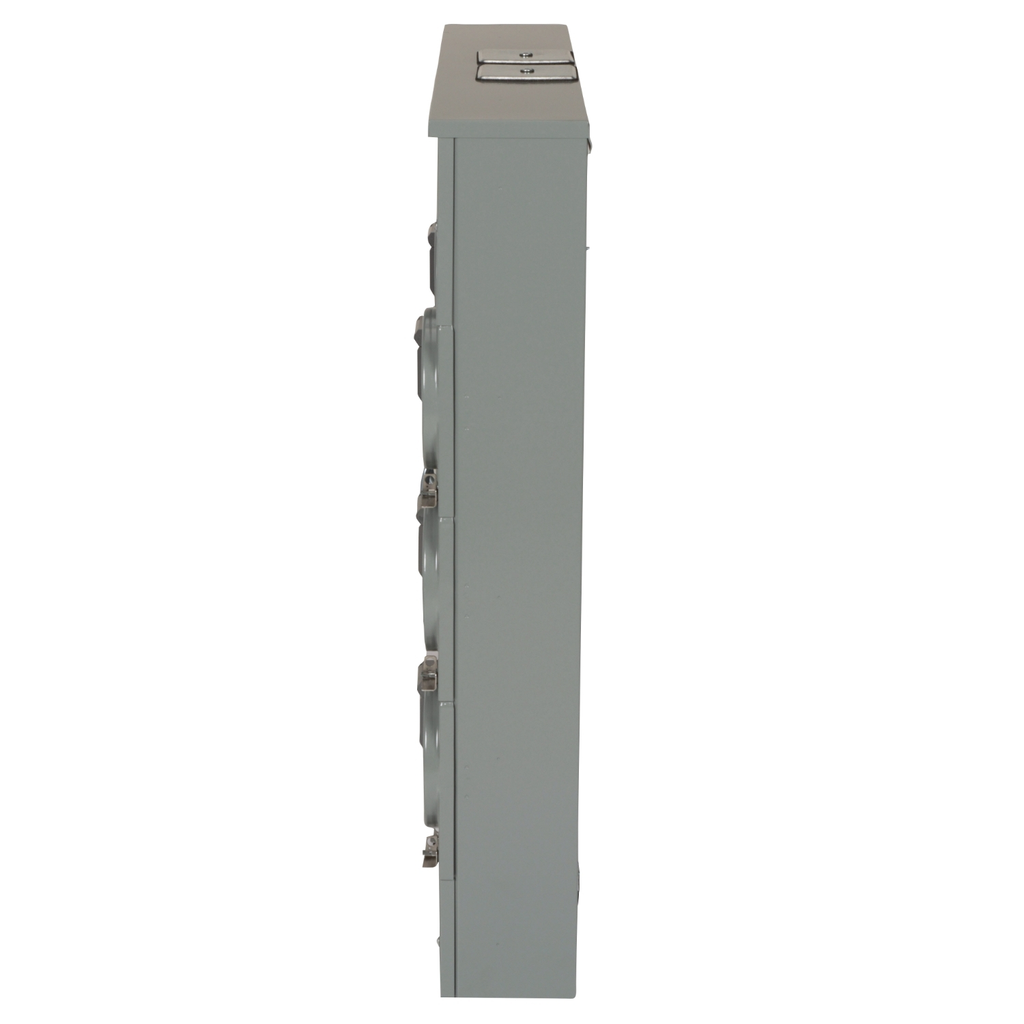

Square D MPR66125 600A Bus, 125A Max Breaker, 120/240VAC, 1P3W, 6-Socket, 5 Jaws, NEMA 3R Ringless Meter Center
Note: Installers Responsibility to Confirm Approved by Local Inspector

Manufacturer: Square-D / Schneider | Catalog # MPR66125 | Cooper Electric Part # 133607
$2,615.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 6 positions. It has no bypass and a 600 A main bus. This system is a ringless type.

Technical Information

Amperage
125 Amp
Bus Rating
600 A
Cable Entry
UG-OH
Conductor Size
1/0 AWG-600 kcmil
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Material
Aluminium: Busbar
NEMA Size
3R
Number of Jaws
5
Number of Phases
1 Phase
Size
42.37 in
Type
Ringless;Meter Center
Voltage
240 Volt
Wire Size
AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901208099
GTiN
00785901208099
Product UPC
78590120809

Dimensions

Depth
7.28 Inch
Height
42.37 Inch
Warranty Length
18 mth
Width
36.46 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
