3M 7000145516 Cold Shrink Insulator 8429-9, Tape/Wire/UniShield Shielding, 1 kV (10/case)

Manufacturer: 3M | Catalog # 7000145516 | Cooper Electric Part # 1335291
$142.81 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Catalog Page Product Spec Sheet Safety Data Sheet

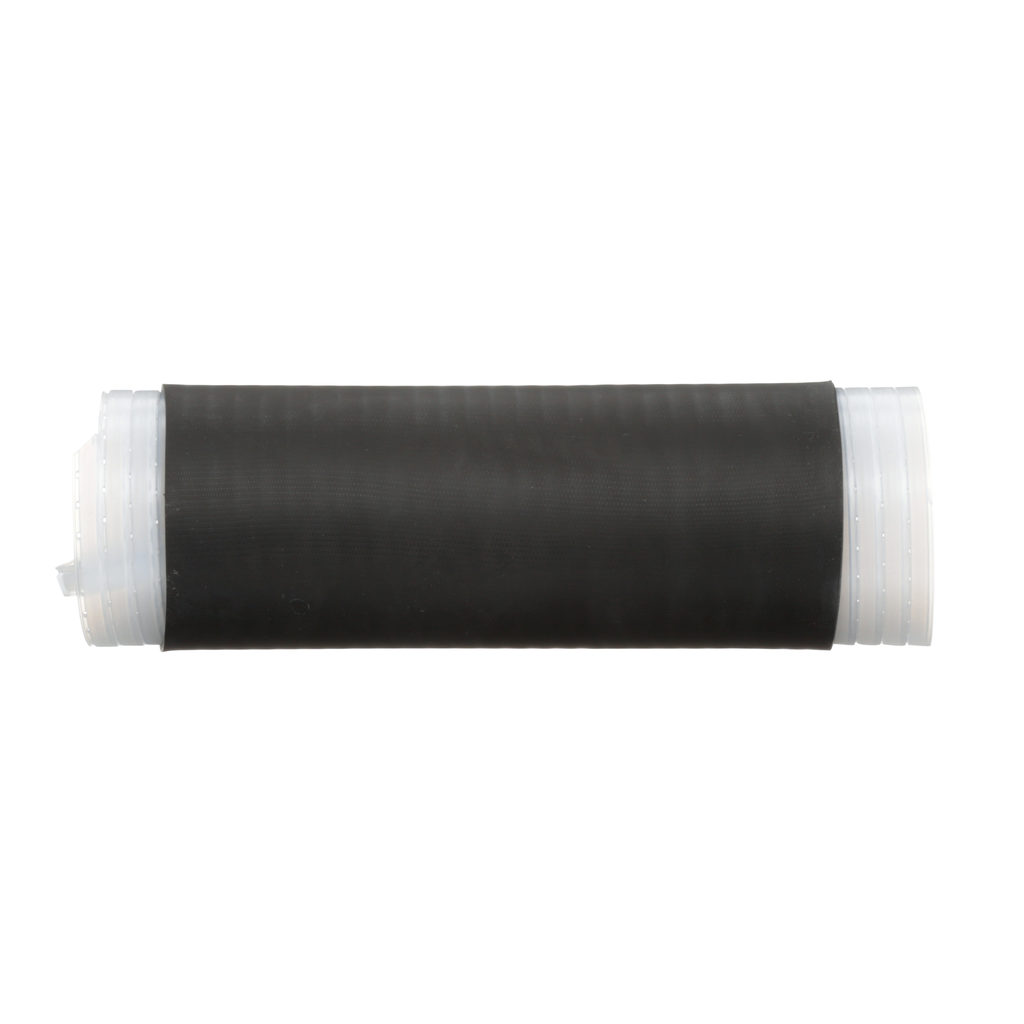

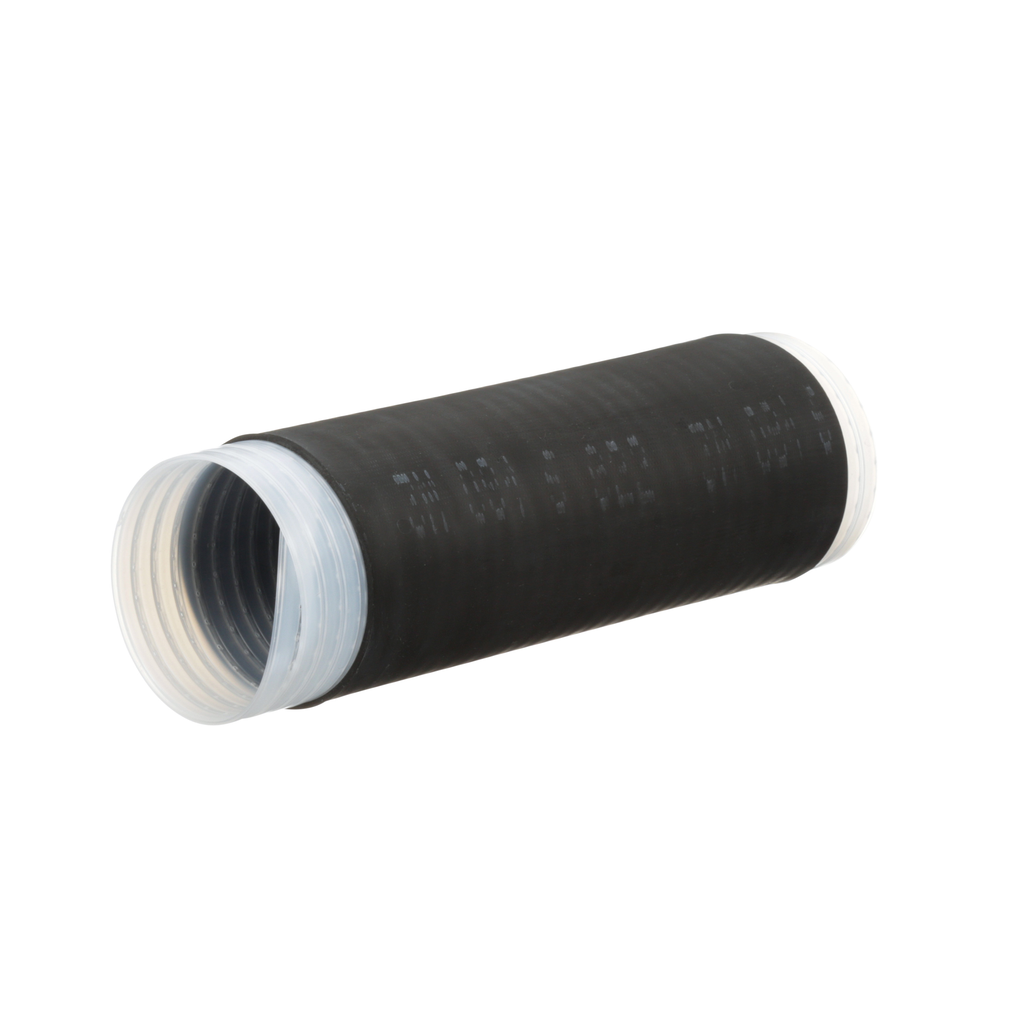

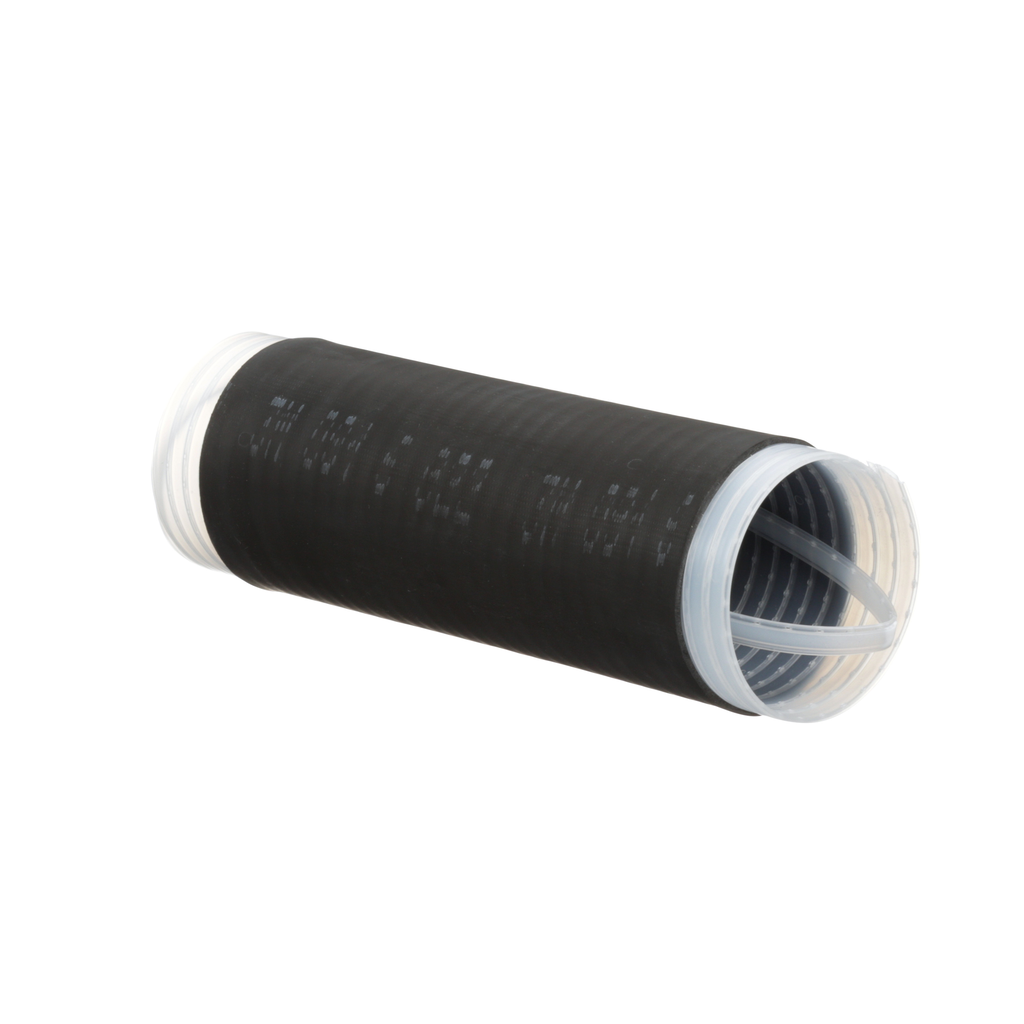

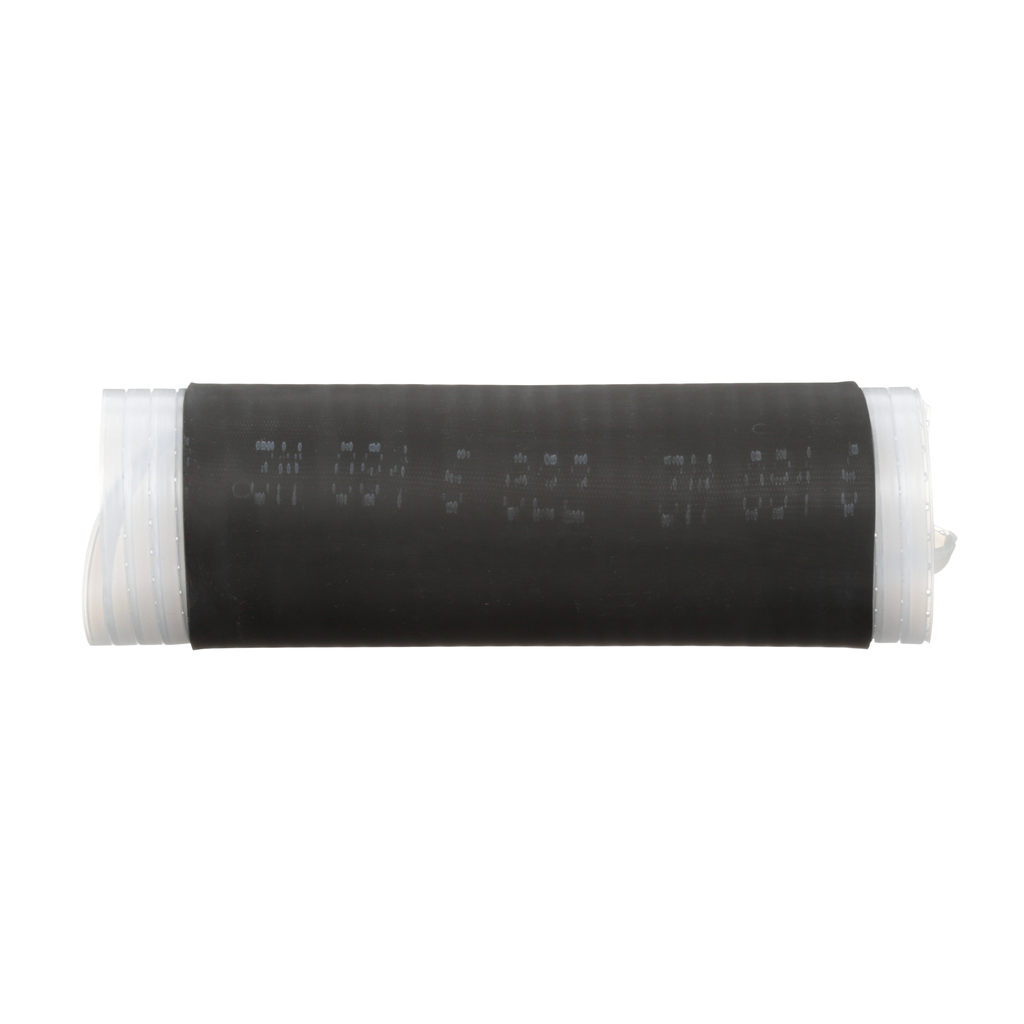

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Material
Copper,Aluminum
Conductor Size
1000 kcmil
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Size
1000 kcmil; 900 kcmil
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007099314
Color
Black
GTiN
00054007099314
Product Type
Splice
Product UPC
05400709931

Dimensions

Overall Length
9.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
  • HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis
  • EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand
  • BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
  • MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more
  • WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
