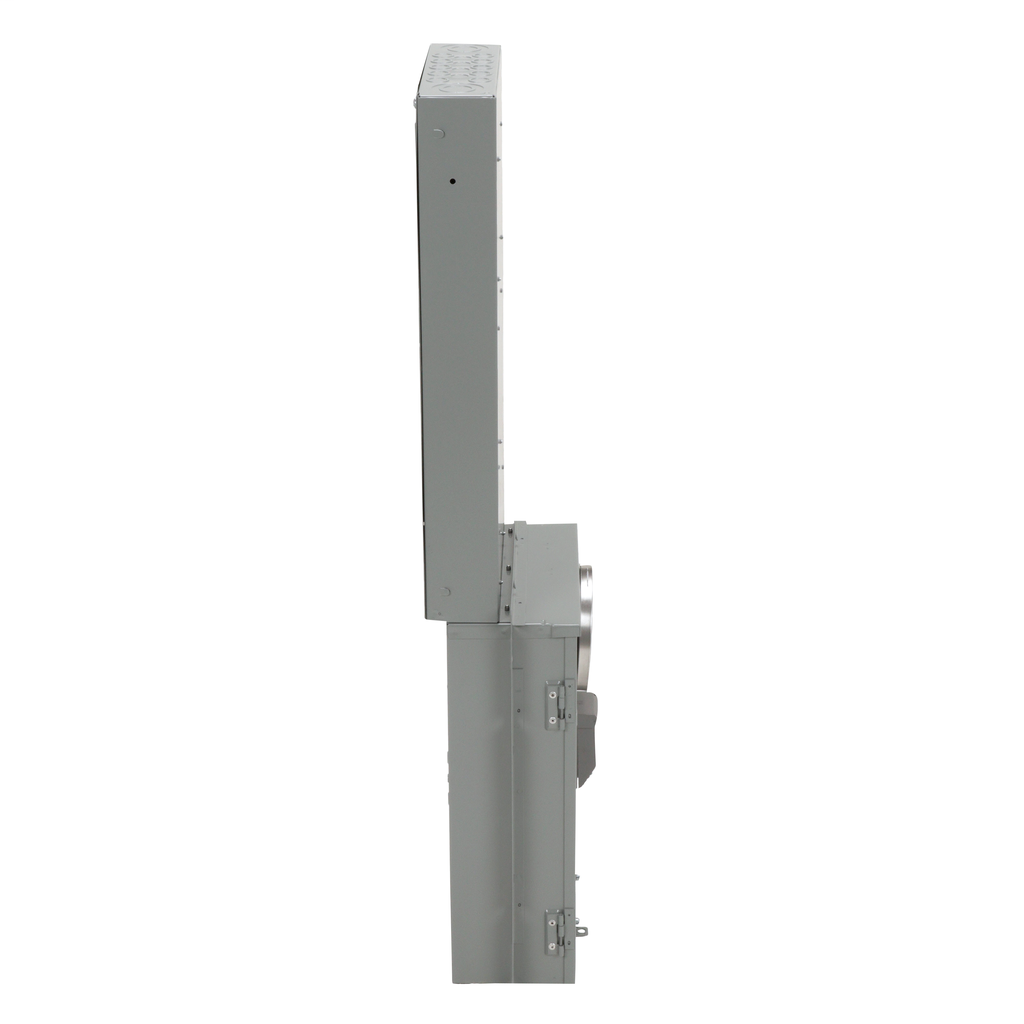

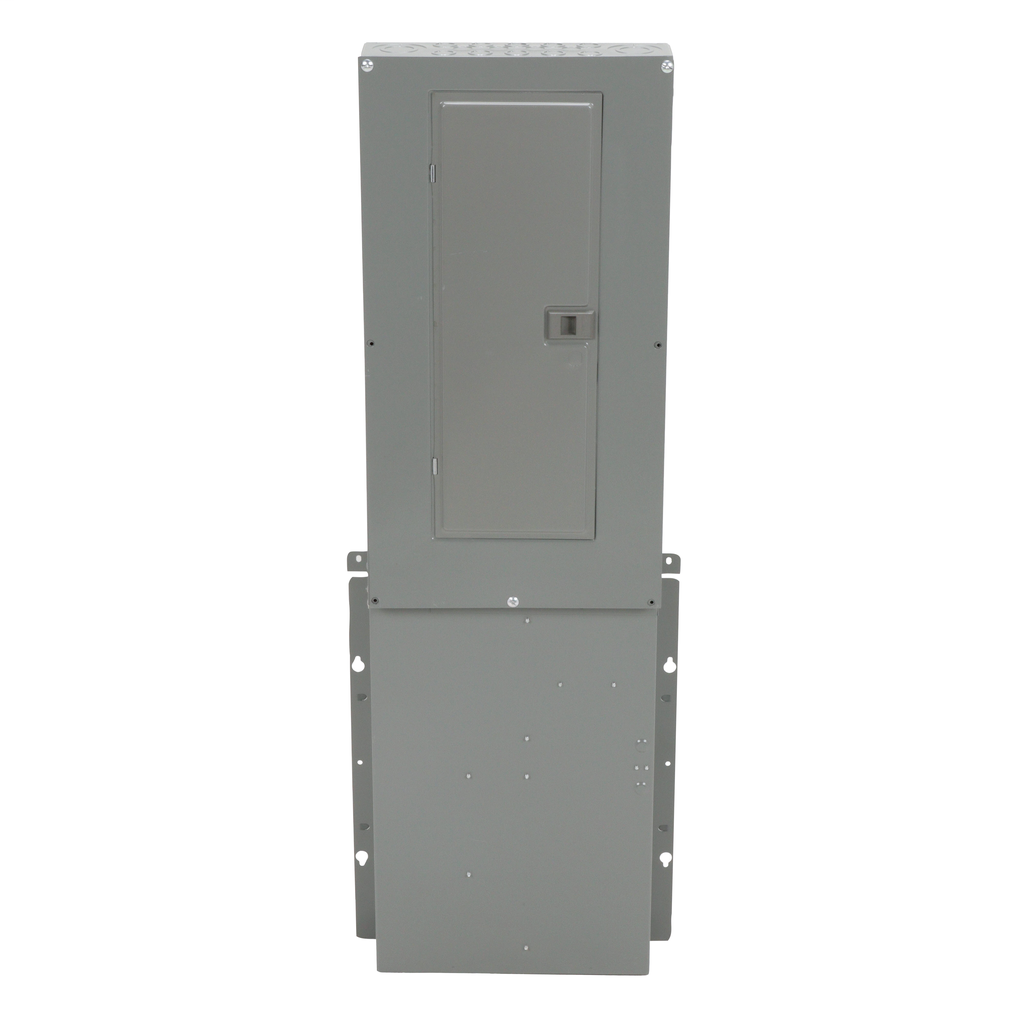

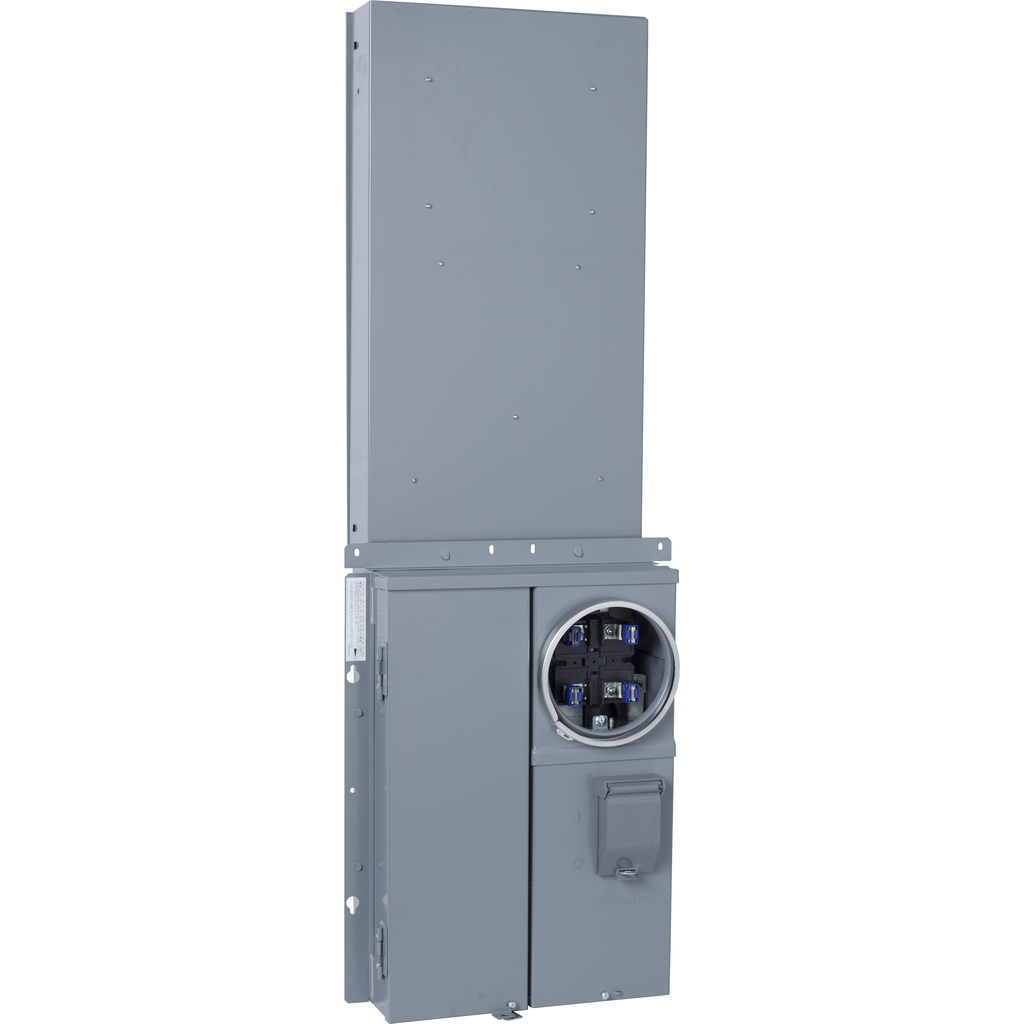

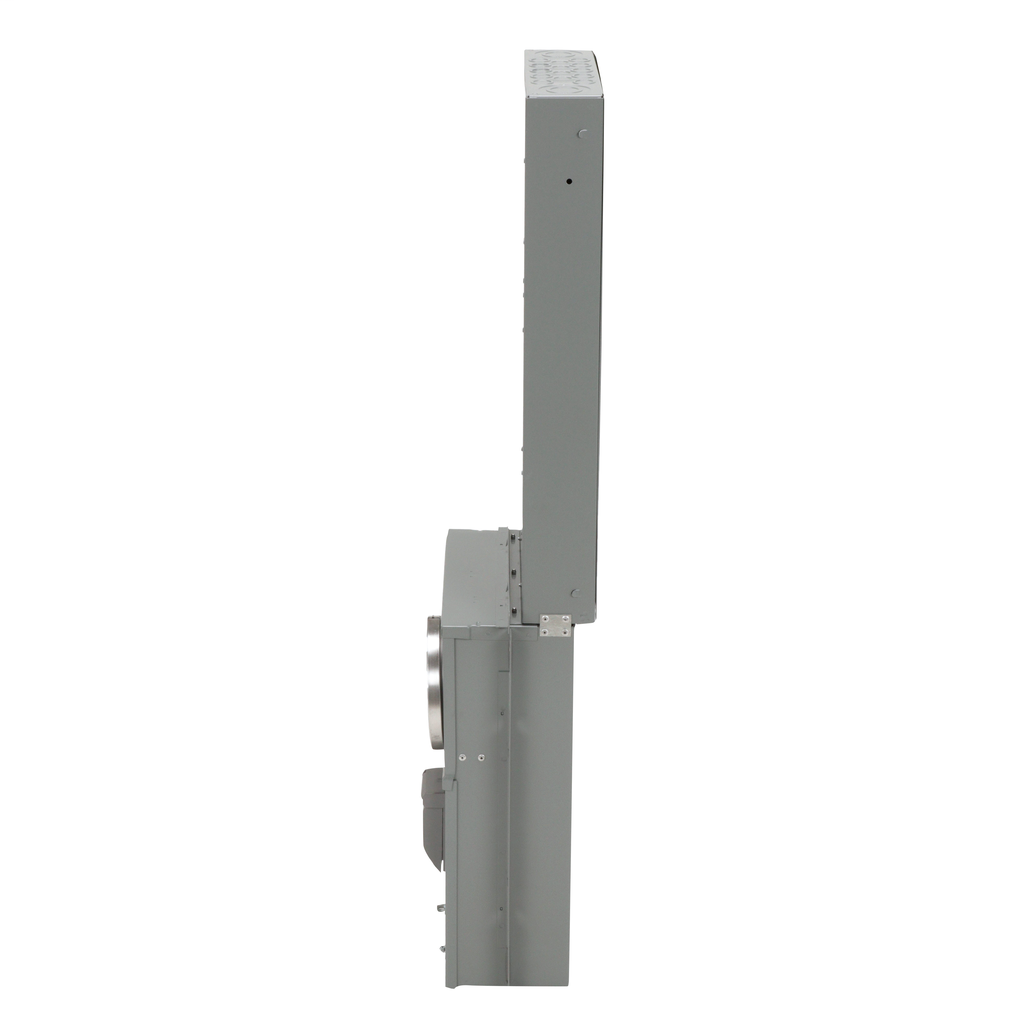

Square D SU3040M200R 200 Amp 1-Phase Underground Service Ring Type Combination Meter Main

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One reverse combination service entrance device has a ringed meter socket with no bypass. This service entrance device has a service disconnect with outdoor access and a load center with indoor access. This unit can be feed from an underground service. The service disconnect is a QOM2200VH circuit breaker with a maximum rating of 200 A. Device has a 10 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 48.00 inches tall, 14.62 inches wide and 7.90 inches deep. The service ground lug will accept 6 AWG to 300 kcmil copper or aluminum wire. The service ground lug will accept 12 AWG to 1/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
