NUT-BRO XB50L1 50CFM BATH FAN/LIGHT

Manufacturer: Nutone | Catalog # XB50L1 | Cooper Electric Part # 1334363
$322.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual

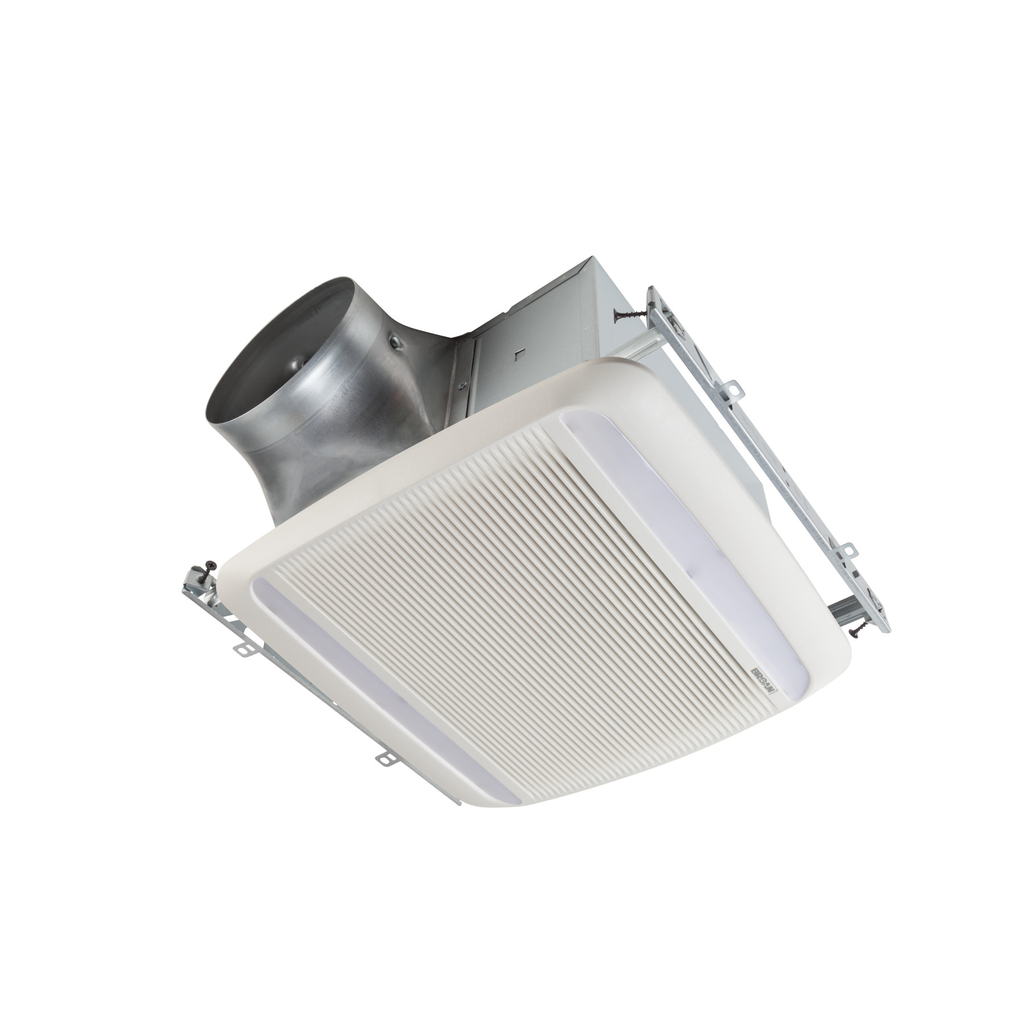

Enjoy fast, easy installation with the Broan® XB50L1 ULTRA GREEN™ 50 CFM Ceiling Exhaust Bath Fan with LED Light. Now you can experience outstanding ventilating power that will quickly clear annoying steam and help prevent mold and mildew. Combine this with extremely quiet operation and energy efficiency in a product that can be retrofit installed entirely from the room-side, creating a relaxing, comfortable bathroom environment. This ENERGY STAR® fan includes dimmable LED lighting to keep your bathroom illuminated whenever you need.

Technical Information

Airflow Rate
50 CFM
Amperage
0.3 Amp
Bulb Included
Yes
Color Temperature
3000 K
Correlated Color Temp
3000 K
Duct Shape
Round
Duct Size
4 in
Light Type
LED
Lumens
1,057 Lumen
Mounting Type
Ceiling
Nightlight
No
Voltage
120 Volt
Wattage
4.9 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715252473
Color
White
Housing Material
Galvanized
Product UPC
02671525247
Weight
12.33 lb

Dimensions

Grille Length
13-3/4 in
Grille Width
14-1/4 in
Height
7-5/8 Inch
Housing Height
7-5/8 in
Housing Width
11-3/8 in
Length
10-1/2 Inch
Warranty Length
3 yr
Width
14.25 in

Certifications and Compliance

Country of Origin
China
Features
  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom

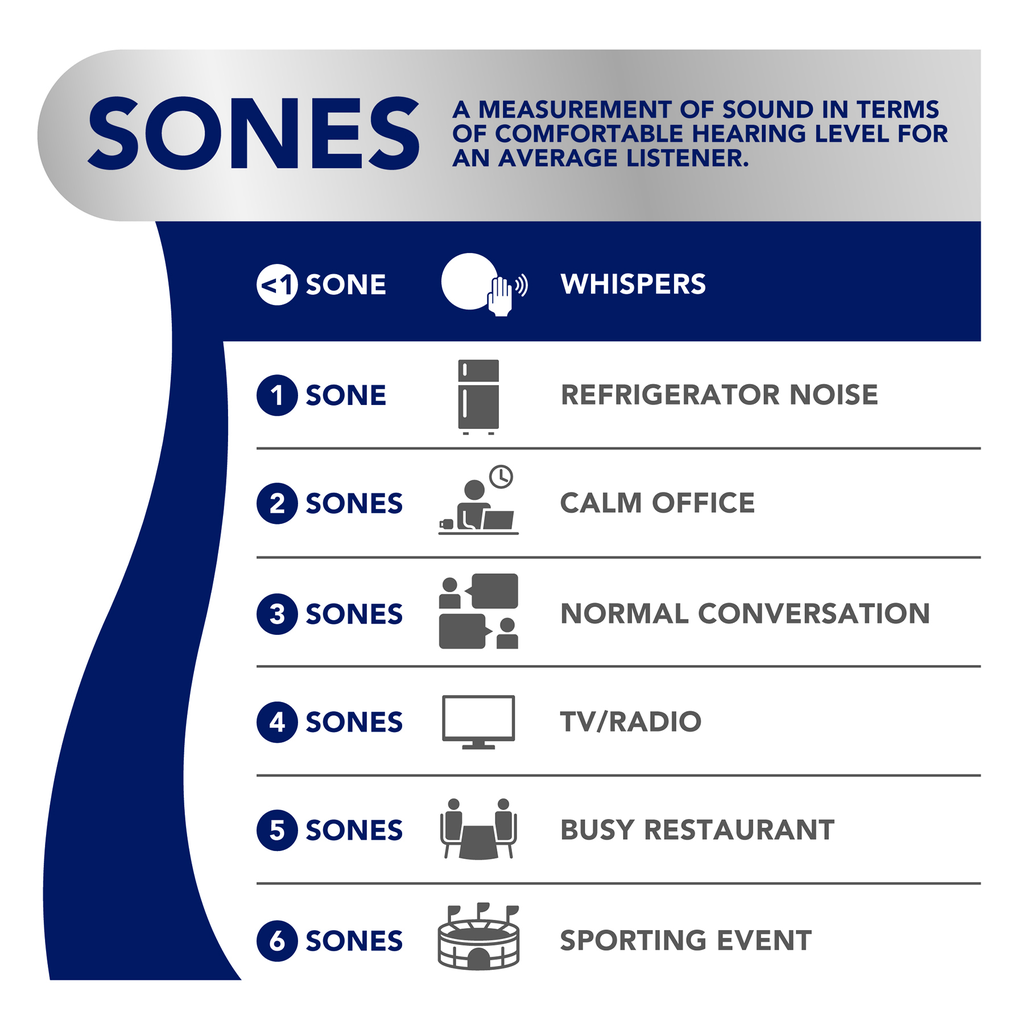

  • <0.3 Sones for Ultra quiet performance, you might not notice it's on
  • Bright 3000K energy efficient LED lighting to help illuminate your room
  • ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws

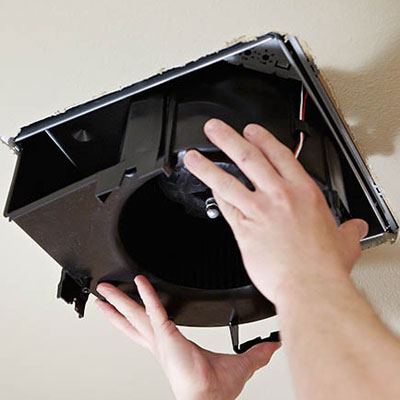

  • Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
  • Mounting Frame fits any type of joist, I-Joist or truss construction for a \"no guesswork\" installation to make the work fast and easy
  • ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
  • UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
  • Title 24 compliant
  • Powerful enough for rooms up to 45 sq. ft.
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture
  • Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
  • Very quiet, energy efficient exhaust fan with LED light
  • Powerful enough for rooms (including bathroom) up to 45 sq. ft.
  • Easy to install and/or replace existing product for DIY'ers
Includes
  • Integrated led module
