WAGO 221-612/K194-4045 lvr-NUTS® sp

Manufacturer: Wago | Catalog # 221-612/K194-4045 | Cooper Electric Part # 1333197
$61.43/ea
bx
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times

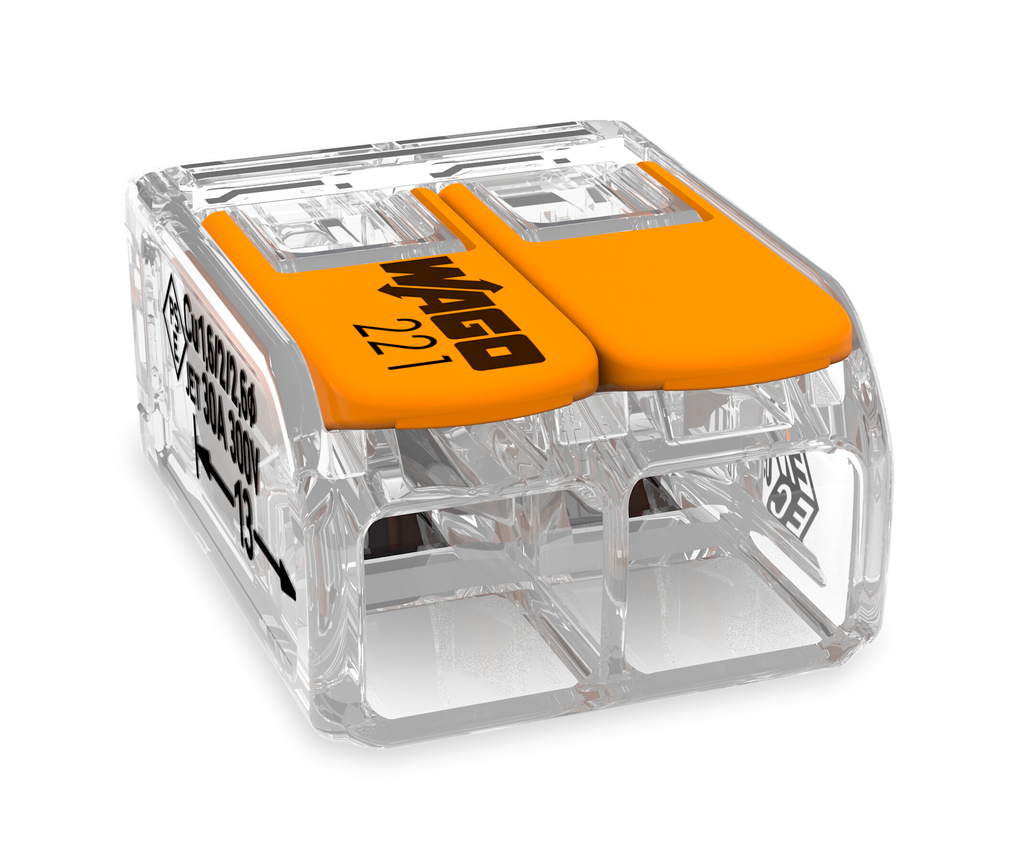

LEVER-NUTS® splicing connector; 2-conductor with operating levers; 20-10 AWG; transparent housing; Box of 50 pieces

Technical Information

Actuator
Lever
Amperage
41 Amp
Conductor Material
Copper
Conductor Size
20-12 AWG Solid/Stranded/Finely Stranded
Connection Type
Push-In
Contact Material
Copper
Current
41 Amp
Flamability Class
V2
Insulation Material
Polycarbonate
Number of Conductors
2
Number of Connections
2
Operating Temperature
105 degrees C
Strip Length
0.55 in
Temperature Rating
85 degrees C
Type
Compact
Voltage
600 Volt

Manufacturer Information

Brand
Wago
Sub Brand
Lever-Nuts™

General Product Info

12-Digit UPC
4055143715638
Color
Orange/Transparent
GTiN
04055143715638
Product UPC
05514371563
Weight
3.024 g

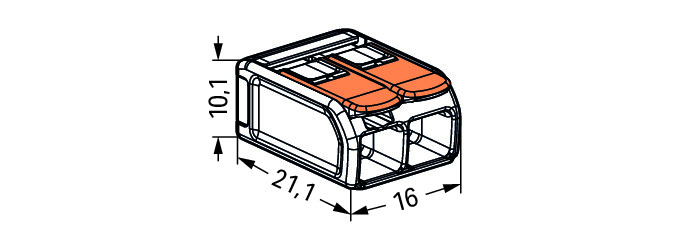

Dimensions

Depth
0.831 Inch
Height
0.398 Inch
Length
0.831 Inch
Width
0.63 in

Certifications and Compliance

Country of Origin
Switzerland
  • Ease of use pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.5 to 6 mm²
  • Connection of all conductor types
  • Time savings for installers and device manufacturers
  • Quickly install devices with higher levels of power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible
Approvals
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
  • DEKRA Certification B.V., KEMA/KEUR, 71-105677, EN 60998
  • Lloyds Register, LR, 04/20013 (E8), EN 60998
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA, EN 60998
  • UL International Germany GmbH, UL, E69654, UL 486C
  • UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467
