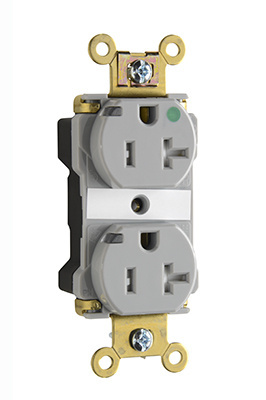

Product image for P&S PTTR8200PII 15A 125V PLUGTAIL T
Email

P&S PTTR8200PII 15A 125V PLUGTAIL T

Manufacturer: Pass & Seymour / Legrand | Catalog # PTTR8200PII | Cooper Electric Part # 1333071
$60.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Built for the harshest medical environments, Pass and Seymour power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety. For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Capacity
Duplex
Conductor Size
12 AWG
Connection Type
PlugTail
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
.866" (D) x 1.625" (W) x 3.281" (H)
TC Connection
PlugTail
Temperature Rating
60 degrees C
Termination Type
PlugTail
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007041392
Color
Ivory
GTiN
00785007041392
Product Series
PlugTail
Product UPC
78500704139

Dimensions

Depth
0.866 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Wire Size: #12 AWG THHN
Certifications
  • cULus Listed
  • Federal Spec Listed
