Burndy QDA34 Copper Terminal, 1 Hole, 400-500 kcmil, 3/4" Stud, 1 Screw

Manufacturer: Burndy | Catalog # QDA34 | Cooper Electric Part # 1327771
$344.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Copper Terminal, 1 Hole, 400-500 kcmil, 3/4" Stud, 1 Screw

Technical Information

Applications
For Joining A Wide Range Of Copper Cable To Equipment Studs
Conductor Size
400 kcmil
Connection Type
Terminal
Material
Copper
Plated?
No
Plating Type
Unplated
Stud Size
3/4 in
Type
Bolted Lugs & Terminals

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810325568
GTiN
00781810325568
Product UPC
78181032556

Dimensions

Height
2 Inch
Hole Size
21 mm
Length
3.63 Inch
Overall Length
3.63 in
Pad Width
1.88 in
Thickness
5/16 in
Width
1.88 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Conductor Type
  • CU C Str-Size
  • CU C Str Navy-Size
Features

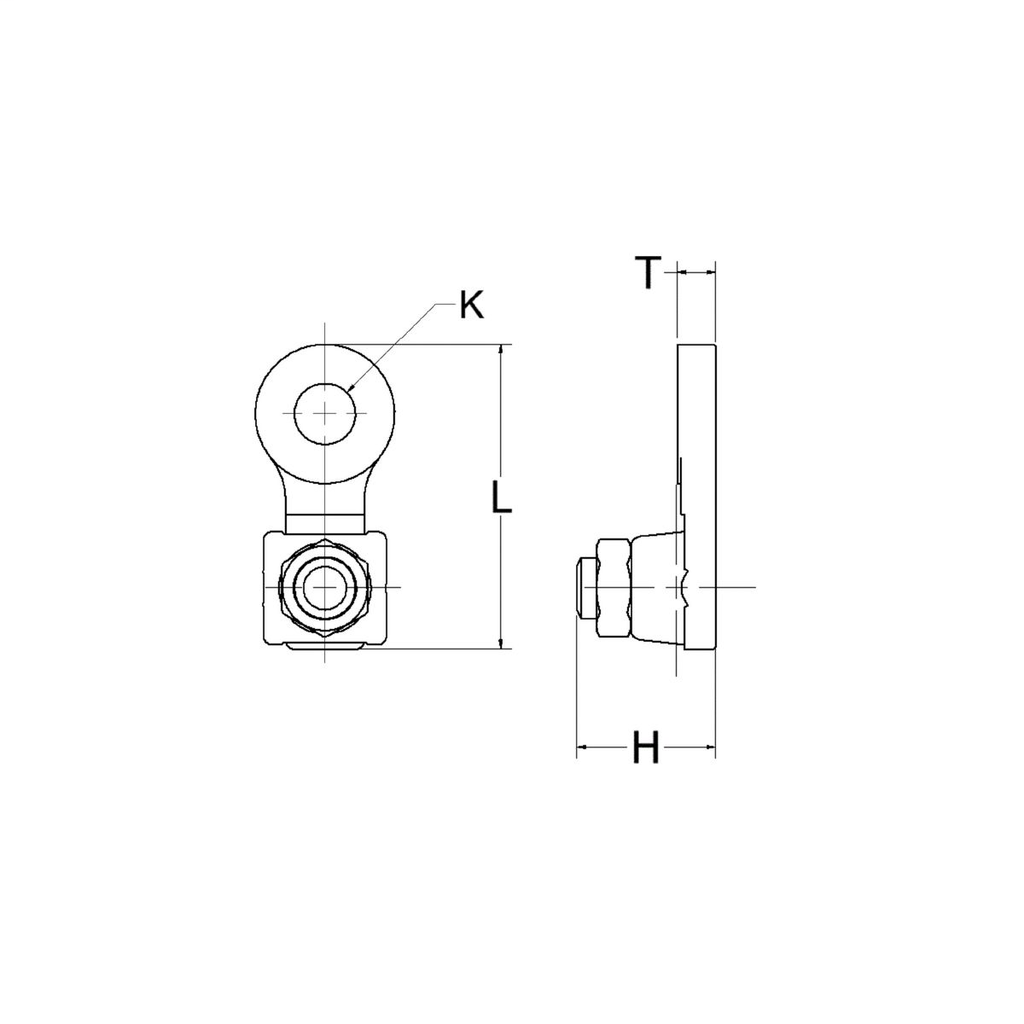

  • Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Dimension T: 5/16 IN, Stud/bolt Hole Size: 3/4 IN, Dimension K: 13/16 IN, Tongue Width: 1-7/8 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Height: 2 IN, Length: 3-5/8 IN, Installation Torque: 375 IN-LB
