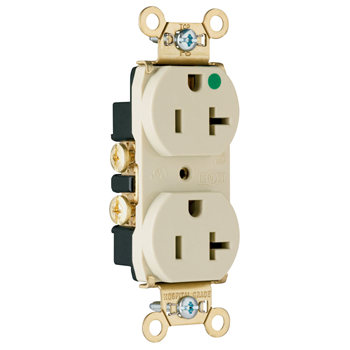

Product image for P&S PS8300HSLA HOSP DUP REC 20A 125
Email

P&S PS8300HSLA HOSP DUP REC 20A 125

Manufacturer: Pass & Seymour / Legrand | Catalog # PS8300HSLA | Cooper Electric Part # 1327749
$41.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy-Duty Hospital Grade Smooth Face Duplex Receptacle Back and Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
Style
Smooth Face
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Compact Design, Receptacle
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007307191
Color
Light Almond
GTiN
00785007307191
Product UPC
78500730719
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Two drive screws anchor strap to back body and face.
  • Tri-drive brass terminal screws.
  • Internal screw-presure-plate back and side wire capability.
  • Two back wire holes for more wiring flexibility.
  • Auto-ground clip assures positive ground.
  • Smooth face version features an impact-resistant nylon face for ease of cleaning and less dirt build-up.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
