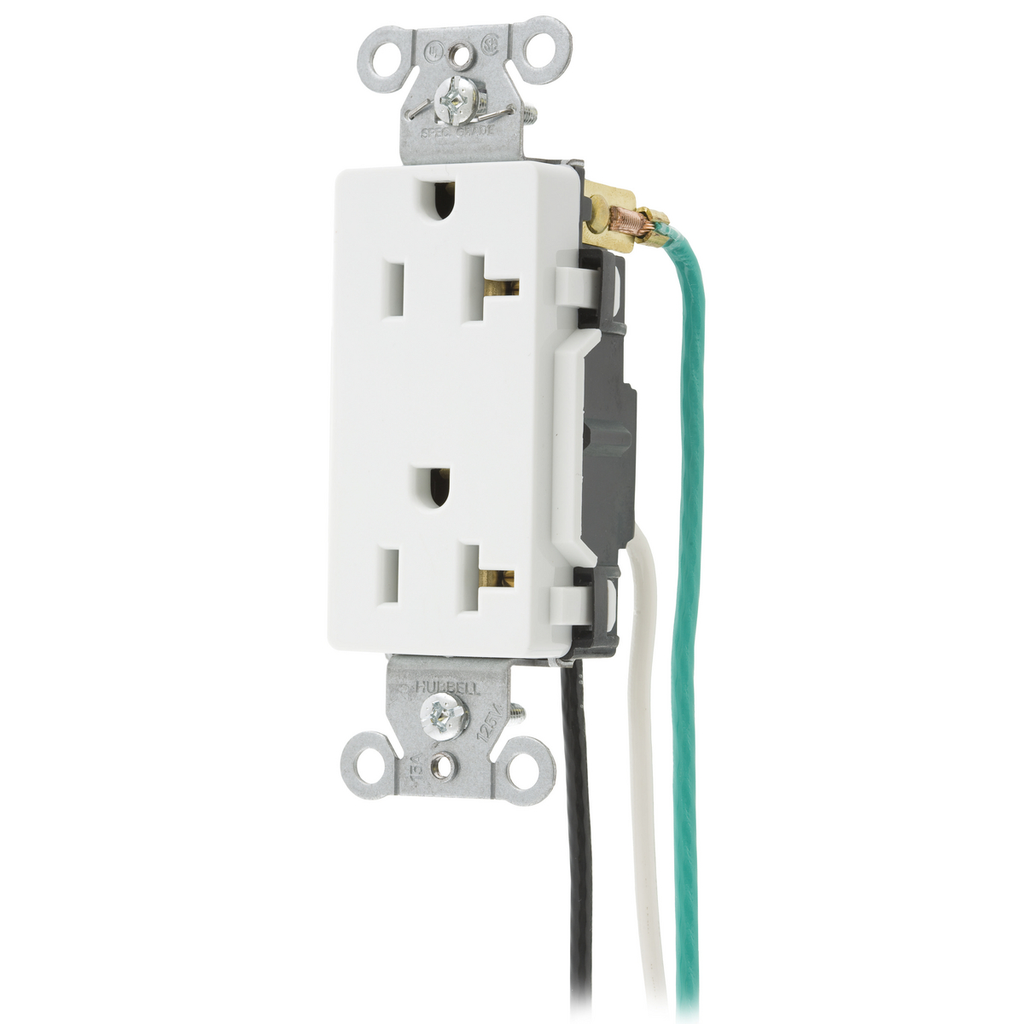

Product image for HCI DR20WHIP1 DR20WHI W/ 8" SOLID L
Email

HCI DR20WHIP1 DR20WHI W/ 8" SOLID L

Manufacturer: Hubbell Wiring Device | Catalog # DR20WHIP1 | Cooper Electric Part # 1327461
$11.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacle, Decorator Duplex, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White, Pre- Wired 8" Solid Leads.

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Base Material
Nylon,Nylon
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Commercial
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Solid Wire Leads
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585146409
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585146409
Product Series
Commercial Specification Grade
Product UPC
78358514640
Weight
0.2 lb

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.09 in

Certifications and Compliance

Country of Origin
China
Features
  • Fully insulated design with 8-inch solid wire leads
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Triple wipe contacts
  • Self Grounding
