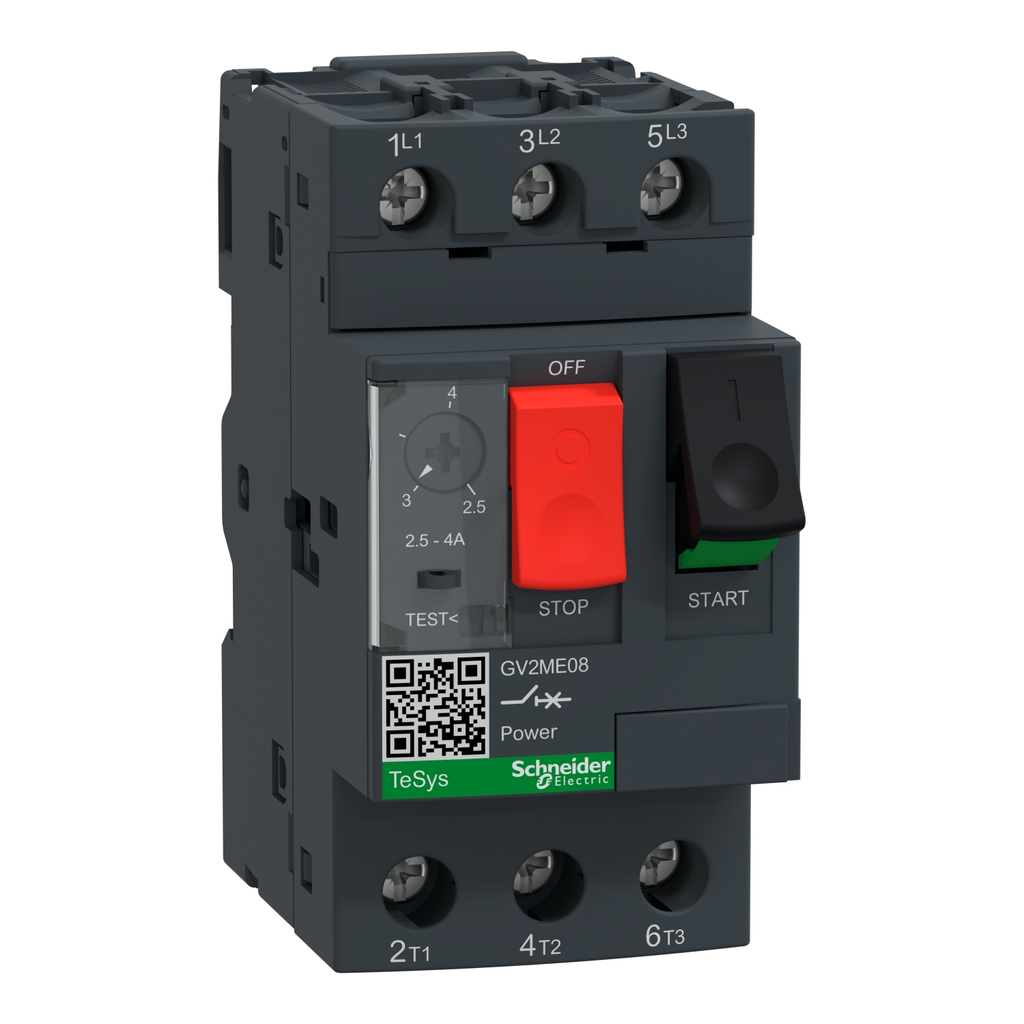

Square D GV2ME08 3-Pole 600 VAC 4 Amp Manual Starter

Manufacturer: Square-D / Schneider | Catalog # GV2ME08 | Cooper Electric Part # 132140
$179.93/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
2 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 2.5 ampere to 4 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
4 Amp
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
4 A
Net Weight
0.26 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 2.5A TO 4.0A
Size
45 MM,78.5 MM,89 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA FLEXIBLE WITH CABLE END
Trip Point
51-51 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2ME,TESYS,TESYS GV2

General Product Info

12-Digit UPC
338911034303
Color
Gray
GTiN
03389110343090
Product UPC
38911034309
Weight
0.26 kg

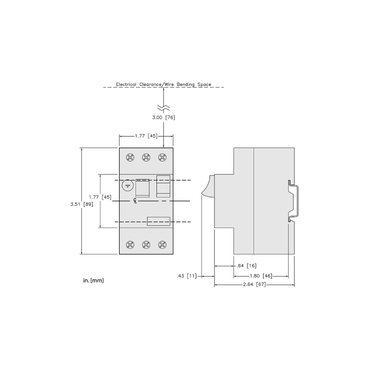

Dimensions

Depth
3.09 in
Height
3.5 in
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Thailand
Connections Terminals
  • power circuit screw clamp terminal 2 1-6 mm²solid
  • powe
ITH Conventional Free Air Thermal Current
  • 4 A IEC 60947-2
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=GV2M-0-OD&p_File_name=GV2M-0-OD.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0003997_3D-CAD&p_File_name=MCADPD0003997_3D-simplified.stp
  • https://download.schneider-electric.com
Thermal Protection Adjustment Range
  • 2.5-4 A IEC 60947-2
IP Degree Of Protection
  • IP20 IEC 60529
Range Of Product
  • TeSys GV2
  • TeSys Deca
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.030708166555192606
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.6531889958637732
  • 0.7 kg CO2 eq.
Standards
  • EN/IEC 60947-2
  • EN/IEC 60947-4-1
  • UL 60947-4-1
  • CSA C22.2 No 60947-4-1
  • IEC/EN 60335-2-40:Annex JJ
  • IEC/EN 60335-1:Clause 30.2
ICS Rated Service Short Circuit Breaking Capacity
  • 100 % 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 % 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 % 400/415
Related Products
  • GVAE11
  • GVAN11
  • GVAE1
  • GVAE20
  • GVAD1010
  • GV2AF3
  • GV1G09
  • GV2G445
  • GV2G245
  • GV2G345
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 1 kg CO2 eq.
  • 1.4935293714724507
Rated Duty
  • uninterrupted IEC 60947-4-1
UI Rated Insulation Voltage
  • 690 V AC 50/60 Hz IEC 60947-2
Electrical Durability
  • 100000 cycles AC-3 415 V In
  • 100000 cycles AC-3e 415 V In
Fixing Mode
  • 35 mm symmetrical DIN rail clipped
  • panel screwed with adaptor plate)
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Fire Resistance
  • 960 °C IEC 60695-2-11
Motor Power KW
  • 1.1-1.1 kW 400/415 V AC 50/60 Hz
  • 1.5-1.5 kW 400/415 V AC 50/60 Hz
  • 1.5-1.5 kW 400/415 V AC
Add Ons
  • GVAE11
  • GVAN11
  • GVAE1
  • GVAE20
  • GVAD1010
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 40 kg CO2 eq.
  • 40.392
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.08151209601742003
  • 0.1 kg CO2 eq.
Tightening Torque
  • 1.7 N.m screw clamp terminal
Mechanical Robustness
  • shocks 30 Gn for 11 ms
  • vibrations 5 Gn, 5...150 Hz
Network Frequency
  • 50/60 Hz IEC 60947-2
Suitability For Isolation
  • yes IEC 60947-1
Utilisation Category
  • category A IEC 60947-2
  • AC-3 IEC 60947-4-1
  • AC-3e IEC 60947-4-1
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 690 V AC 50/60 Hz IEC 60947-2
Phase Failure Sensitivity
  • yes IEC 60947-4-1
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-2
