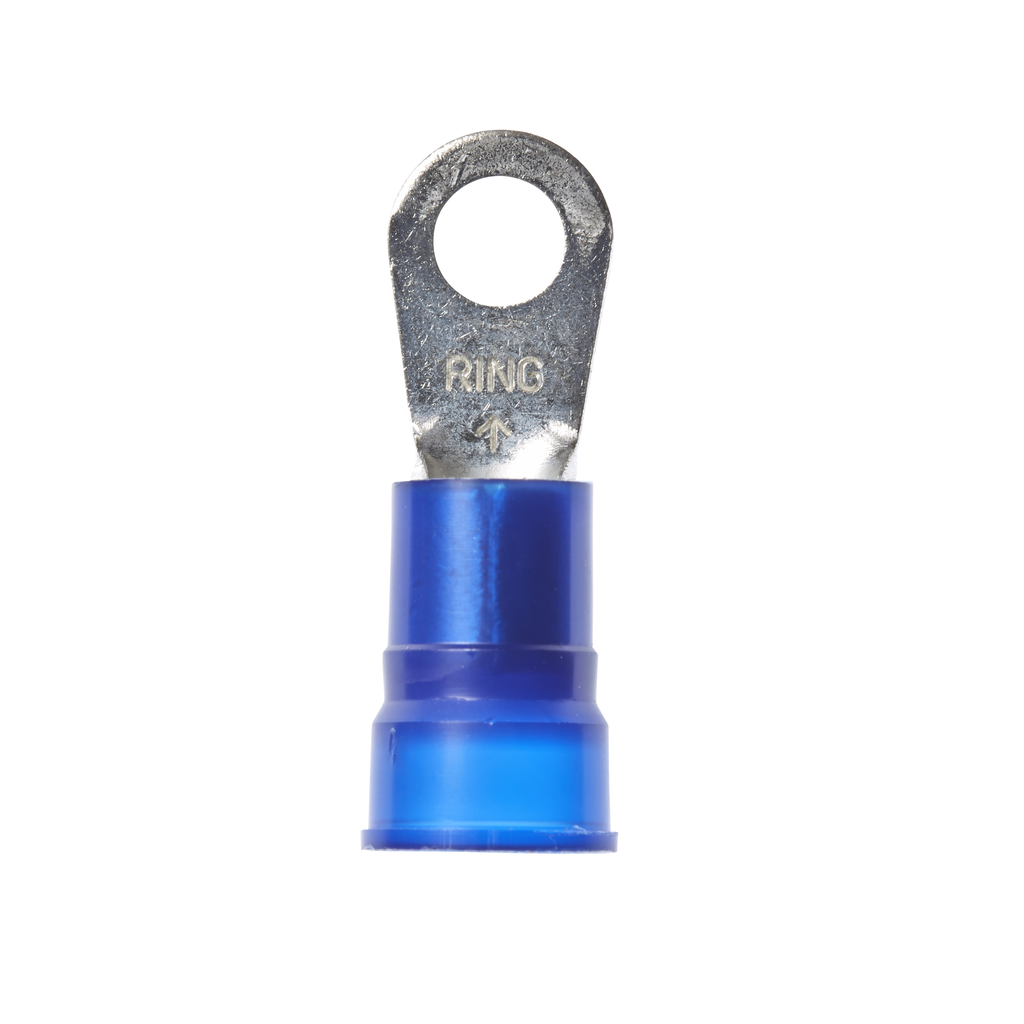

Product image for 3M 7000132147 3M™ Scotchlok™ Nylon
Image thumbnail 0
Image thumbnail 1
Email

3M 7000132147 3M™ Scotchlok™ Nylon

Manufacturer: 3M | Catalog # 7000132147 | Cooper Electric Part # 1320626
$3.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

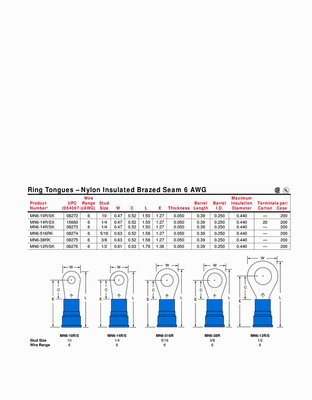

Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel that can withstand temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). The electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Its ring shape is the safest and most reliable, because it cannot be removed unless mounting screw is removed. 3M™ Scotchlok™ Ring Tongue Terminals are colour-coded for quick and easy identification of the wire size required.

Technical Information

Barrel Length
0.39 in
Barrel Type
Brazed
Conductor Size
6 AWG
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
1/4 in
Terminal Size
6 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Bell End

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007082736
Color
Blue
GTiN
00054007082736
Product UPC
05400708273

Dimensions

Length
1-1/2 Inch
Overall Length
1.5 in
Thickness
0.05 in
Width
0.47 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
