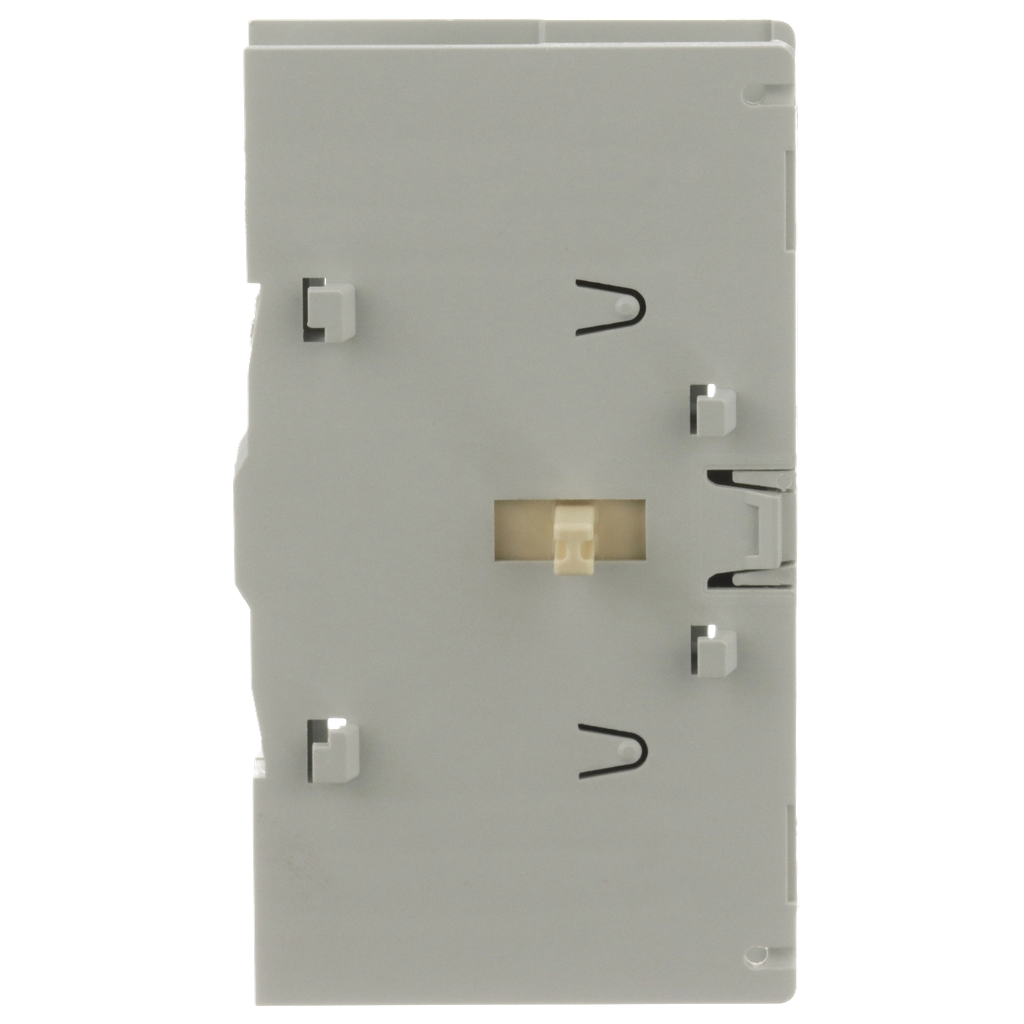

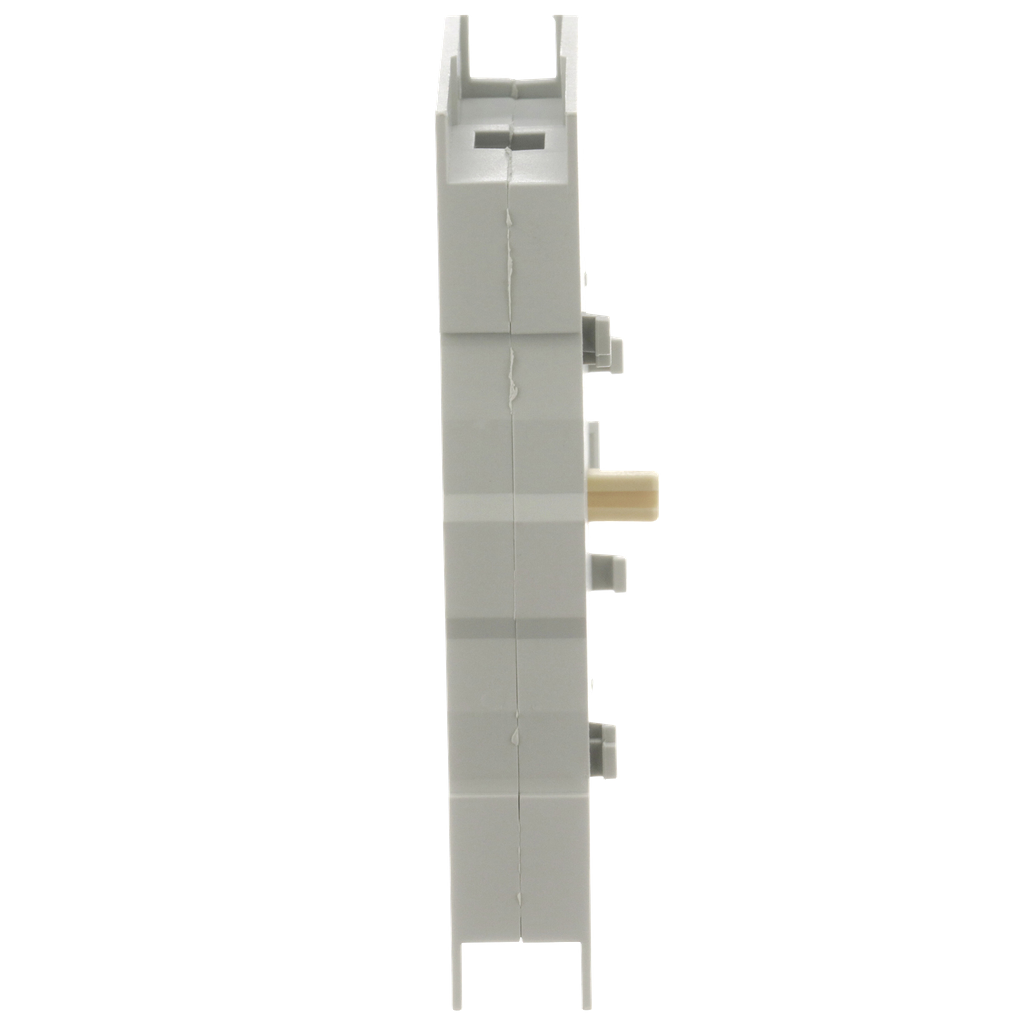

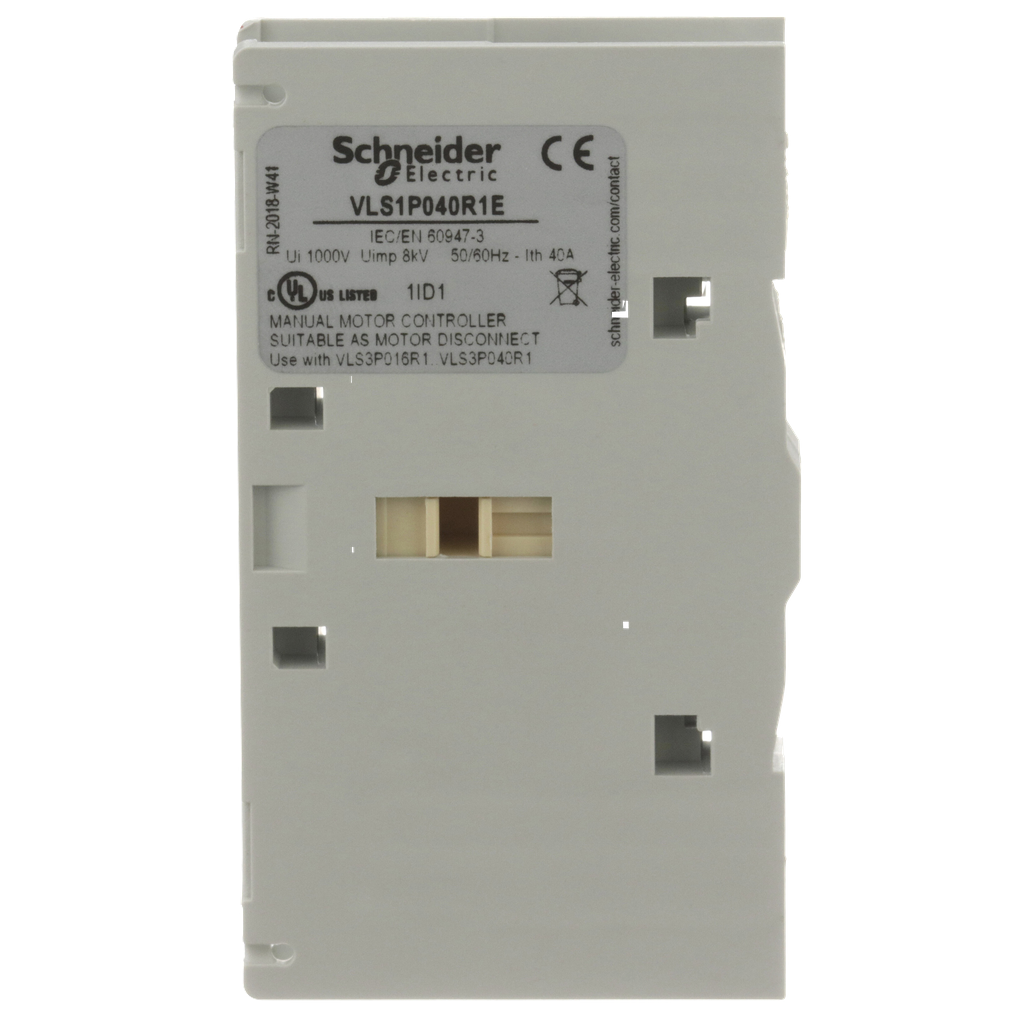

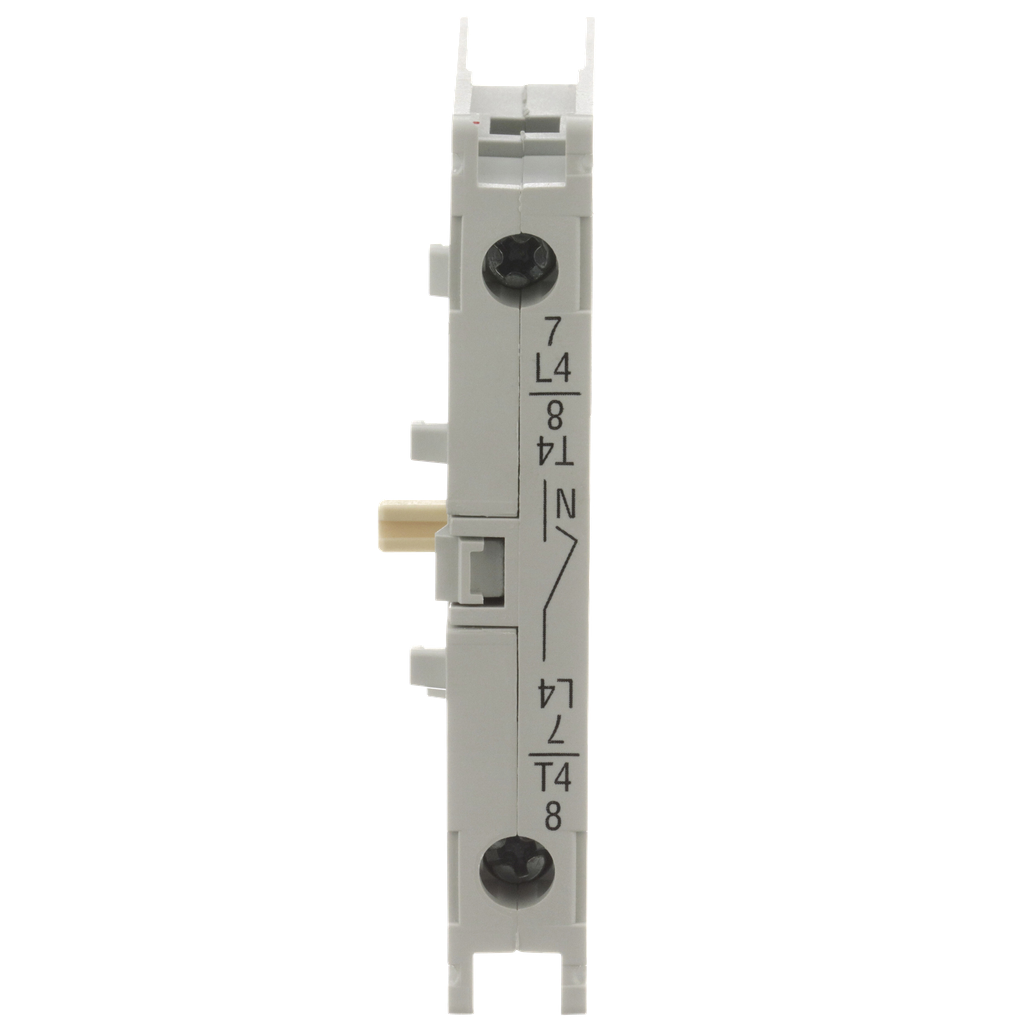

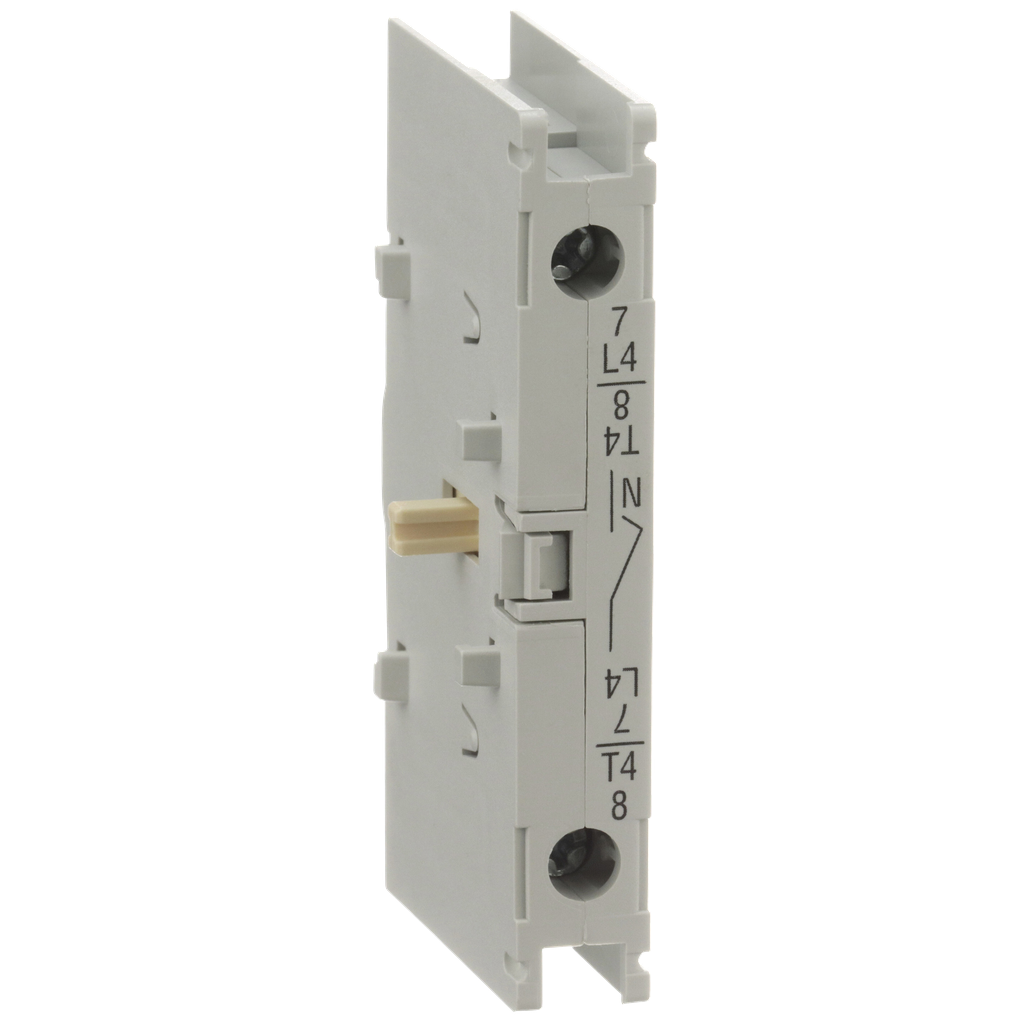

SQUARED VLS1P040R1E Disconnect swit

Manufacturer: Square-D / Schneider | Catalog # VLS1P040R1E | Cooper Electric Part # 1320032
$50.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1 or VLS3P040R1 DIN rail mount switch. This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side. This early make adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 40 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Fourth pole adder is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.

Technical Information

Amperage
40 Amp AC-21A UE: 400 V-40 Amp UE: 600 V UL 508-40 Amp AC-21A UE: 500 V-40 Amp AC-21A UE: 690 V-40 Amp AC-22A UE: 400 V-40 Amp AC-22A UE: 500 V-40 Amp AC-22A UE: 690 V-40 Amp AC-23A UE: 400 V-25 Amp AC-23A UE: 500 V-25 Amp AC-23A UE: 690 V
Applications
TeSys (TeSys VARIO LS) VLS3P
Contact Configuration
1 NO
Contact Rating
Early make
Interrupt Rating
60, 120, 320 AIC
Net Weight
0.04 kg
Number of Poles
1 Pole
Operating Temperature
-25-55 degrees C
Size
1.72 in
Standard
CSA C22.2 No 14,IEC 60947-3,UL 508
TC Connection
Power circuit screw clamp terminals 10-10 mm solid;power circuit screw clamp terminals 16-16 mm flexible - without cable end
Type
Additional pole
Voltage
690 Volt
Wattage
18.5 kW 400 Volt AC-23 Amps)-18.5 kW 500 Volt AC-23 Amps)-22 kW 690 Volt AC-23 Amps)

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VLS1P

General Product Info

12-Digit UPC
785901567929
Color
Gray
GTiN
03606481156693
Product UPC
78590156792
Weight
0.09 lb

Dimensions

Depth
43.6 mm
Height
78 mm
Width
12 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CULus,GL
Country of Origin
Italy
  • One add on block suitable for use with all eight ratings of disconnect switches, having simultaneuous operation with the switch poles. Includes versions with an early break NO contact.6 and 8 Pole Version
  • All VLS disconnect switches are certified by cCSAus and are UL Listed.Side Mount Add on Fourth Pole
  • Compact Size
  • A mechanical coupling system is available for the 16 to 125A disconnect switches for DIN rail mounting, to allow for 6 or 8 pole disconnectors, along with a mechanical interlock mechanism for the line changeover function.
  • Mounting and removal of the fourth pole and add on blocks are simple and quick operations with no need for tools.Certifications
  • The three pole 16 to 63A disconnect switches are made up of a single unit body at 36mm wide while those rated 63 to 125A are only 70mm wide.Accessory Flexibility
  • Simultaneous or early make contact operation of the fourth pole with respect to the disconnect switch polesAdd on Auxiliary Contacts
Compare
