HWDK HBL2613VBK LKG VAL CONN, 30A 1

Manufacturer: Hubbell Wiring Device | Catalog # HBL2613VBK | Cooper Electric Part # 13192
$71.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

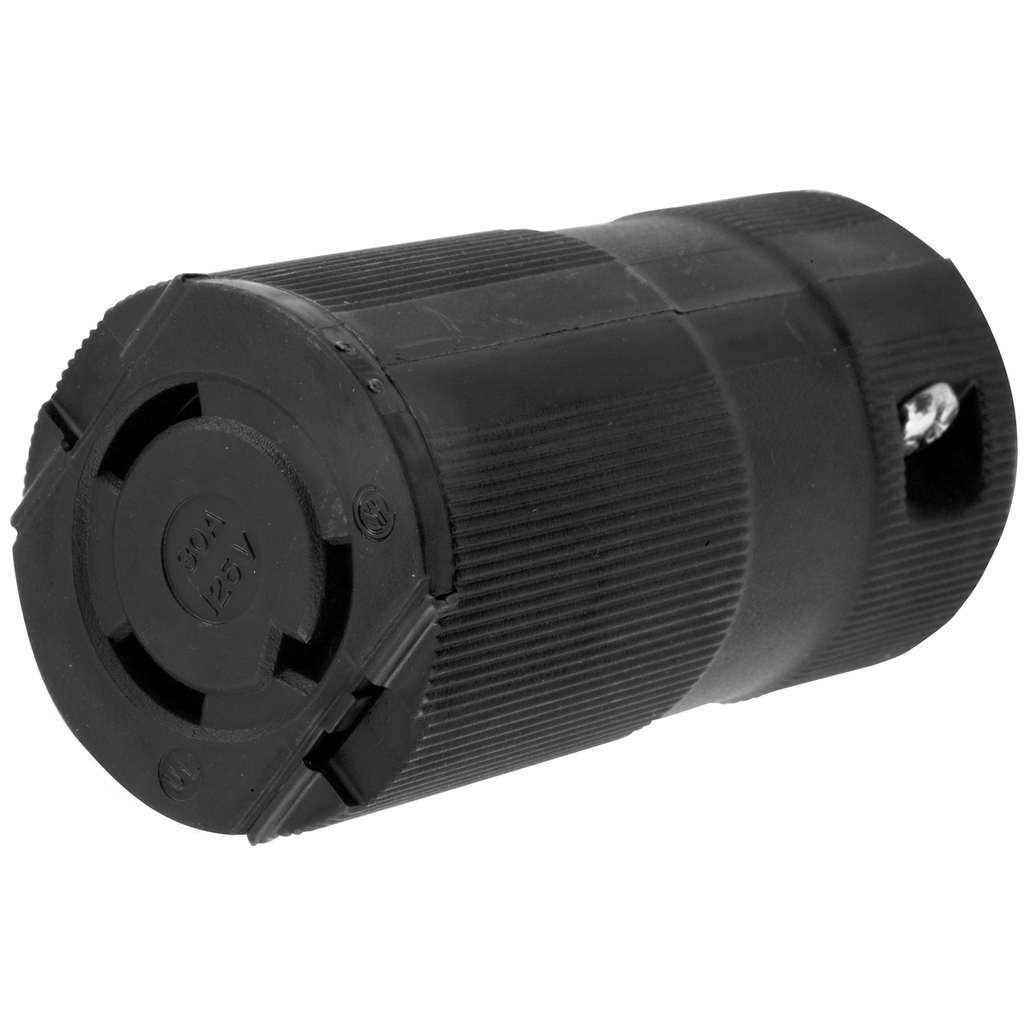

Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Black Nylon.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Grounding
Grounding
Material
Nylon
Mounting Type
Cord

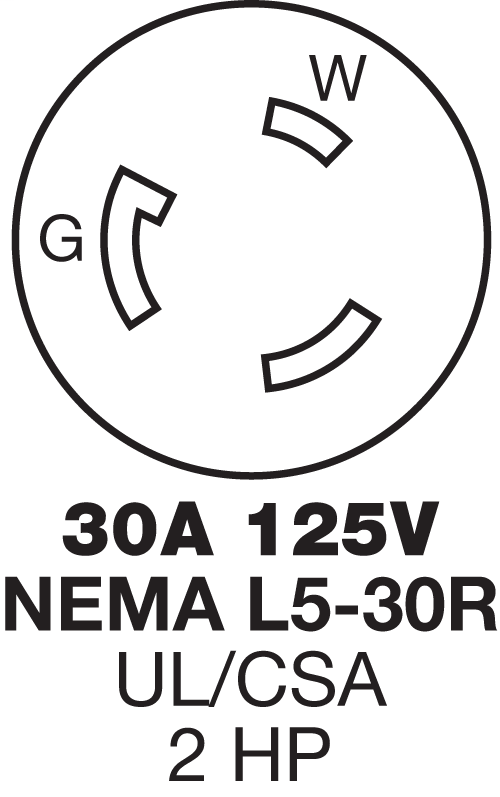

NEMA
L5-30R
Number of Conductors
3-Wire Grounding
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
14-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585043142
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585043142
Product UPC
78358504314
Weight
0.20 lb

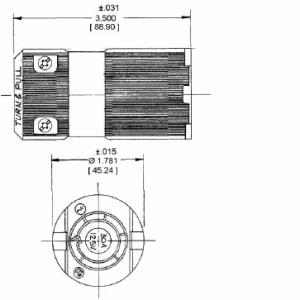

Dimensions

Height
3-1/2 Inch
Length
1.78 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
USA
Features
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Standard Product
