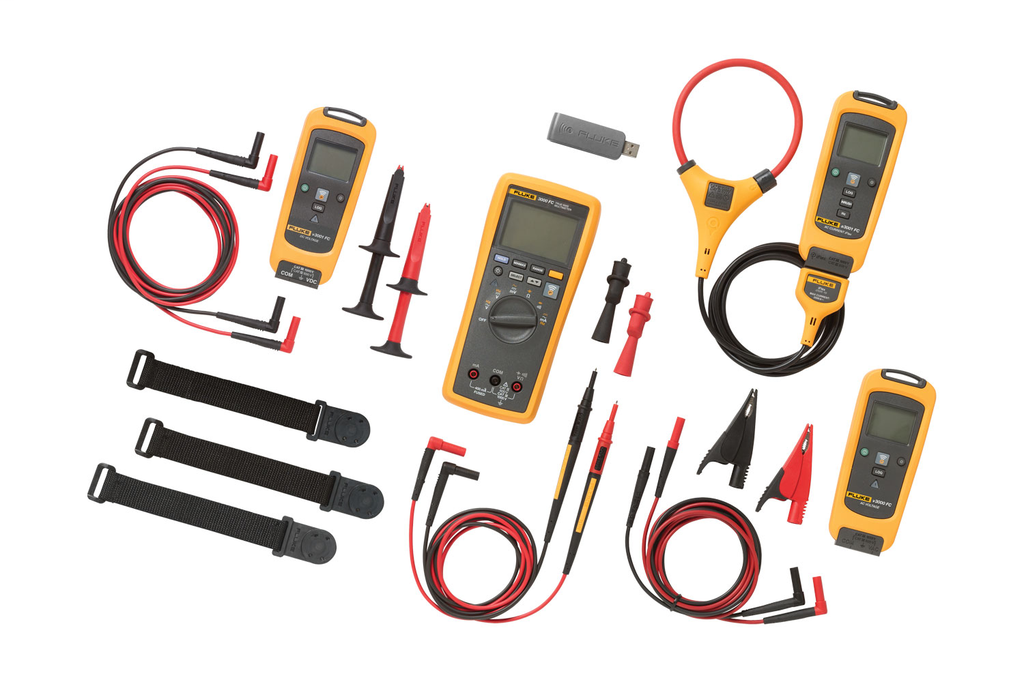

Product image for Fluke FLK-3000-FC-GM General Maintenance Kit, includes Multimeter, iFlex Clamp Module, AC Voltage Module, DC Voltage Module & Accessories
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Fluke FLK-3000-FC-GM General Maintenance Kit, includes Multimeter, iFlex Clamp Module, AC Voltage Module, DC Voltage Module & Accessories

Manufacturer: Fluke | Catalog # FLK-3000FC-GM | Cooper Electric Part # 1317464
$1,285.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
General maintenance system includes Fluke 3000 FC Series Wireless Multimeter, Fluke v3000 Voltage Module, Fluke v3001 Voltage Module, Fluke a3001 FC Wireless iFlex AC Current Module, TL224 Test Leads, TL222 Test Leads, TL175 Test Leads, AC285 Alligator Clips, AC220 Alligator Clips, AC175 Alligator Clips, iFlex i2500-10 Flexible Current Probe, Magnetic hanging strap.

Technical Information

Accuracy
3 %
Applications
General Maintenance Fluke Connect Kit
Battery Type
15 A
Jaw Opening
10 in
Operating Temperature
-10 To 50 degrees C
Safety Rated
CAT III 1000 V,CAT III 1000 V,CAT IV 600 V,CAT IV 600 V
Storage Temperature
-40 To 60 degrees C
Type
DMM
Voltage
600 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969724562
GTiN
00095969724562
Product UPC
09596972456
Weight
8 oz

Dimensions

Warranty Length
3 yr
Key Features
  • AC and DC voltage measurements to 1000V
  • AC and DC current with 0.01 mA resolution
  • Continuity, resistance, diode test, capacitance and frequency measurements
  • MIN/MAX recording
  • CAT III 1000 V, Cat IV 600 V; IP54
  • Measurements up to 1000 V true-RMS AC
  • Use as a standalone meter or as part of the system
  • A logging function for recording and saving up to 65,000 readings
  • Measure up to 1000 V DC
  • Use as a standalone meter or as part of the system
  • Use the logging function for recording and saving up to 65,000 readings
  • Measure up to 2500 A AC
  • Use as a standalone meter or as part of the system
  • Logging function for recording and saving up to 65,000 readings
  • Inrush function
  • The Fluke 3000 FC General Maintenance System provides measurement of all common electrical parameters
  • The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
  • The Fluke v3000 FC Wireless AC Voltage Module offers:
  • The Fluke v3001 FC Wireless DC Voltage Module lets you:
  • The Fluke a3001 FC Wireless iFlex® AC Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier:
Includes
  • Fluke 3000 FC Series Wireless Multimeter
  • Fluke v3000 Voltage Module
  • Fluke v3001 Voltage Module
  • Fluke a3001 FC Wireless iFlex AC Current Module
  • TL224 Test Leads
  • TL222 Test Leads
  • TL175 Test Leads
  • AC285 Alligator Clips
  • AC220 Alligator Clips
  • AC175 Alligator Clips
  • iFlex i2500-10 Flexible Current Probe
  • Magnetic hanging strap
Additional Features
  • 1. All AC voltage ranges are specified from 1% of range to 100% of range.2. Crest factor of ? 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V.3. For non-sinusoidial waveforms, add (2% of reading + 2% full scale) typical, for crest factor up to 3.4. Do not exceed 107 V-Hz.
Product Overview
  • The Fluke FC Wireless General Maintenance System lets you work on electrical panels faster, safer, easier
  • Connect the FC Wireless iFlex® AC Current Module to your test point, and view the results up to 20 meters away on the FC Wireless Digital Multimeter. Or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously.
  • Youll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.
  • From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
  • Now you can take readings on moving machinery, with only the measurement module in harms way.
  • Connect the FC Wireless iFlex® AC Current Module to your test point, and view the results up to 20 meters away on the FC Wireless Digital Multimeter. Or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously.
  • Youll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements.
  • From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.
  • Now you can take readings on moving machinery, with only the measurement module in harms way.
