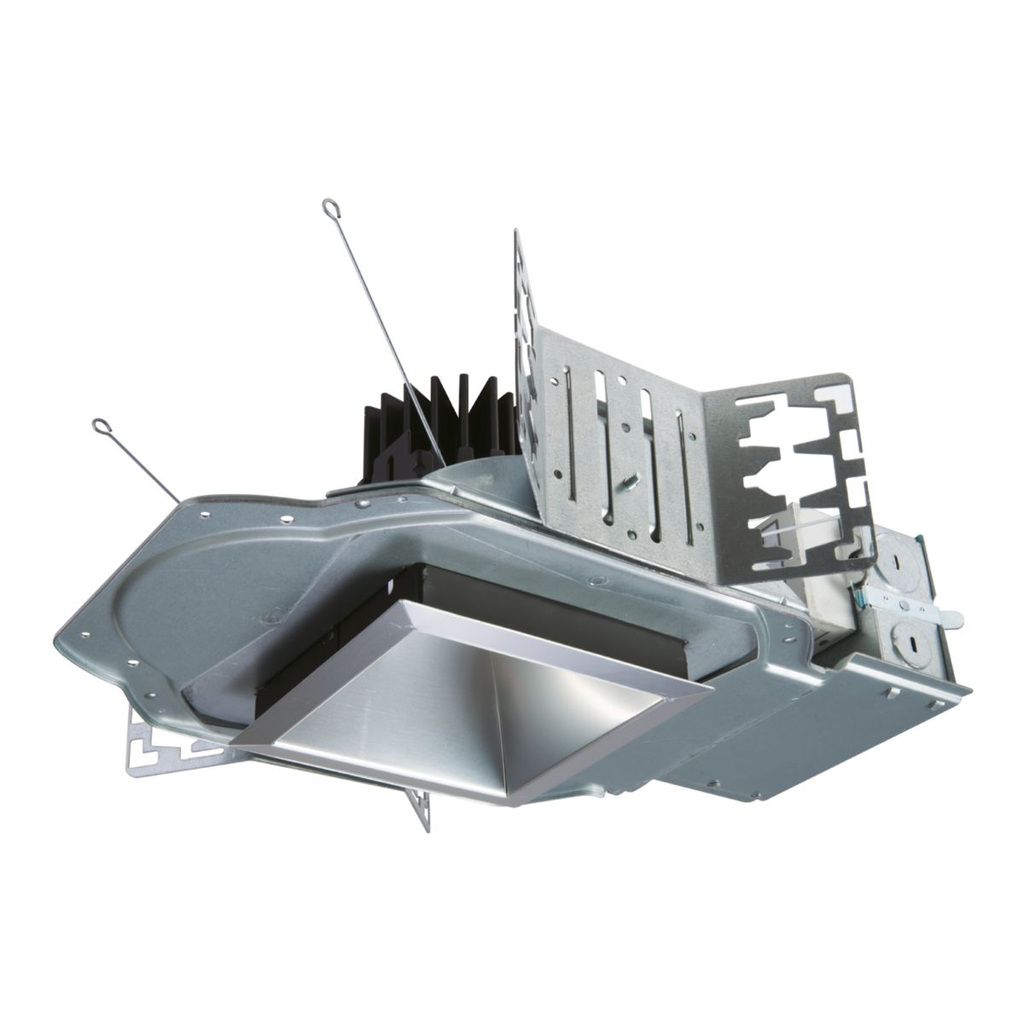

Product image for Portfolio LDSQ4B15D010 4" Square 1500 Lumen LED Housing, 120-277V, 0-10V 1 pct Driver

Email

Portfolio LDSQ4B15D010 4" Square 1500 Lumen LED Housing, 120-277V, 0-10V 1 pct Driver

Manufacturer: Cooper Lighting | Catalog # LDSQ4B15D010 | Cooper Electric Part # 1316112

$136.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
4 inch LED recessed new construction square downlight or lensed wall wash specially designed for use with either shallow or standard plenum height. Offered with anodized aluminum and die cast reflectors designed with two-stage system producing a smooth distribution with excellent light control and low aperture brightness. Offered in 1000-4000 lumens with color temperatures of 2400K, 2700K, 3000K, 3500K, 4000K, 5000K in 80, 90 or 97 CRI. Available with dim-to-warm technology - similar to halogen the 3000K LED warms smoothly to 1850K creating a warm rich glow within the space.

Technical Information

Amperage
0.13 Amp at 120 V and 0.06 Amp at 277 V
Applications
Lighting
Ballast Type
N/A
Color Rendering Index
90
Lamp Type
LED
Lumens
1,500 Lumen
Material
Steel
Mounting Type
Recessed
Number of Lamps
N/A
Style
(blank)
Type
LED
Voltage
120 Volt
Wattage
15.5 Watt

Manufacturer Information

Brand
Portfolio
Sub Brand
LDSQ4C

General Product Info

12-Digit UPC
080083787814
GTiN
00080083787814
Product UPC
08008378781
Weight
3.75 lb

Dimensions

Diameter
4 Inch
Height
14-5/8 Inch
Length
12-1/2 Inch
Width
4.5 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • 12.5 IN Length 4.5 IN Width 14.625 IN Height
  • Square new construction downlight or lensed wall wash, ENERGY STAR® qualified
  • 80 or 90 or 97 CRI
  • 2400K, 3000K, 3500K, 4000K and 5000K
  • D2W option - LED warms from 3000K to 1850K
  • Standard 0-10V driver dims to 1%
  • Cast or anodized aluminum reflectors
  • Optional shallow trim for 2x4 construction
  • Two-stage reflector system produces smooth beam
  • Easy disconnect for LED engine replacement and installation
