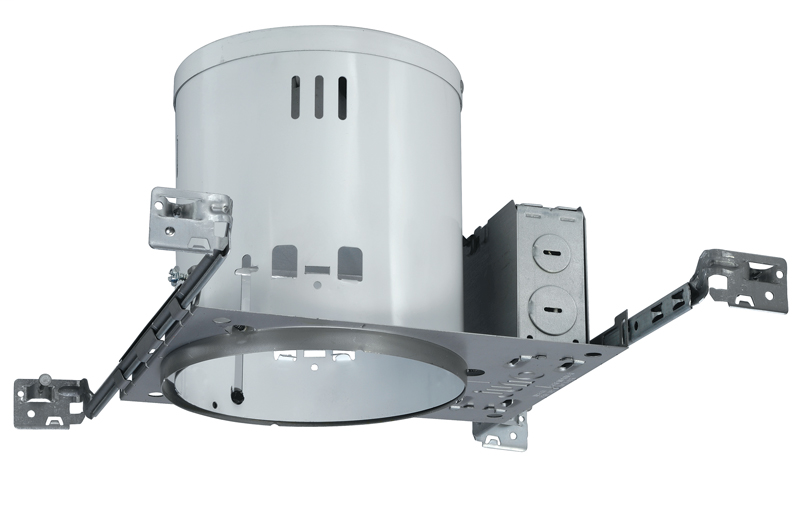

6" Incandescent New Construction Non-IC Housing

Manufacturer: Juno Lighting | Catalog # TC2 | Cooper Electric Part # 13157
$28.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Ideal where high brightness and good illumination levels are required such as retail, light industrial andWarehouses. Fixture can be assembled with snap together components and requires no tools. Available in one lamp ortwo lamp configuration. Heavy-duty channel, die-formed from Code-gauge steel. Sturdy channel cover secured by captive quarter-turn latch for easy access to wireway. Combination endplate/channel connector furnished with each fixture.

Technical Information

Aperture Size
6 in
Applications
Residential
Lamp Type
Incandescent
Lamp Wattage
150 W
Material
Steel
Mounting Type
Recessed
Number of Lamps
1
Type
Housing
Voltage
120 Volt

Manufacturer Information

Brand
Acuity Brands Lighting
Sub Brand
Juno

General Product Info

12-Digit UPC
661209700247
Color
Gray
Construction
New Construction
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
GTiN
00661209700247
Housing Material
Steel
Product UPC
66120970024
Shape
Round
Weight
4 lb

Dimensions

Depth
635 mm
Height
7-1/2 Inch
Length
13-1/8 Inch
Width
333.375 mm

Certifications and Compliance

Country of Origin
Mexico
Features
  • If installed where insulation is present, the insulation must be pulled back 3 from all sides of the TC housing.
  • TC2, recommended lamps: A19/A21/BR30/BR40/MR16/PAR16/PAR20/PAR30/PAR30L/PAR38/R20/R30
  • Housings include medium base porcelain socket with nickel-plated copper screw shell
  • UL Listed, CSA certified to US and Canadian standards, Listed for damp locations
  • Standard 120 volts used in most residential applications
  • Does not include light source
  • 22-gauge die-formed galvanized steel mounting frame
  • Emergency battery back-up not included in this version
  • Manufacturer limited warranty
  • Dimensions: Height 7-1/2-in. x Width 7-1/2-in. x Full Width 13-1/2-in. x Length 9-1/2-in. x Full Length 13-1/8-in.
Standards
  • CSA
  • UL
Applications
  • Residential
